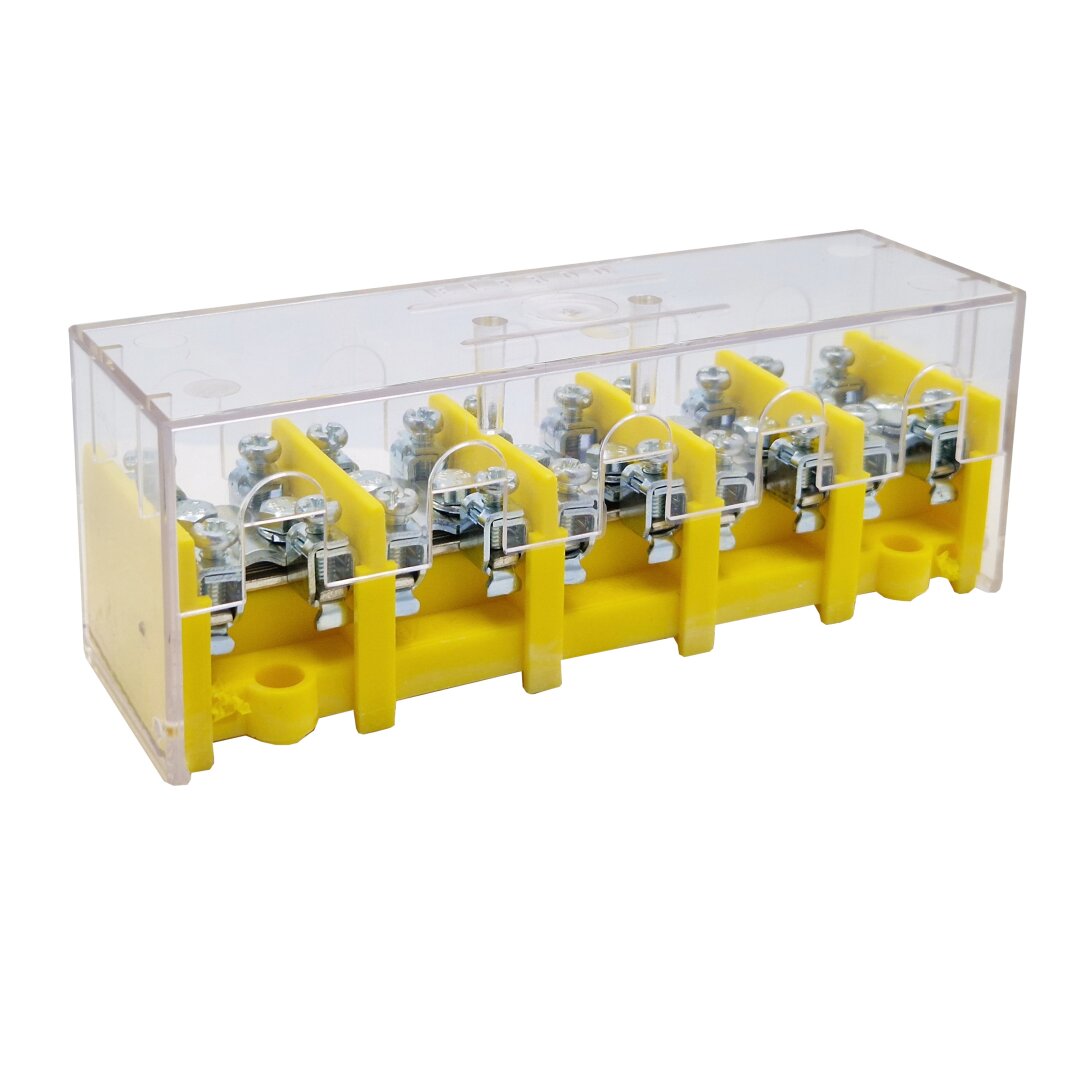

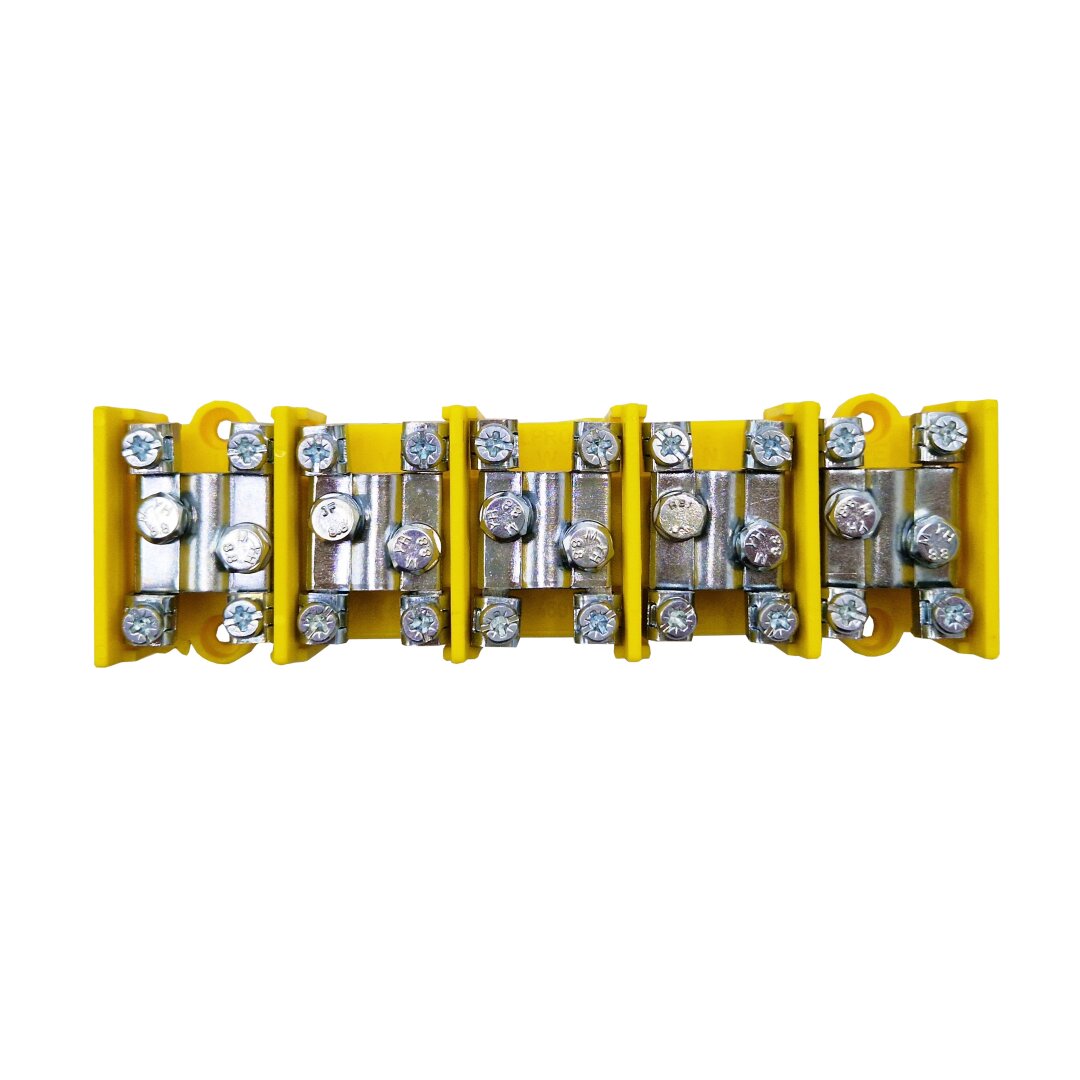

Branching terminal block DTB (5x)25/(5x)4x10 yellow
Manufacturer Code: UC52510.26
13,42 € without VAT 16,23 € with VAT
Branching terminal block DTB (5x)25/(5x)4x10 yellow
| Rated cross-section [mm²] | 25 (input) / 10 (output) |
| Connection range [mm²] | 0,75 ÷ 25 |
| Rated current [A] | 101 (input) / 57 (output) |
| Rated voltage Ui [V] | 450 |
| Tightening torque [Nm] | 2 (continuous line) |
| Tightening torque [Nm] | 1,2 (branching) |
| Assembly method | On the plate |
| IP code | 20 |
| Operating temperature [°C] | -25 ÷ +100 |
| Number of clamping points per level | 5 for 1 pole |
| Number of levels | 1 |
| Number of poles | 5 |
| End cover plate required | NO |
| Testing | IEC 60998-2-1 |
| Dimensions [mm] (width / height / length) | 47 / 56 / 148 |
| Packing [pcs] | 1 |
| Conductor cross-section – Input [mm²] | 1 x 6 ÷ 25 (Solid conductor) |
| Conductor cross-section – Input [mm²] | 1 x 6 ÷ 16 (Flexible conductor) |
| Conductor cross-section – Output [mm²] | 4 x 0,75 ÷ 10 (Solid conductor) |
| Conductor cross-section – Output [mm²] | 4 / 0,75 ÷ 6 (Flexible conductor) |
| Stripping length (Input / Output) [mm] | 21 / 10 |
