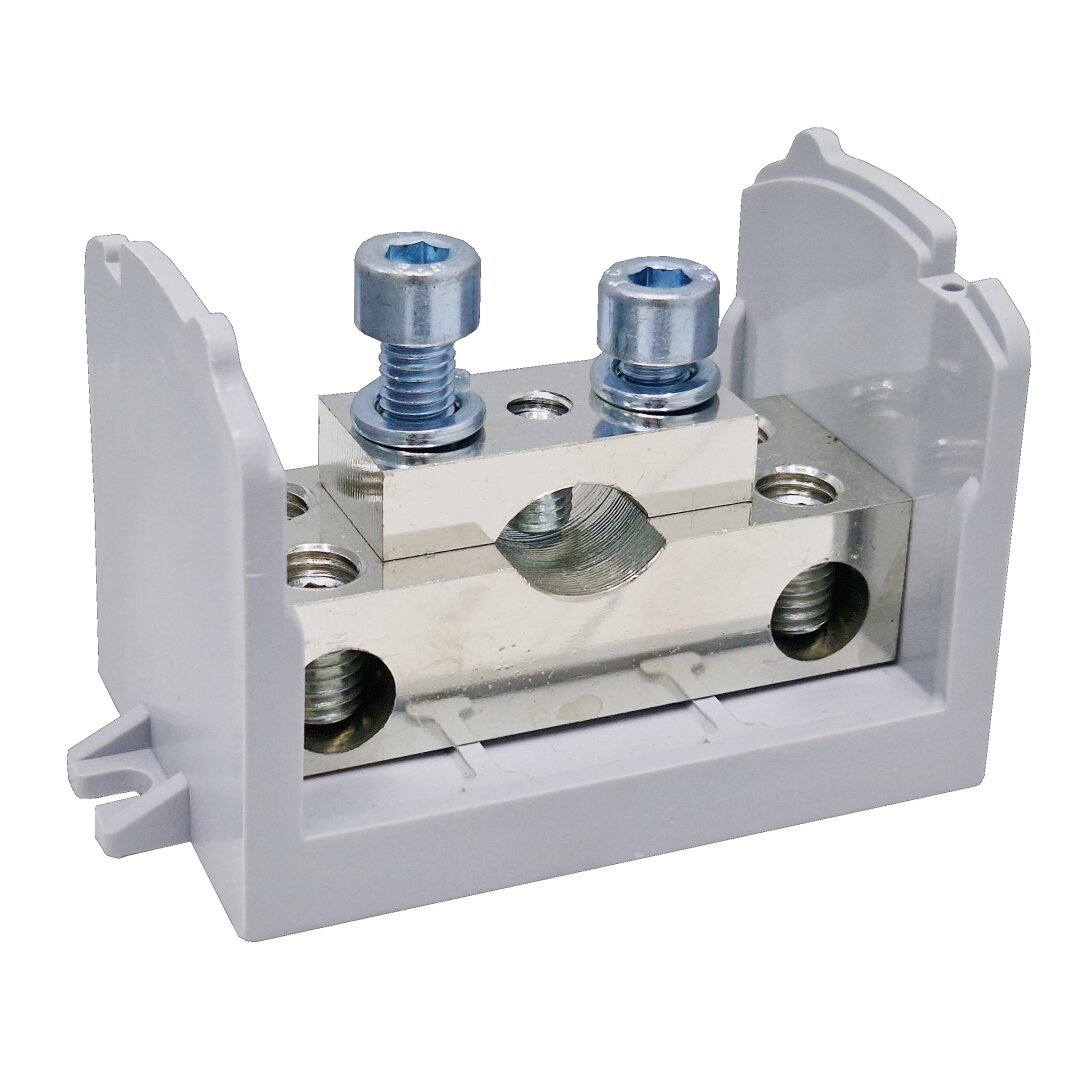

Branching terminal block DTB 240/4x50 grey, without cover
Manufacturer Code: UC24050
31,35 € without VAT 37,93 € with VAT
Branching terminal block DTB 240/4x50 grey, without cover
| Rated cross-section [mm²] | 240 (Input) / 50 (Output) |
| Connection range [mm²] | 10 ÷ 240 |
| Rated current [A] | 415 (Input) / 160 (Output) |
| Short-time withstand current [A] | 28800 |
| Rated voltage Ui [V] | 690 |
| Tightening torque [Nm] | 15 Nm (2xM8 screw) - main line |
| Tightening torque [Nm] | 6 Nm (locking screw M8) - securing the main line |
| Tightening torque [Nm] | 10 Nm (M10 screw) - branch line |
| Tool | Inbus |
| Assembly method | On the plate |
| IP code | 10 |
| Operating temperature [°C] | -25 ÷ +100 |
| Number of clamping points per level | 5 |
| Number of levels | 1 |
| End cover plate required | NO |
| Testing | IEC 60998-2-1 |
| Dimensions [mm] (width / height / length) | 103 / 61 / 57 |
| Packing [pcs] | 1 |
| Conductor cross-section – Input [mm²] | 1 x 70 ÷ 240 (Solid conductor) |
| Conductor cross-section – Input [mm²] | 1 x 70 ÷ 150 (Finely stranded conductor) |
| Conductor cross-section – Output [mm²] | 4 x 10 ÷ 50 (Solid conductor) |
| Conductor cross-section – Output [mm²] | 4 x 10 ÷ 35 (Finely stranded conductor) |
| Stripping length (Input / Output) [mm] | 30 / 15 |
