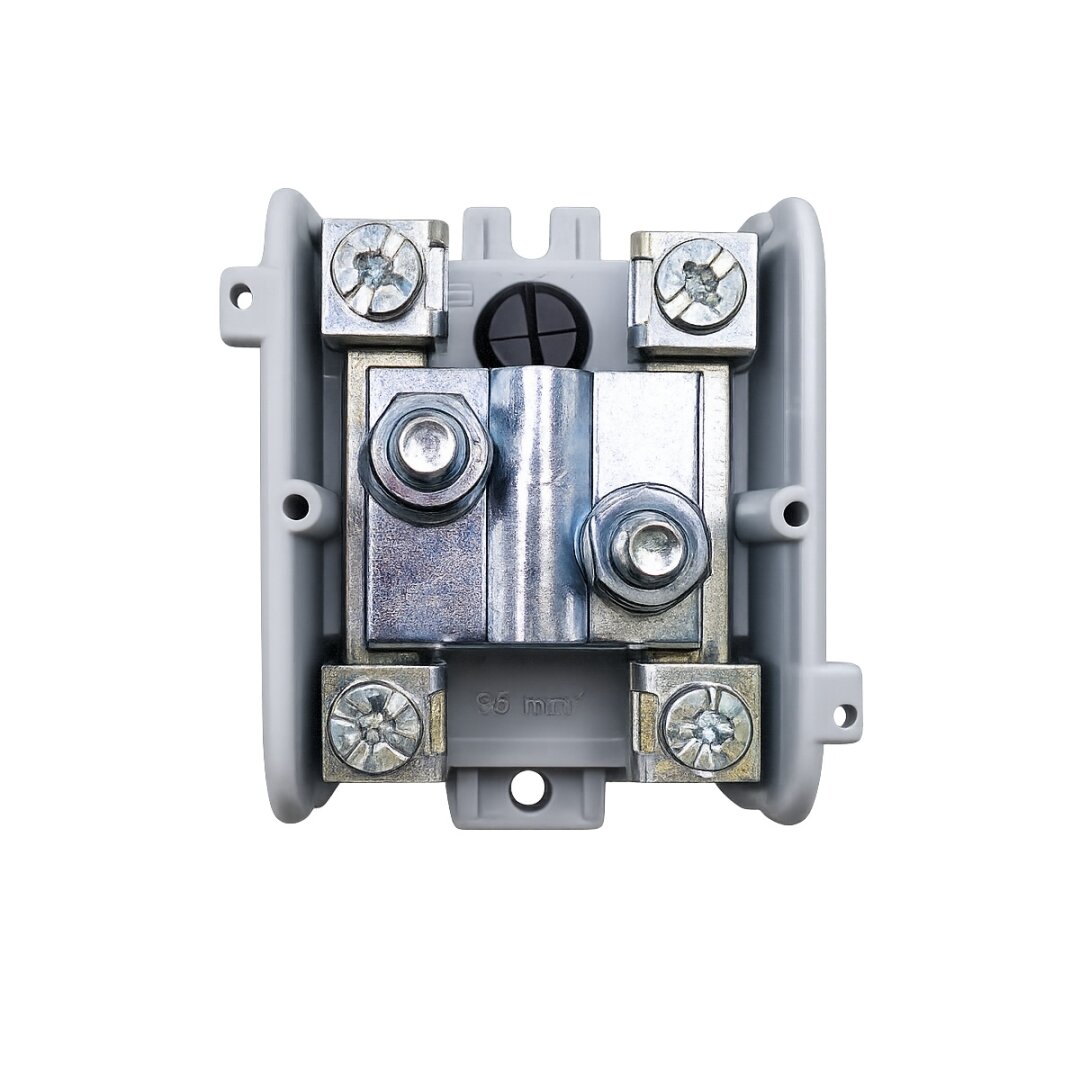

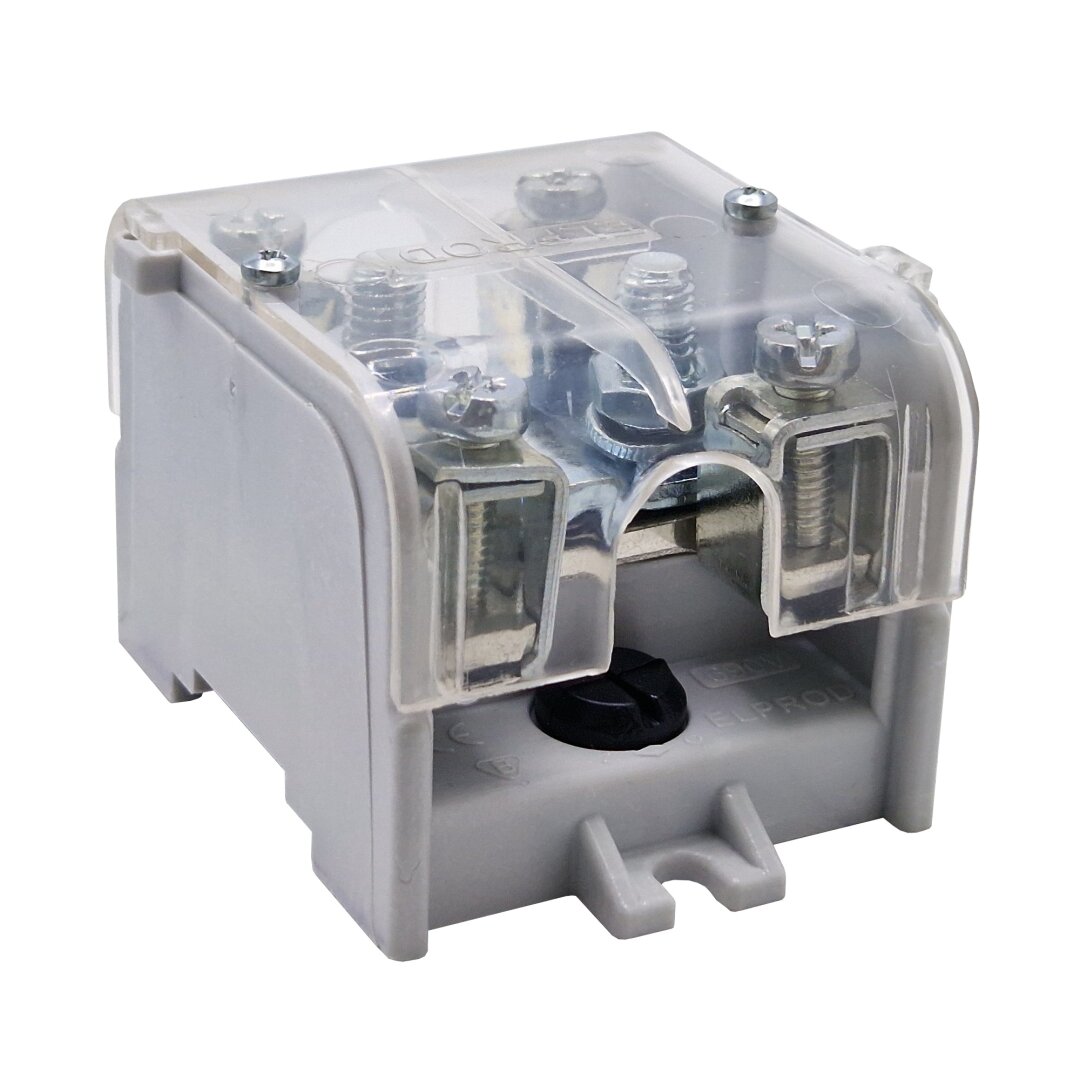

Branching terminal blocks DTB 95/4x35
9,34 € without VAT 11,30 € with VAT
Branching terminal blocks DTB 95/4x35
| Rated cross-section [mm²] | 95 (input) / 35 (output) |
| Connection range [mm²] | 4 ÷ 95 |
| Rated current [A] | 232 (input) / 125 (output) |
| Rated voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp [kV] | 6 |
| Tightening torque [Nm] | 6 (continuous line) |
| Tightening torque [Nm] | 2,5 (branching) |
| Assembly method | TH 35 / on the plate |
| IP code | 20 |
| Operating temperature [°C] | -25 ÷ +100 |
| Number of clamping points per level | 5 |
| Number of levels | 1 |
| Number of poles | 1 |
| End cover plate required | NO |
| Testing | IEC 60998-2-1 |
| Dimensions [mm] (width / height / length) | 64 / 52 / 81 |
| Packing [pcs] | 1 |
| Conductor cross-section – Input [mm²] | 1 x 25 ÷ 95 (solid conductor) |
| Conductor cross-section – Input [mm²] | 1 x 25 ÷ 70 (flexible conductor) |
| Conductor cross-section – Output [mm²] | 4 x 4 ÷ 35 (solid conductor) |
| Conductor cross-section – Output [mm²] | 4 / 4 ÷ 25 (flexible conductor) |
| Stripping length (Input / Output) [mm] | 27 / 18 |
