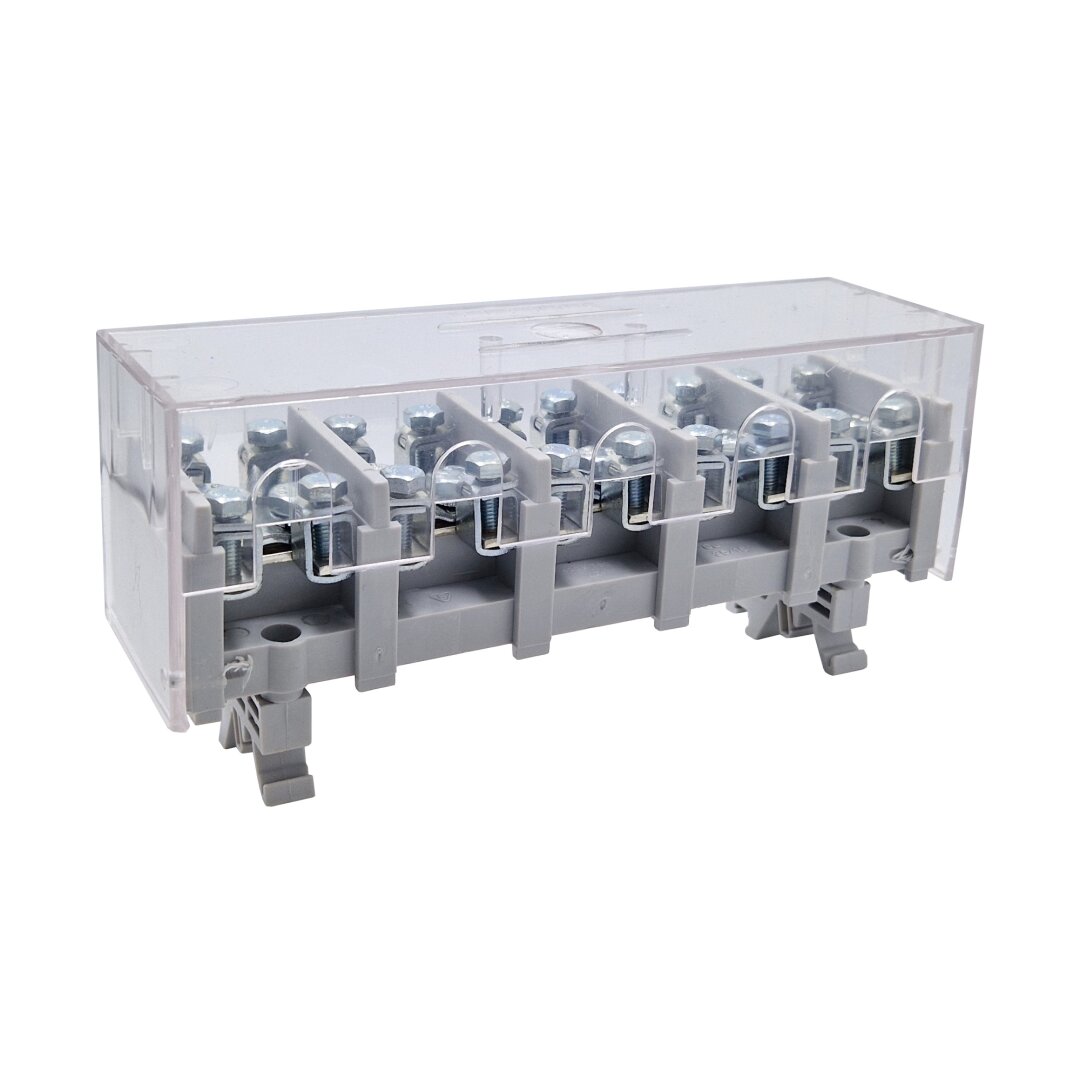

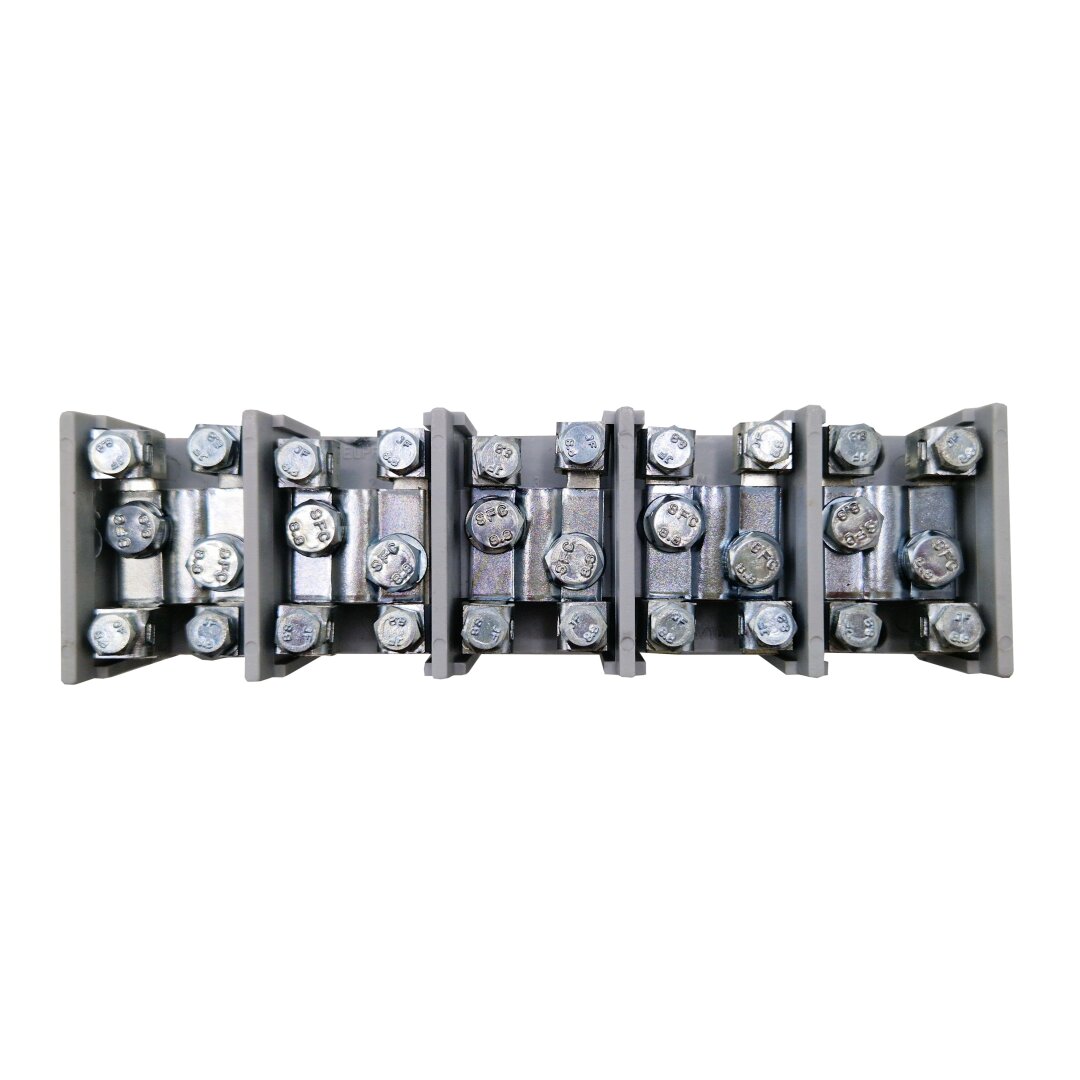

Branching terminal block DTB (5x)35/(5x)4x16 grey on TH rail
Manufacturer Code: UC535TH.21
17,01 € without VAT 20,59 € with VAT
Branching terminal block DTB (5x)35/(5x)4x16 grey on TH rail
| Rated cross-section [mm²] | 35 (input) / 16 (output) |
| Connection range [mm²] | 2,5 ÷ 35 |
| Rated current [A] | 125 (input) / 76 (output) |
| Rated voltage Ui [V] | 450 |
| Tightening torque [Nm] | 5 (continuous line) |
| Tightening torque [Nm] | 2 (branching) |
| Assembly method | TH 35 (possibility of using PM-35 mounting bases) |
| IP code | 20 |
| Operating temperature [°C] | -25 ÷ +100 |
| Number of clamping points per level | 5 for 1 pole |
| Number of levels | 1 |
| Number of poles | 5 |
| End cover plate required | NO |
| Testing | IEC 60998-2-1 |
| Dimensions [mm] (width / height / length) | 49 / 86 / 174 |
| Conductor cross-section – Input [mm²] | 1 x 6 ÷ 35 (Solid conductor) |
| Conductor cross-section – Input [mm²] | 1 x 6 ÷ 25 (Flexible conductor) |
| Conductor cross-section – Output [mm²] | 4 x 2,5 ÷ 16 (Solid conductor) |
| Conductor cross-section – Output [mm²] | 4 x 2,5 ÷ 10 (Flexible conductor) |
