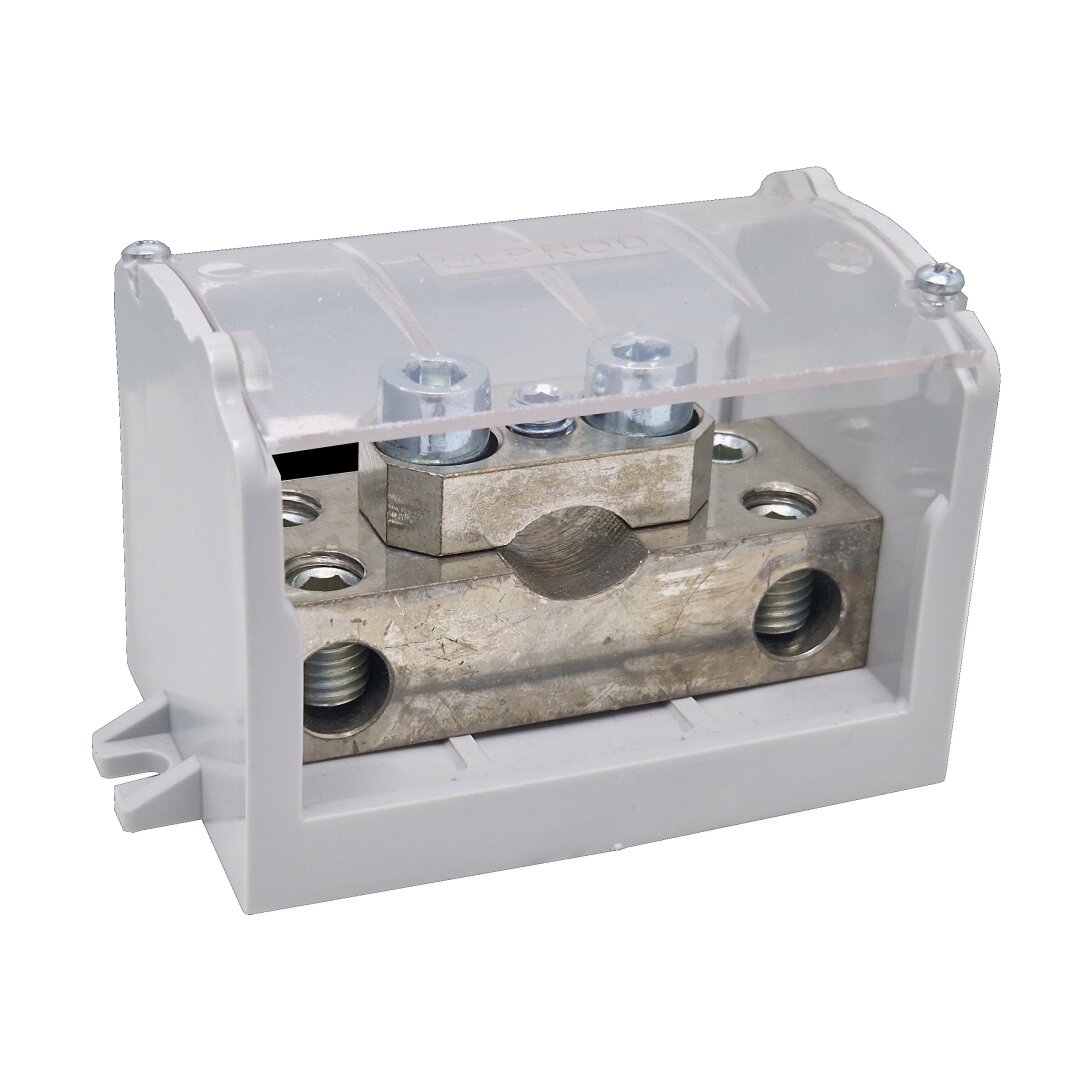

Branching terminal block DTB 240/4x50 grey with cover
Manufacturer Code: UC24050K
33,87 € without VAT 40,99 € with VAT
Branching terminal block DTB 240/4x50 grey with cover
| Rated cross-section [mm²] | 240 (input) / 50 (output) |
| Rated current [A] | 415 (input) / 160 (output) |
| Rated voltage Ui [V] | 690 |
| Tightening torque [Nm] | 18 (10 ÷ 50 mm²) |
| Tightening torque [Nm] | 24 (70 ÷ 240 mm²) |
| Tool | Inbus |
| Assembly method | On the plate |
| IP code | 10 |
| Operating temperature [°C] | -25 ÷ +100 |
| Number of clamping points per level | 5 |
| Number of levels | 1 |
| Number of poles | 1 |
| End cover plate required | NE |
| Dimensions [mm] (width / height / length) | 57 / 61 / 103 |
| Packing [pcs] | 1 |
| Conductor cross-section – Input [mm²] | 1 x 70 ÷ 240 (solid conductor) |
| Conductor cross-section – Input [mm²] | 1 x 70 ÷ 150 (flexible conductor) |
| Conductor cross-section – Output [mm²] | 4 x 10 ÷ 50 (solid conductor) |
| Conductor cross-section – Output [mm²] | 4 x 10 ÷ 35 (flexible conductor) |
| Stripping length (Input / Output) [mm] | 30 / 15 |
