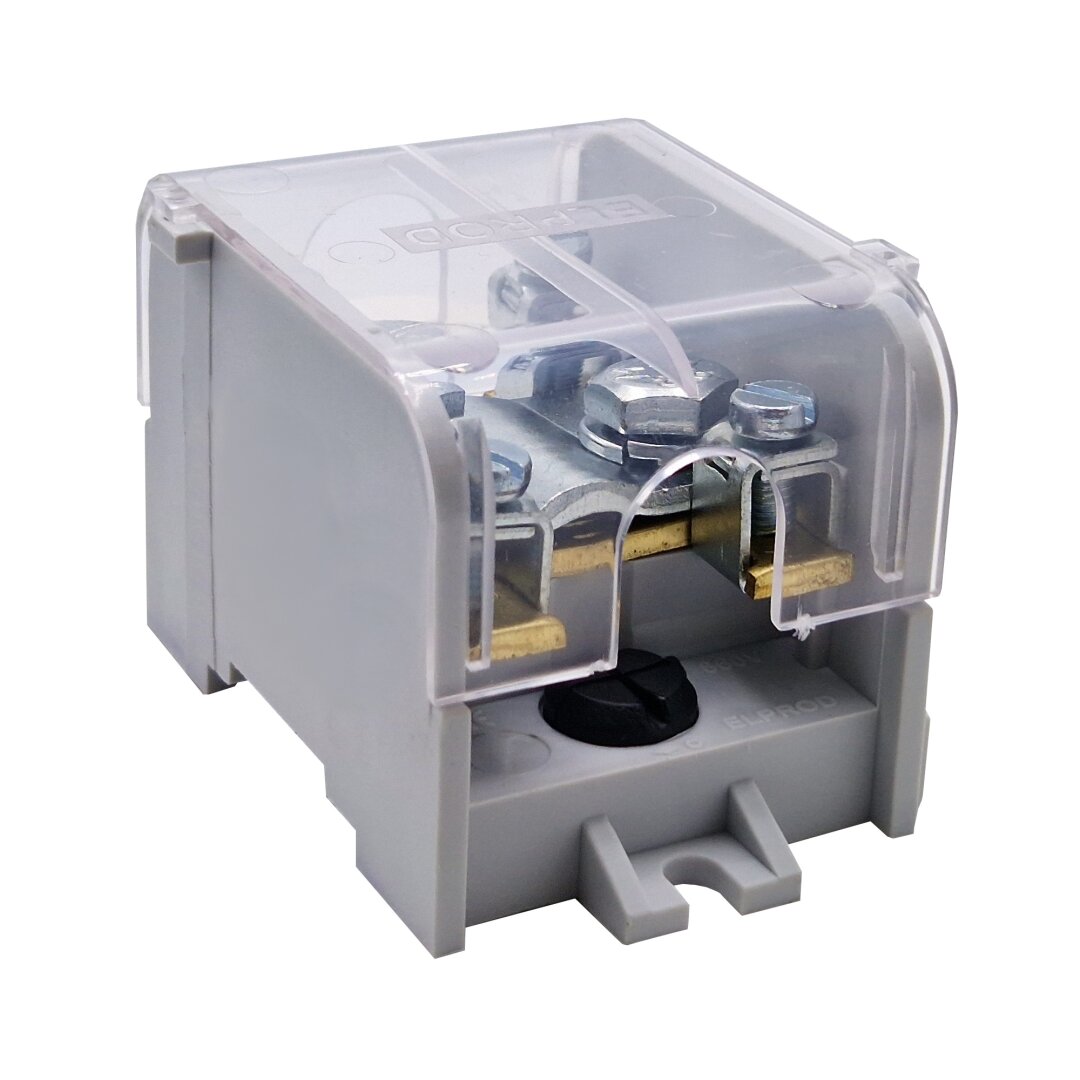

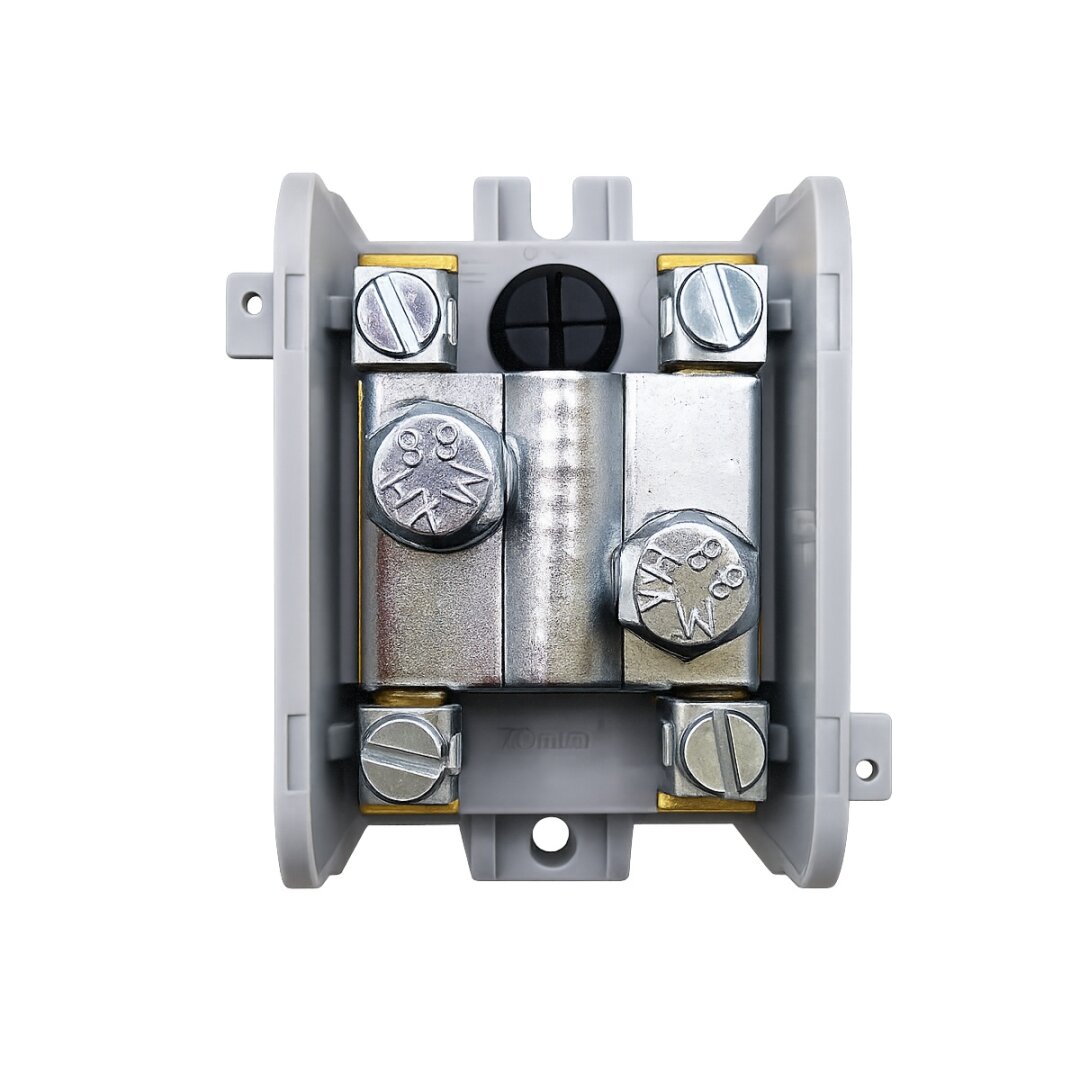

Branching terminal blocks DTB 70/4x16
6,40 € without VAT 7,75 € with VAT
Branching terminal blocks DTB 70/4x16
| Rated cross-section [mm²] | 70 (input) / 16 (output) |
| Connection range [mm²] | 2,5 ÷ 70 |
| Rated current [A] | 192 (input) / 76 (output) |
| Rated voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp [kV] | 6 |
| Tightening torque [Nm] | 6 (continuous line) |
| Tightening torque [Nm] | 1,2 (branching) |
| Assembly method | On the plate / TH 35 |
| IP code | 20 |
| Operating temperature [°C] | -25 ÷ +100 |
| Number of clamping points per level | 5 |
| Number of levels | 1 |
| Number of poles | 1 |
| End cover plate required | NO |
| Testing | IEC 60998-2-1 |
| Dimensions [mm] (width / height / length) | 56 / 51 / 79 |
| Packing [pcs] | 1 |
| Conductor cross-section – Input [mm²] | 1 x 16 ÷ 70 (solid conductor) |
| Conductor cross-section – Input [mm²] | 1 x 16 ÷ 50 (flexible conductor) |
| Conductor cross-section – Output [mm²] | 4 x 2,5 ÷ 16 (solid conductor) |
| Conductor cross-section – Output [mm²] | 4 / 2,5 ÷ 10 (flexible conductor) |
| Stripping length (Input / Output) [mm] | 27 / 17 |
