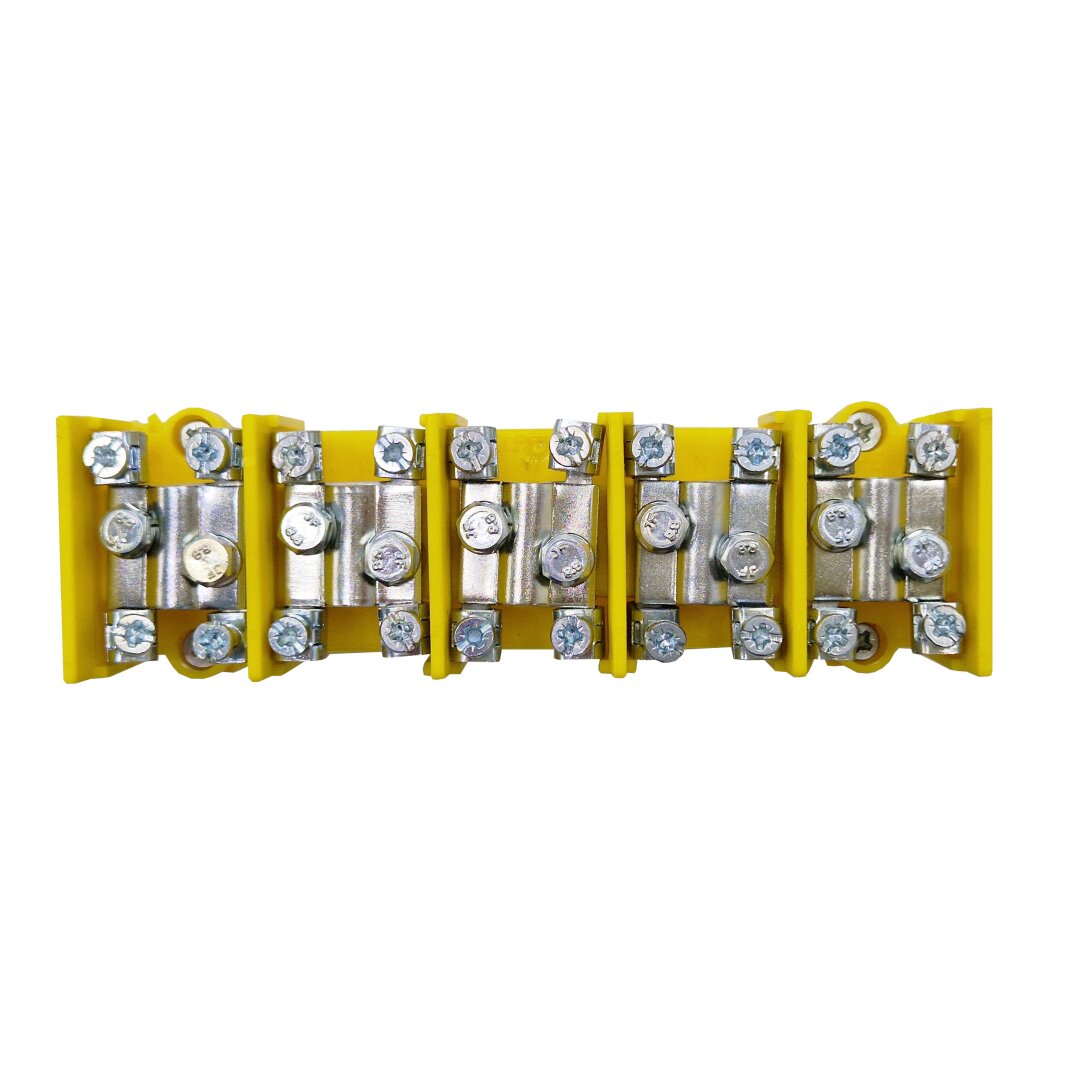

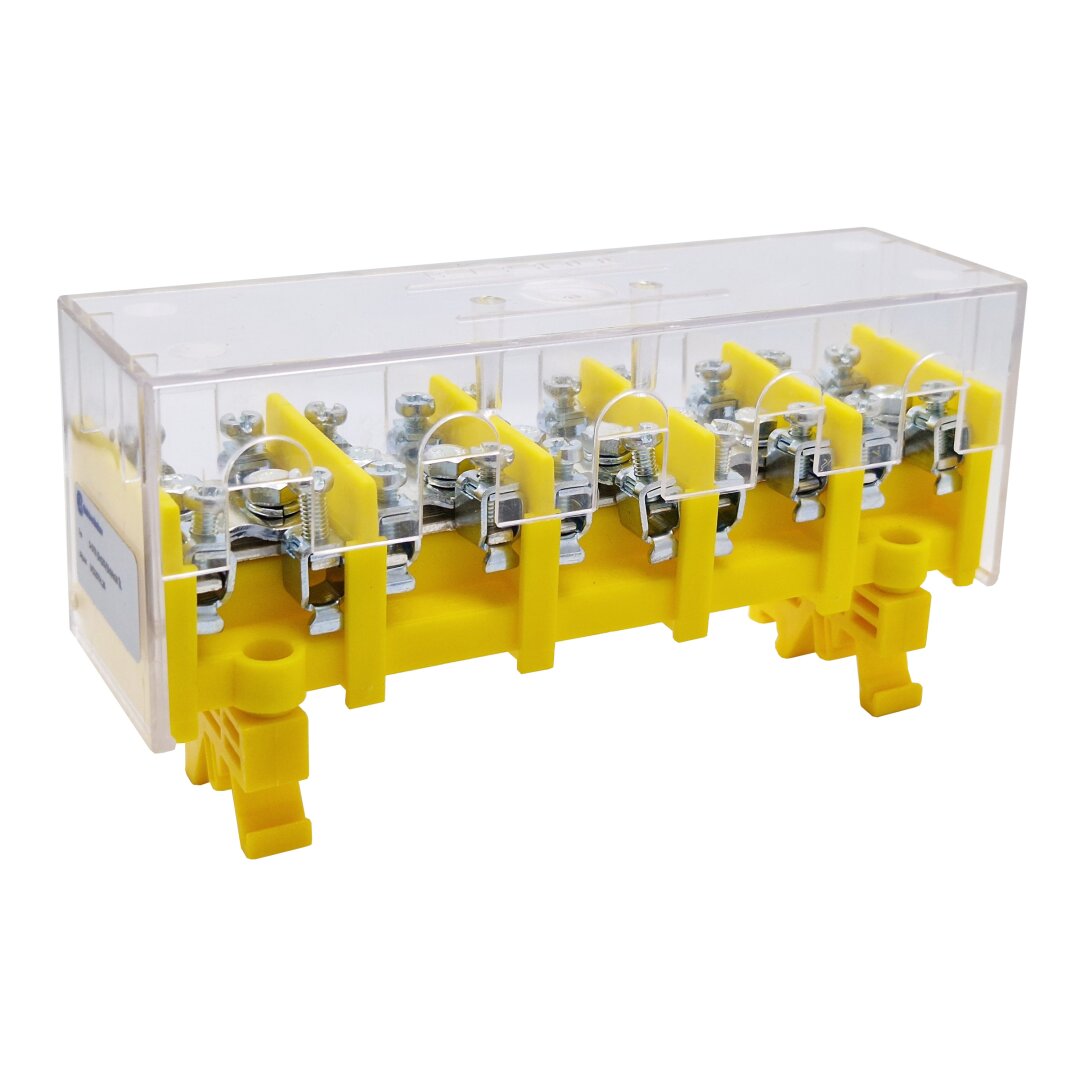

Branching terminal block DTB (5x)25/(5x)4x10 yellow on TH rail
Manufacturer Code: UC525TH.26
14,08 € without VAT 17,03 € with VAT
Branching terminal block DTB (5x)25/(5x)4x10 yellow on TH rail
| Rated cross-section [mm²] | 25 (input) / 10 (output) |
| Connection range [mm²] | 0,75 ÷ 25 |
| Rated current [A] | 101 (input) / 57 (output) |
| Rated voltage Ui [V] | 450 |
| Tightening torque [Nm] | 2 (continuous line) |
| Tightening torque [Nm] | 1,2 (branching) |
| Assembly method | TH 35 (possibility of using PM-35 mounting bases) |
| IP code | 20 |
| Operating temperature [°C] | -25 ÷ +100 |
| Number of clamping points per level | 5 for 1 pole |
| Number of levels | 1 |
| Number of poles | 5 |
| End cover plate required | NO |
| Testing | IEC 60998-2-1 |
| Dimensions [mm] (width / height / length) | 47 / 80 / 148 |
| Conductor cross-section – Input [mm²] | 1 x 6 ÷ 25 (Solid conductor) |
| Conductor cross-section – Input [mm²] | 1 x 6 ÷ 16 (Flexible conductor) |
| Conductor cross-section – Output [mm²] | 4 x 0,75 ÷ 10 (Solid conductor) |
| Conductor cross-section – Output [mm²] | 4 / 0,75 ÷ 6 (Flexible conductor) |
