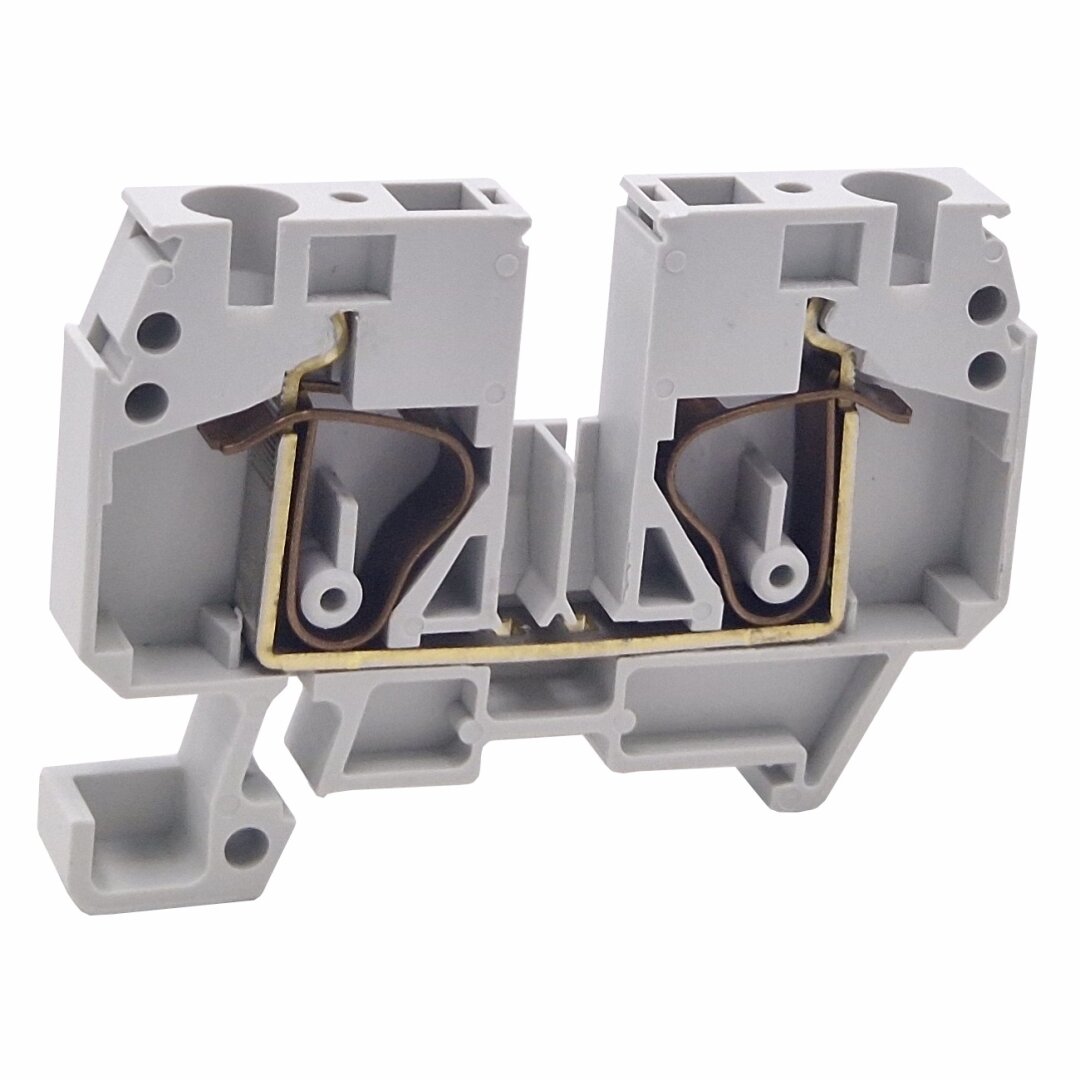

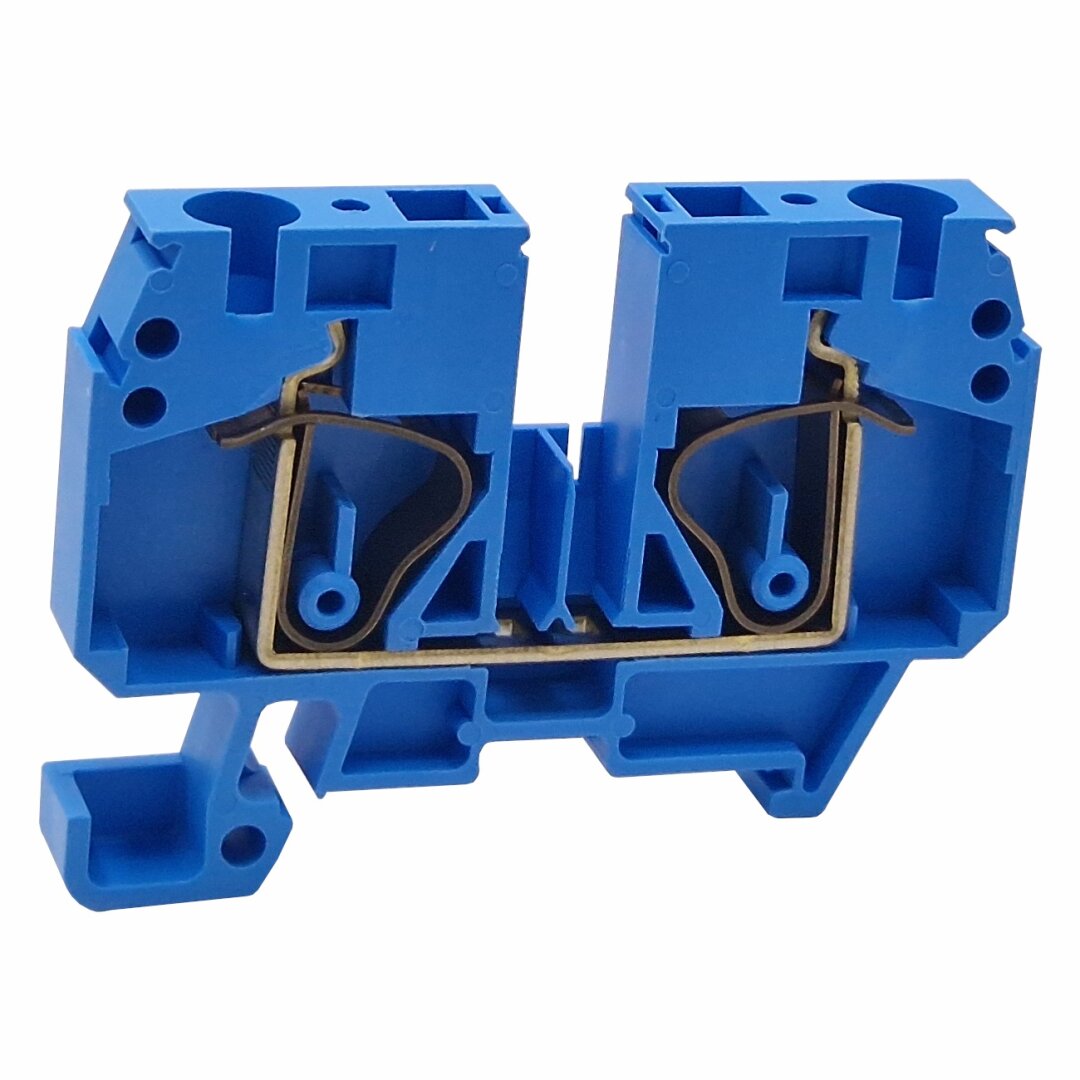

Screwless terminal blocks EURO Q 6
1,56 € without VAT 1,88 € with VAT
Screwless terminal blocks EURO Q 6
| Rated cross-section [mm²] | 6 |
| Rated current [A] | 41 |
| Short-time withstand current Uimp [A] | 720 |
| Rated voltage Ui [V] | 630 |
| Rated impulse withstand voltage Uimp [kV] | 3,5 |
| Assembly method | TH 35 |
| IP code | 20 |
| Operating temperature [°C] | -20 - +55 |
| Number of clamping points per level | 2 |
| Number of levels | 1 |
| End cover plate required | YES |
| Testing | EN 60947-7-1 |
| Dimensions [mm] (width / height / length) | 8 / 38,5 / 63 |
| Weight [g] | 16 |
| Packing [pcs] | 50 |
| Solid conductor [mm²] | 2,5 - 6 |
| Finely stranded conductor [mm²] | 2,5 - 6 |
| Stripping length [mm] | 18 |
