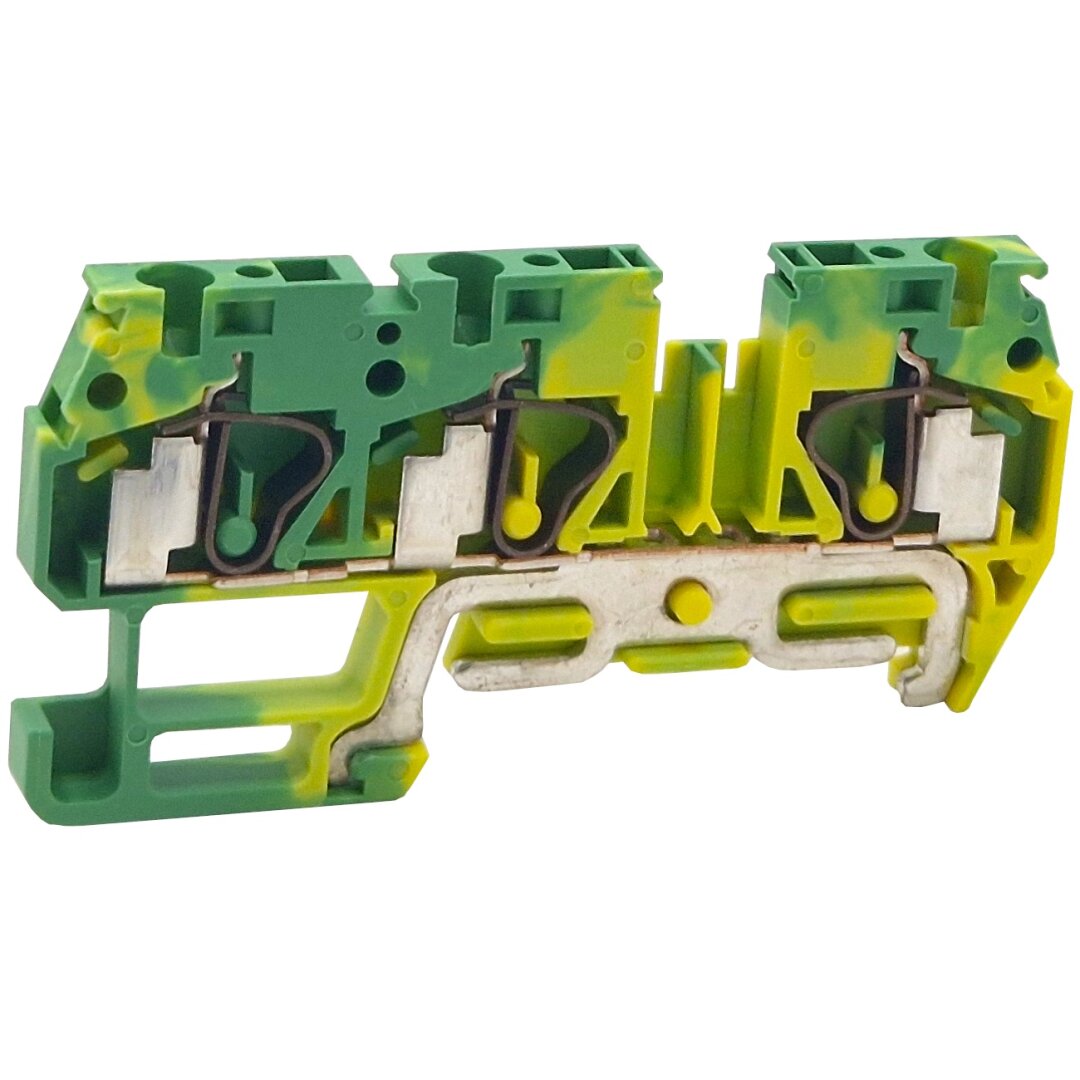

Screwless terminal block EURO PE Q2,5/1+2
Manufacturer Code: A223232
2,95 € without VAT 3,57 € with VAT
Screwless terminal block EURO PE Q2,5/1+2
Rated cross-section [mm²] | 2,5 |
Rated current [A] | 300 |
Rated voltage Ui [V] | 630 |
Assembly method | TH 35 |
IP code | 20 |
Operating temperature [°C] | -20 - +55 |
Number of clamping points per level | 3 |
Number of levels | 1 |
End cover plate required | YES |
Testing | EN 60947-7-1 |
Dimensions [mm] (width / height / length) | 5 / 28,5 / 68,5 |
Weight [g] | 12 |
Packing [pcs] | 25 |
Solid conductor [mm²] | 0,5 - 2,5 |
Finely stranded conductor [mm²] | 0,5 - 2,5 |
Stripping length [mm] | 12 |
