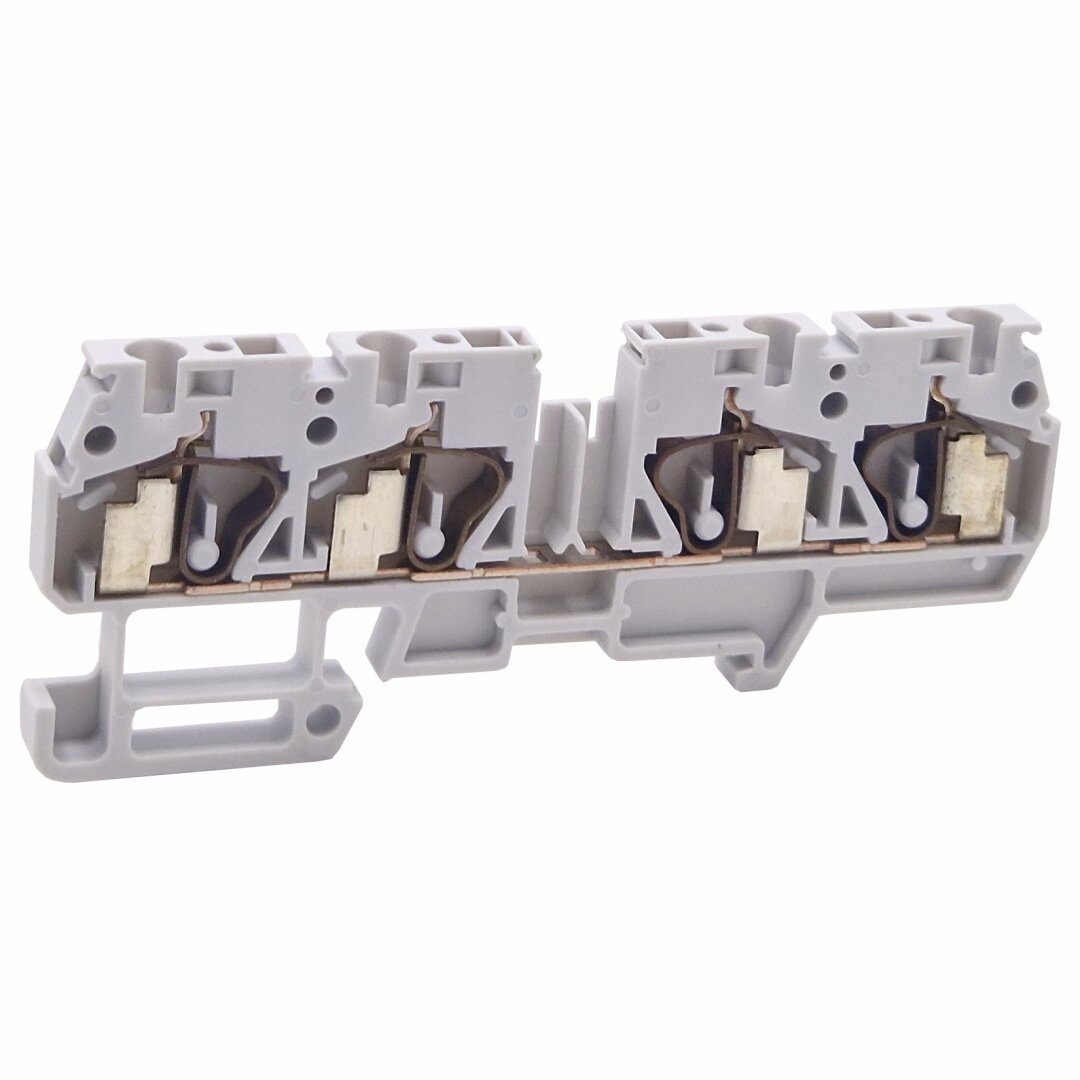

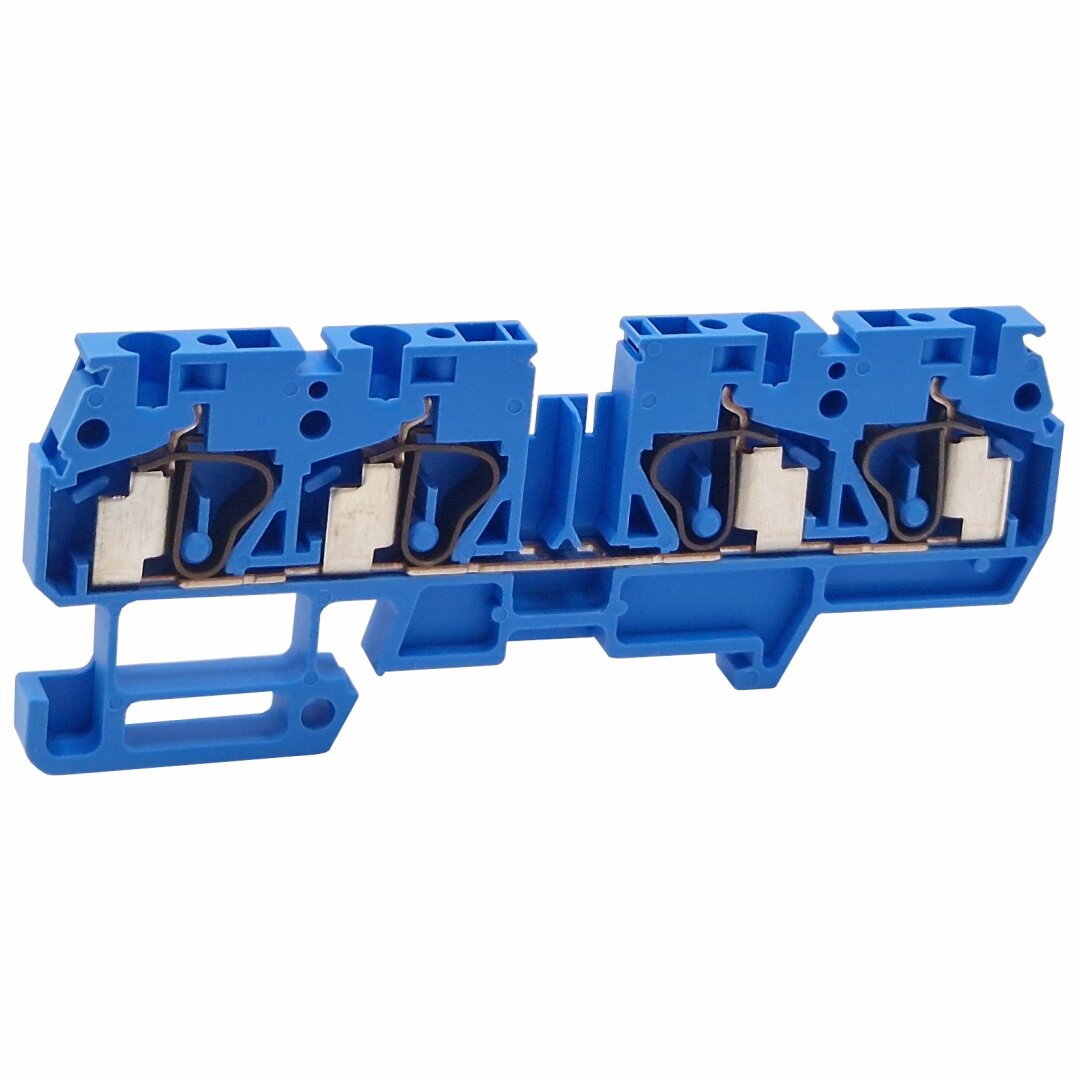

Screwless terminal blocks EURO Q2,5/2+2
1,78 € without VAT 2,15 € with VAT
Screwless terminal blocks EURO Q2,5/2+2
| Rated cross-section [mm²] | 2,5 |
| Rated current [A] | 24 |
| Short-time withstand current Uimp [A] | 300 |
| Rated voltage Ui [V] | 630 |
| Rated impulse withstand voltage Uimp [kV] | 3,5 |
| Assembly method | TH 35 |
| IP code | 20 |
| Operating temperature [°C] | -20 - +55 |
| Number of clamping points per level | 4 |
| Number of levels | 1 |
| End cover plate required | YES |
| Testing | EN 60947-7-1 |
| Dimensions [mm] (width / height / length) | 5 / 28,5 / 87,5 |
| Weight [g] | 12 |
| Packing [pcs] | 25 |
| Solid conductor [mm²] | 0,5 - 2,5 |
| Finely stranded conductor [mm²] | 0,5 - 2,5 |
| Stripping length [mm] | 12 |
