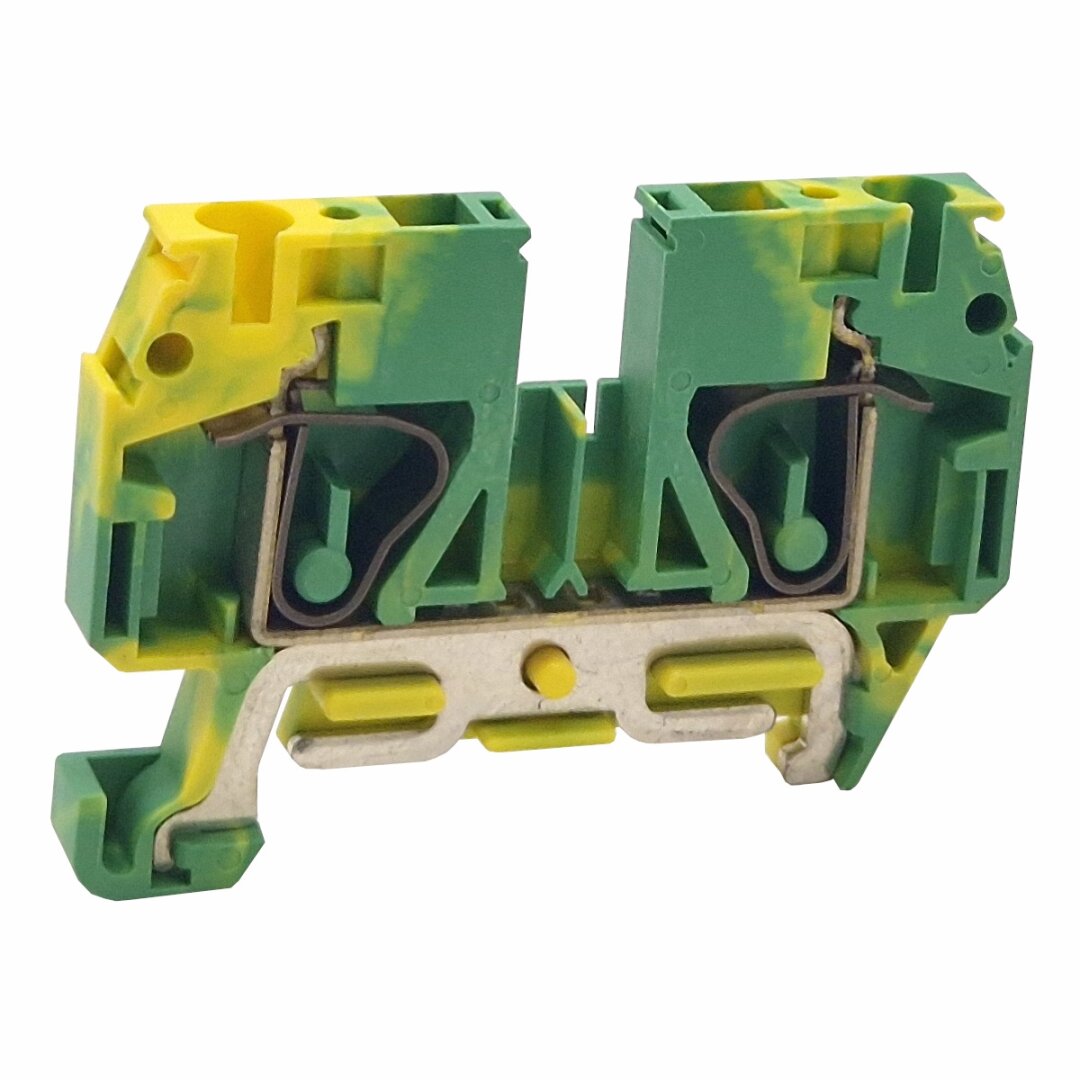

Screwless terminal block EURO PE Q4
Manufacturer Code: A533232
2,42 € without VAT 2,92 € with VAT
Screwless terminal block EURO PE Q4
| Rated cross-section [mm²] | 4 |
| Rated current [A] | 480 |
| Rated voltage Ui [V] | 630 |
| Assembly method | TH 35 |
| IP code | 20 |
| Operating temperature [°C] | -60 ÷ +130 |
| Number of clamping points per level | 2 |
| Number of levels | 1 |
| End cover plate required | YES |
| Testing | EN 60947-7-1 |
| Dimensions [mm] (width / height / length) | 6 / 34,5 / 58 |
| Weight [g] | 13 |
| Packing [pcs] | 50 |
| Solid conductor [mm²] | 1,5 ÷ 6 |
| Finely stranded conductor [mm²] | 1,5 ÷ 6 |
| Stripping length [mm] | 15 |
