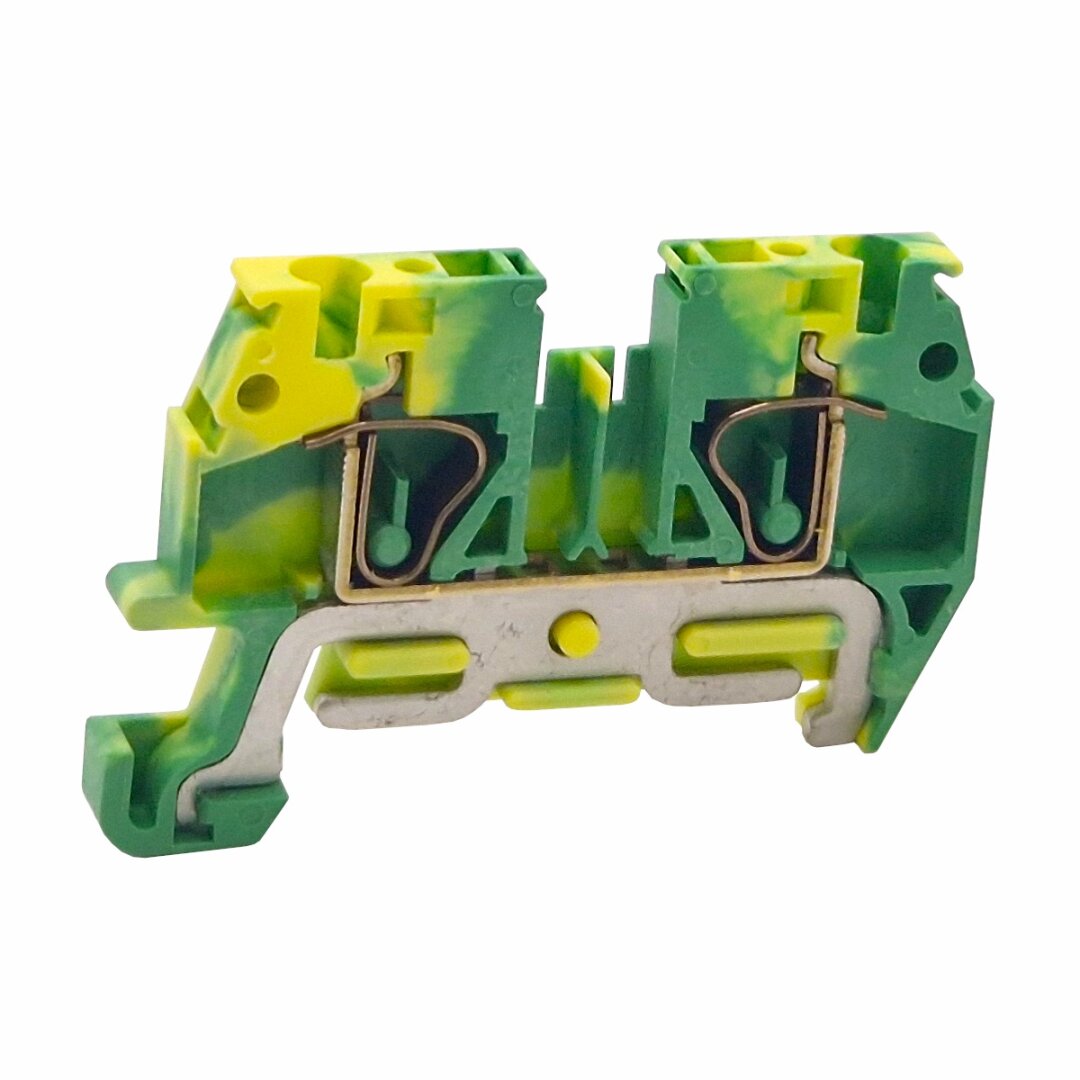

Screwless terminal block EURO PE Q2,5
Manufacturer Code: A523232
2,15 € without VAT 2,61 € with VAT
Screwless terminal block EURO PE Q2,5
| Rated cross-section [mm²] | 2,5 |
| Rated current [A] | 300 |
| Rated voltage Ui [V] | 630 |
| Assembly method | TH 35 |
| IP code | 20 |
| Operating temperature [°C] | -20 - +55 |
| Number of clamping points per level | 2 |
| Number of levels | 1 |
| End cover plate required | YES |
| Testing | EN 60947-7-1 |
| Dimensions [mm] (width / height / length) | 5 / 28,5 / 53 |
| Weight [g] | 9 |
| Packing [pcs] | 50 |
| Solid conductor [mm²] | 0,5 - 2,5 |
| Finely stranded conductor [mm²] | 0,5 - 2,5 |
| Stripping length [mm] | 12 |
| Recommended length of the ferrule [mm] | 12 |
