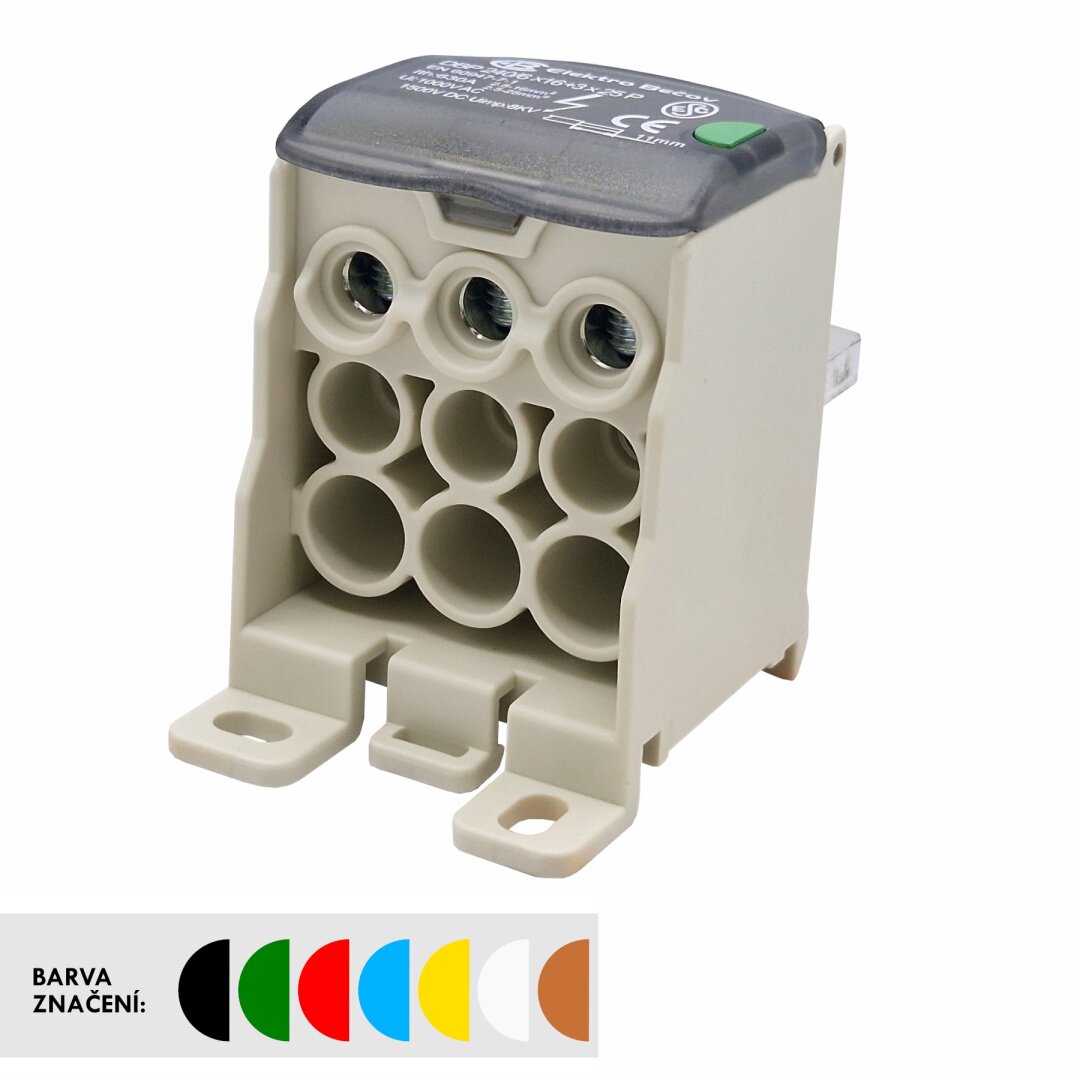

Distriboution block DBP 240/6x16+3x25 P
Manufacturer Code: UN240616K
13,48 € without VAT 16,31 € with VAT
Distriboution block DBP 240/6x16+3x25 P
| Rated cross-section [mm²] | 16 + 25 |
| Connection range [mm²] | 6 ÷ 16 / 10 ÷ 25 |
| Rated current [A] | 630 |
| Rated voltage Ui [V] | 1000 AC / 1500 DC |
| Rated impulse withstand voltage Uimp [kV] | 8 |
| Tightening torque [Nm] | 3 (6 ÷ 16 mm²) |
| Tightening torque [Nm] | 4 (25 mm²) |
| Tool | Inbus |
| Assembly method | TS 35 |
| IP code | 00 |
| Operating temperature [°C] | -40 ÷ +105 |
| Number of clamping points per level | 9 + PIN |
| Number of levels | 1 |
| Dimensions [mm] (width / height / length) | 45 / 61,8 / 82,5 |
| Weight [g] | 221 |
| Packing [pcs] | 5 |

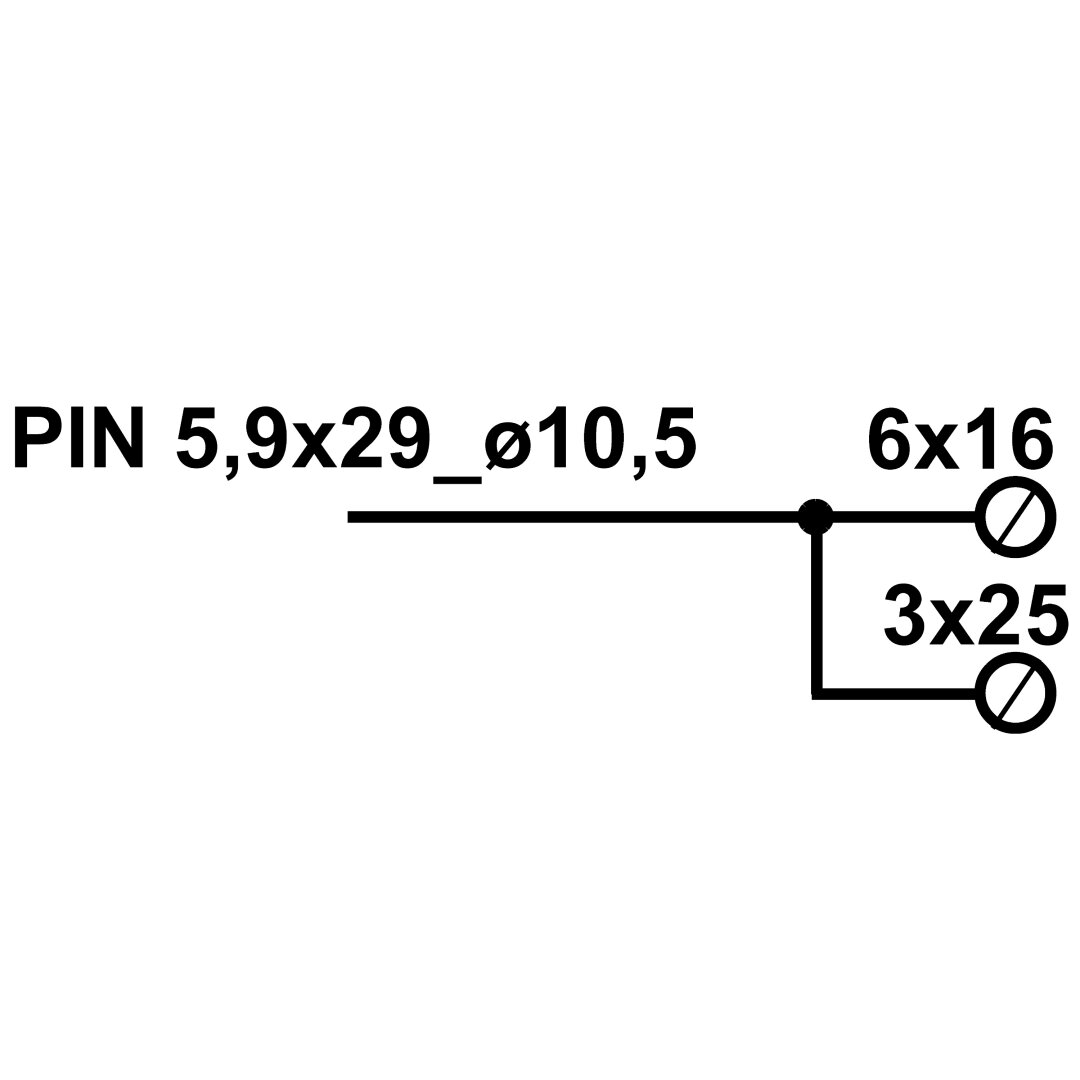

| Conductor cross-section – Input [mm²] | PIN 5,9 x 29 mm / hole Ø 10,5 mm |
| Conductor cross-section – Output [mm²] | 6 x 16 |
| Conductor cross-section – Output [mm²] | 3 x 25 |
