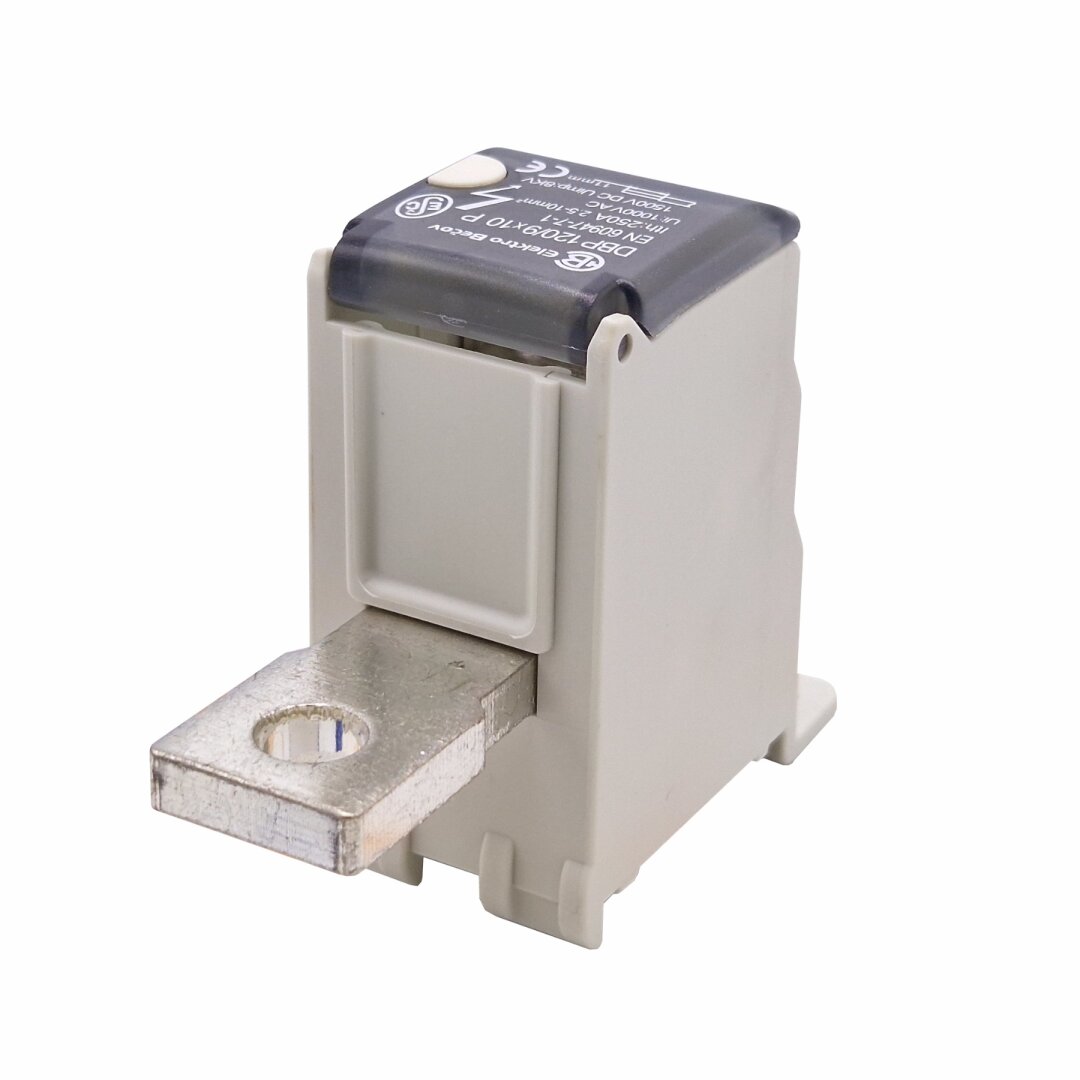

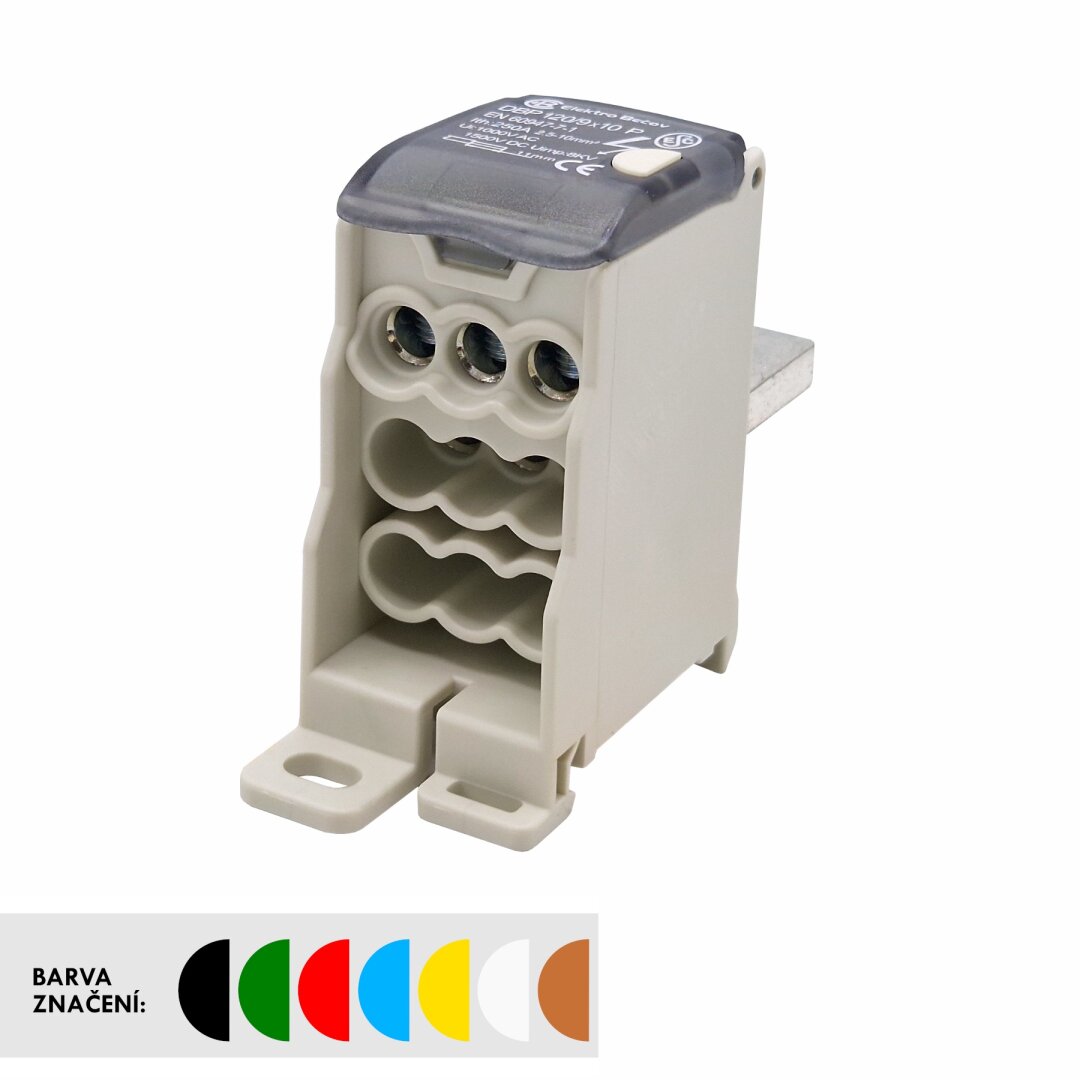

Distribution block DBP 120/9x10 P
Manufacturer Code: UN120910
8,09 € without VAT 9,79 € with VAT
Distribution block DBP 120/9x10 P
| Rated cross-section [mm²] | 10 |
| Connection range [mm²] | 4 ÷ 10 |
| Rated current [A] | 250 |
| Rated voltage Ui [V] | 1000 AC / 1500 DC |
| Rated impulse withstand voltage Uimp [kV] | 8 |
| Tightening torque [Nm] | 2 |
| Tool | Inbus |
| Assembly method | TS 35 |
| IP code | 00 |
| Operating temperature [°C] | -40 ÷ +105 |
| Number of clamping points per level | 9 + PIN |
| Number of levels | 1 |
| Dimensions [mm] (width / height / length) | 30 / 61,8 / 74 |
| Packing [pcs] | 5 |

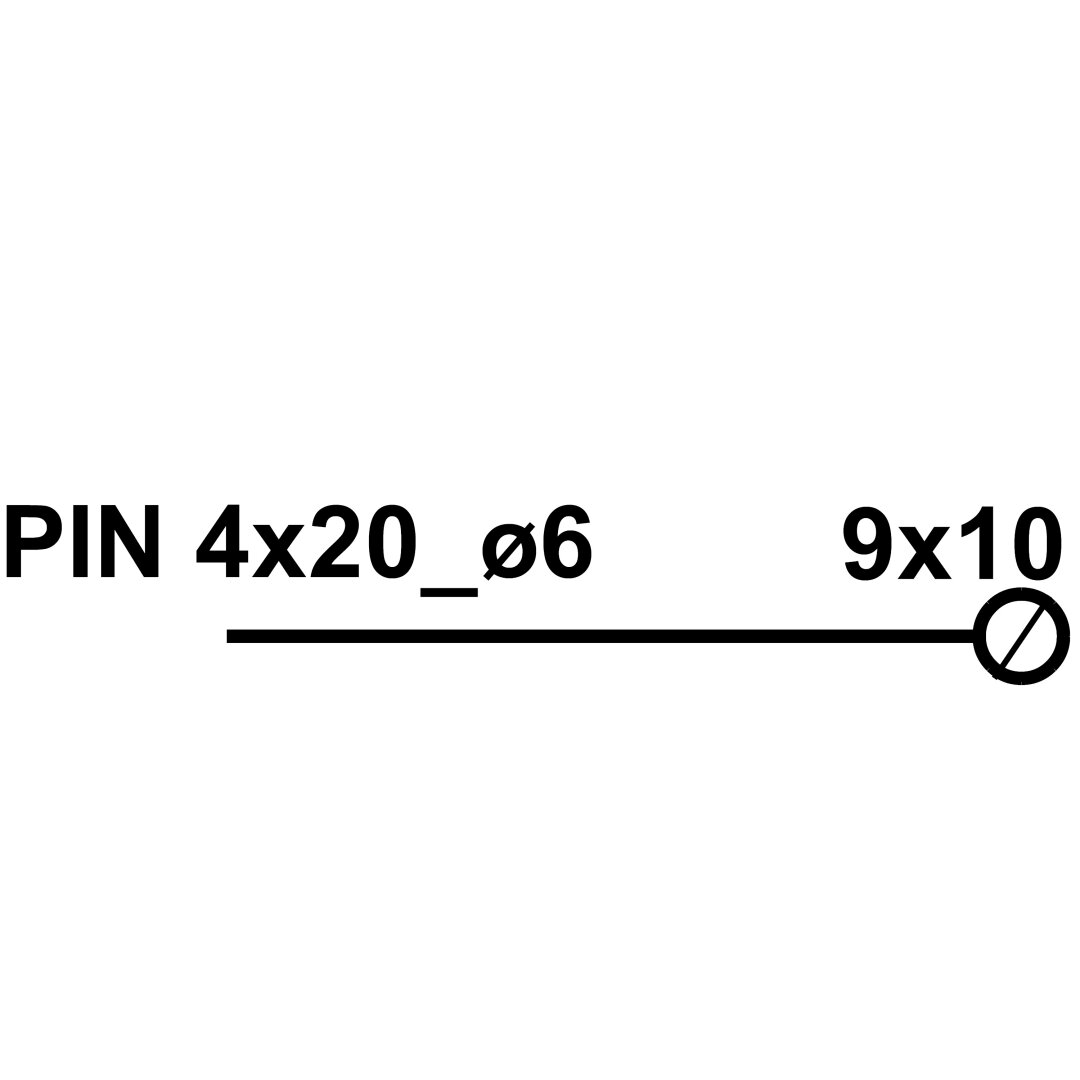

| Conductor cross-section – Input [mm²] | PIN 4 x 20 mm / hole Ø 6 mm |
| Conductor cross-section – Output [mm²] | 9 x 10 |
