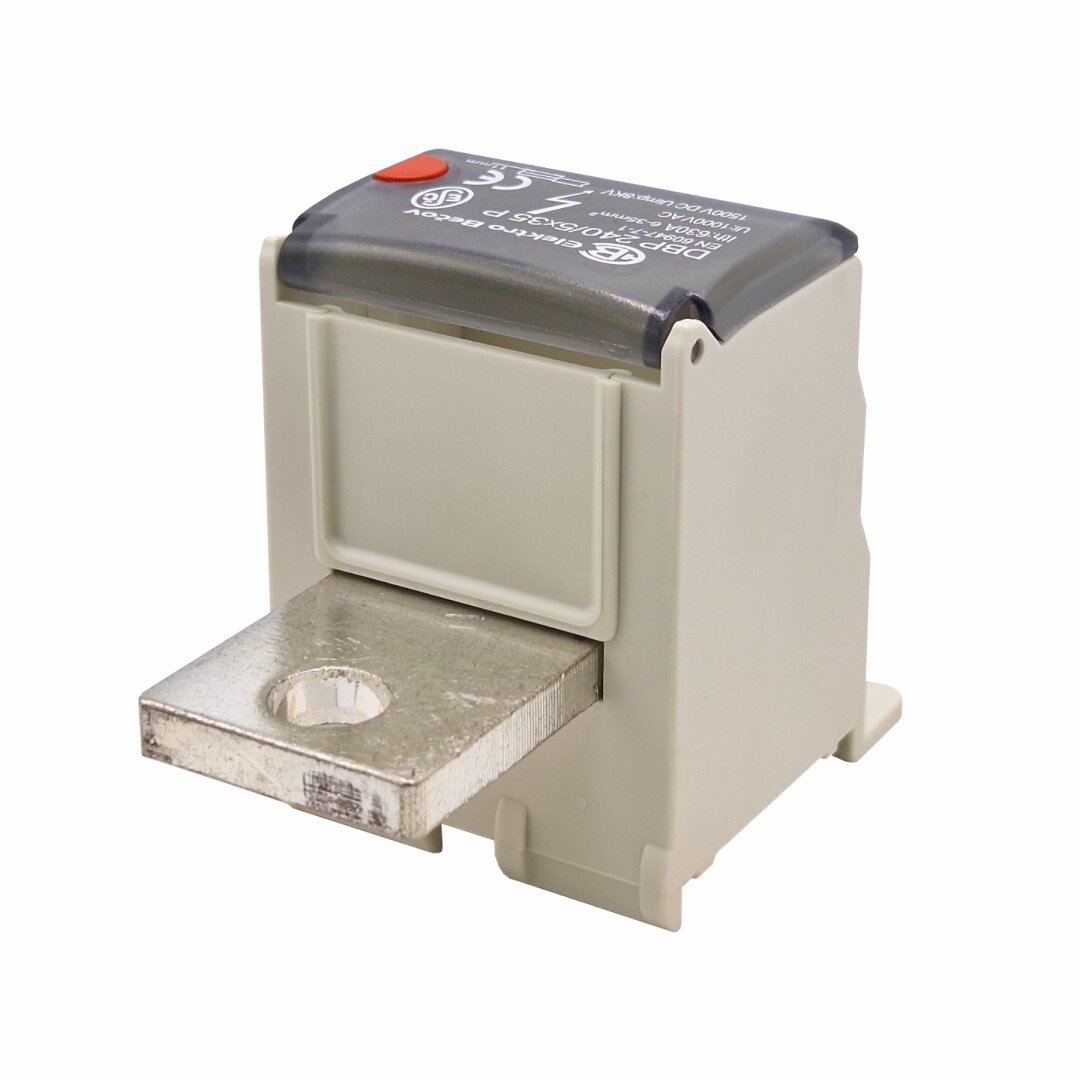

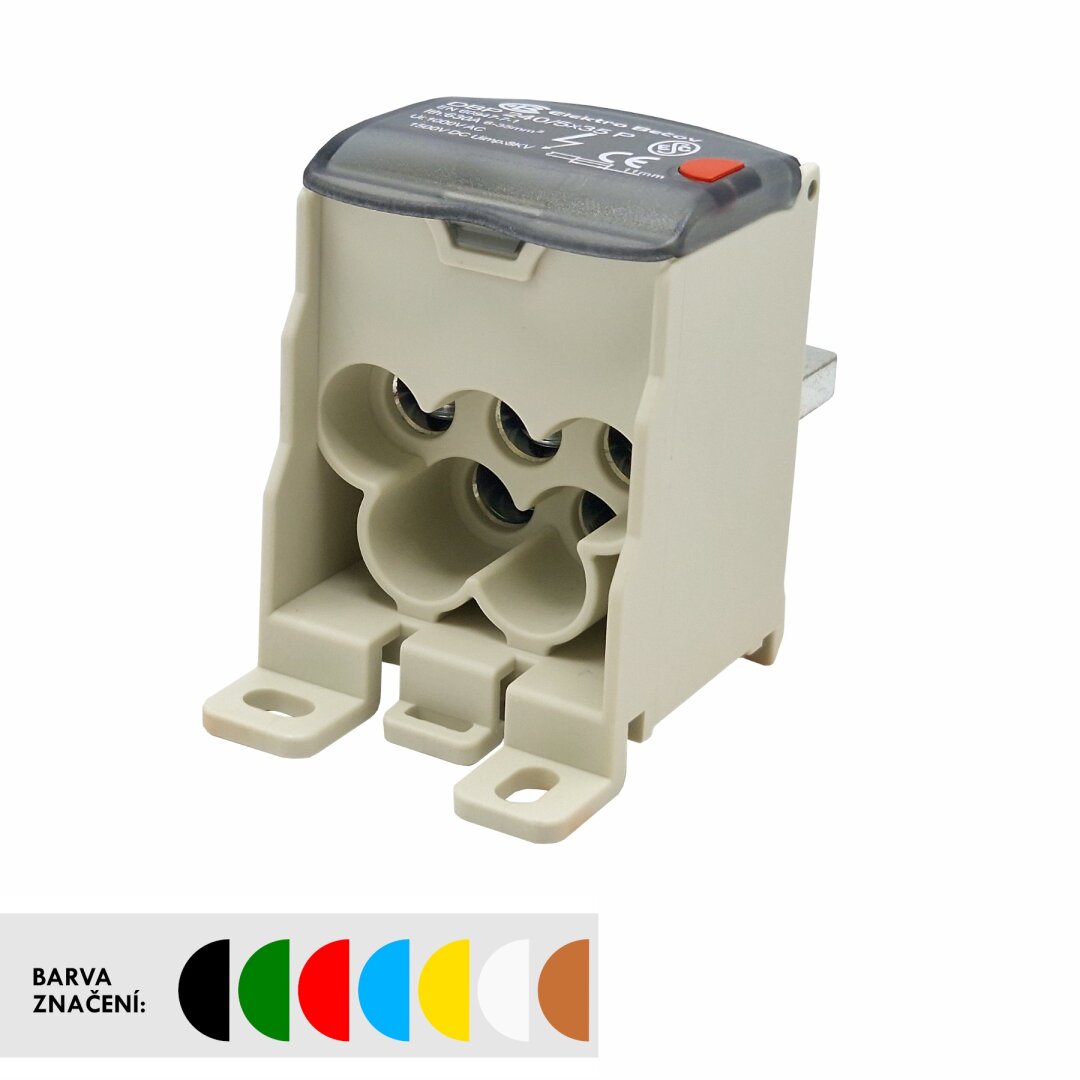

Distribution block DBP 240/5x35 P
Manufacturer Code: UN240535
12,26 € without VAT 14,83 € with VAT
Distribution block DBP 240/5x35 P
| Rated cross-section [mm²] | 35 |
| Connection range [mm²] | 16 ÷ 35 |
| Rated current [A] | 630 |
| Rated voltage Ui [V] | 1000 AC / 1500 DC |
| Rated impulse withstand voltage Uimp [kV] | 8 |
| Tightening torque [Nm] | 4 |
| Tool | Inbus |
| Assembly method | TS 35 |
| IP code | 00 |
| Operating temperature [°C] | -40 ÷ +105 |
| Number of clamping points per level | 5 + PIN |
| Number of levels | 1 |
| Testing | EN 60947-7-1 |
| Dimensions [mm] (width / height / length) | 45 / 61,8 / 82,5 |
| Weight [g] | 185 |
| Packing [pcs] | 5 |

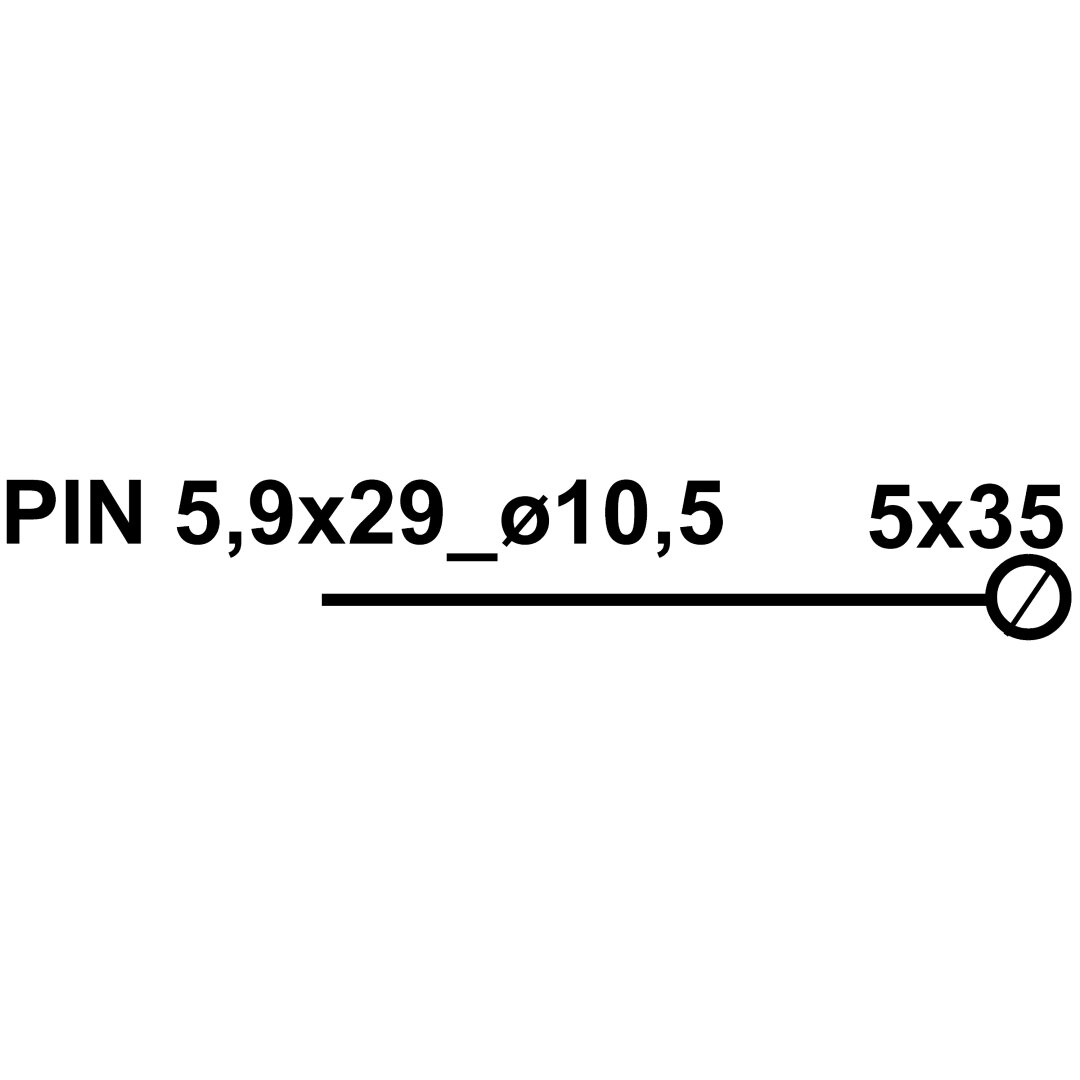

| Conductor cross-section – Input [mm²] | PIN 5,9 x 29 mm / hole Ø 10,5 mm |
| Conductor cross-section – Output [mm²] | 5 x 35 |
