Distribution block DBP 16/4x6 P
Manufacturer Code: UN01646
1,96 € without VAT 2,37 € with VAT
Distribution block DBP 16/4x6 P
| Rated cross-section [mm²] | 6 |
| Connection range [mm²] | 2,5 ÷ 6 |
| Rated current [A] | 63 |
| Rated voltage Ui [V] | 1000 AC / 1500 DC |
| Rated impulse withstand voltage Uimp [kV] | 8 |
| Tightening torque [Nm] | 1,2 |
| Assembly method | TS 35 |
| IP code | 00 |
| Operating temperature [°C] | -40 ÷ +105 |
| Number of clamping points per level | 4 + PIN |
| Number of levels | 1 |
| Testing | EN 60947-7-1 |
| Dimensions [mm] (width / height / length) | 17,6 / 49 / 57,6 |
| Weight [g] | 31,5 |
| Packing [pcs] | 20 |

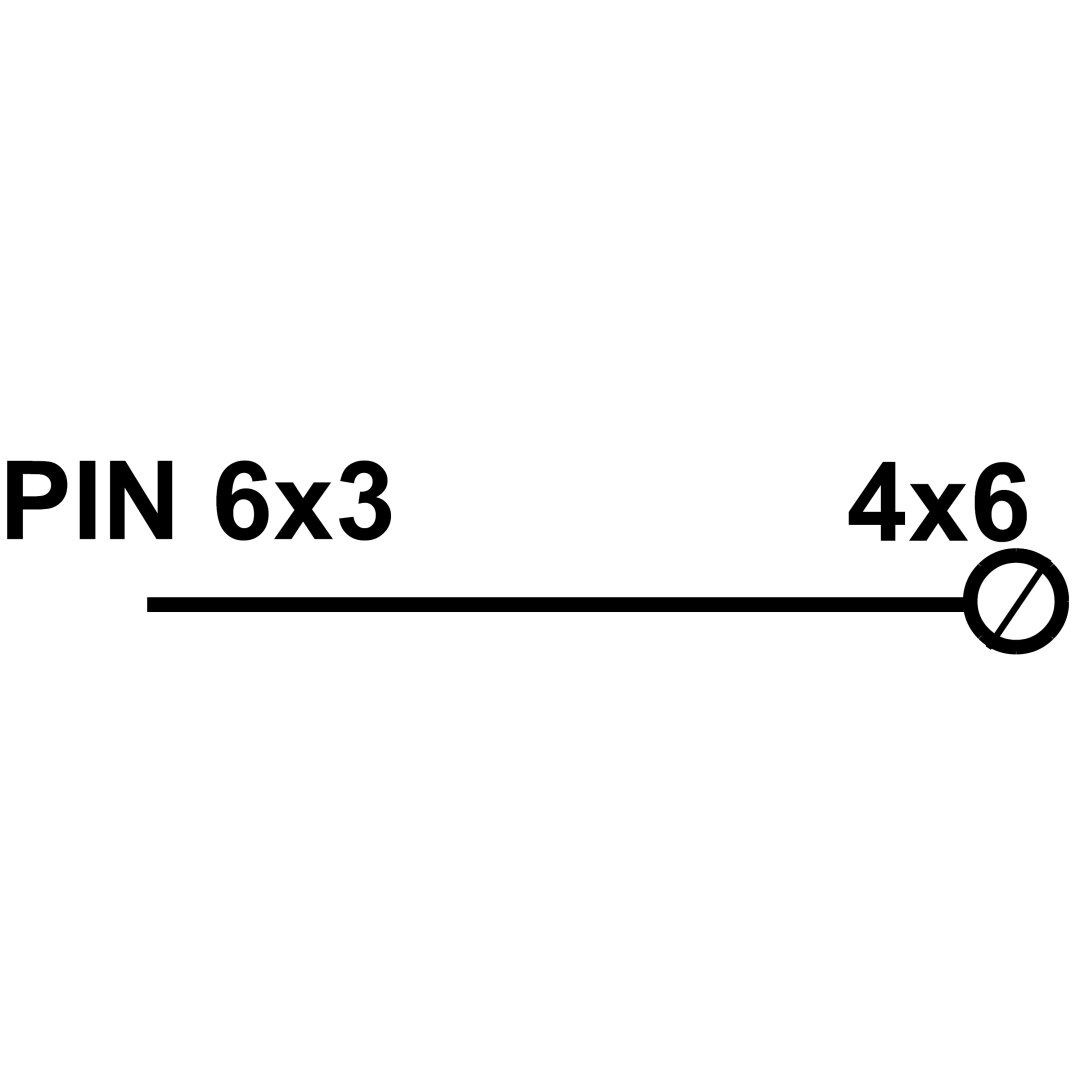

| Conductor cross-section – Input [mm²] | PIN 6 x 3 mm |
| Conductor cross-section – Output [mm²] | 4 x 6 |
