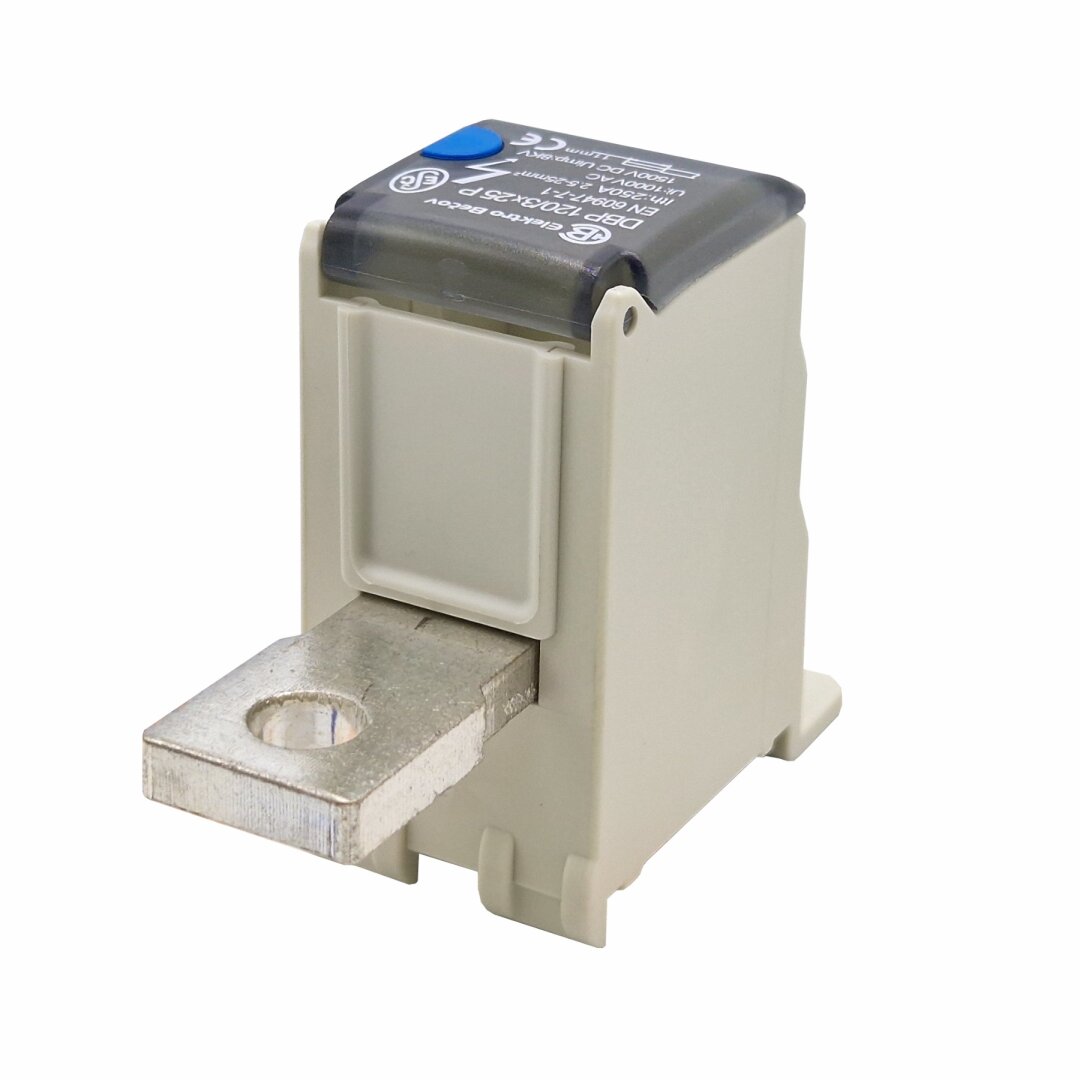

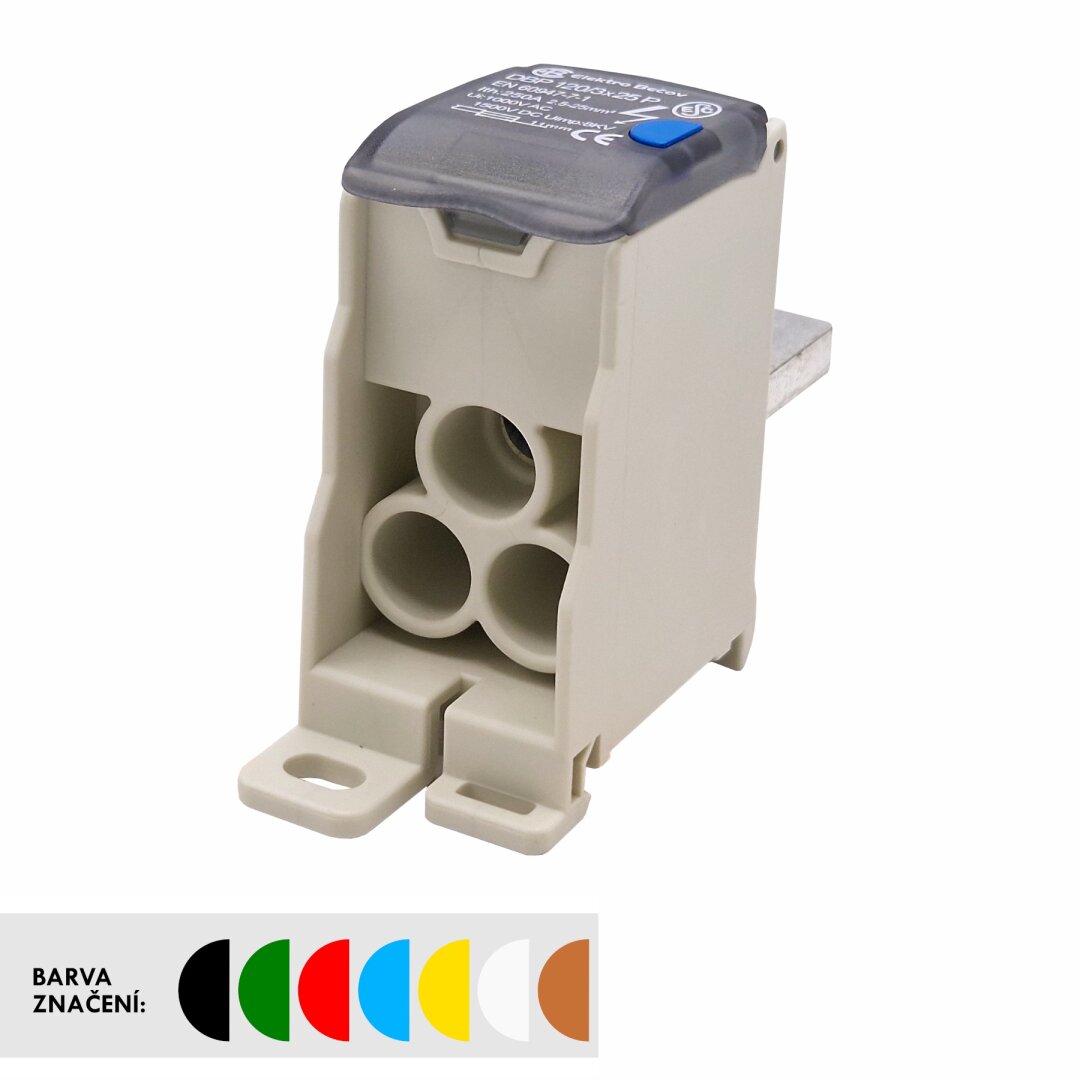

Distribution block DBP 120/3x25 P
Manufacturer Code: UN120325
6,37 € without VAT 7,71 € with VAT
Distribution block DBP 120/3x25 P
| Rated cross-section [mm²] | 25 |
| Connection range [mm²] | 10 ÷ 25 |
| Rated current [A] | 250 |
| Rated voltage Ui [V] | 1000 AC / 1500 DC |
| Rated impulse withstand voltage Uimp [kV] | 8 |
| Tightening torque [Nm] | 4 |
| Assembly method | TS 35 |
| IP code | 00 |
| Operating temperature [°C] | -40 ÷ +105 |
| Number of clamping points per level | 3 + PIN |
| Number of levels | 1 |
| Dimensions [mm] (width / height / length) | 30 / 61,8 / 74 |
| Weight [g] | 121,5 |
| Packing [pcs] | 5 |

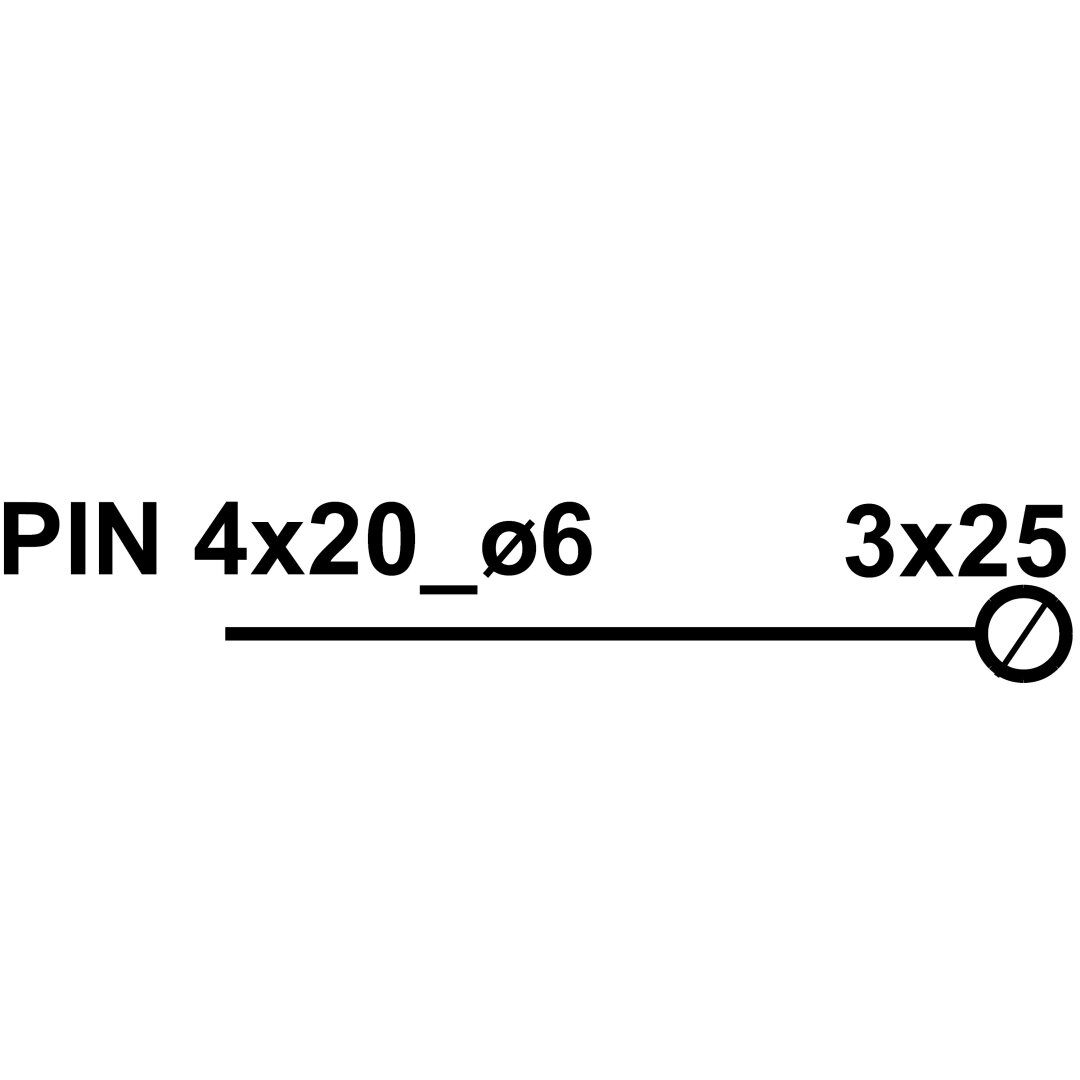

| Conductor cross-section – Input [mm²] | PIN 4 x 20 mm / hole Ø 6 mm |
| Conductor cross-section – Output [mm²] | 3 x 25 |
