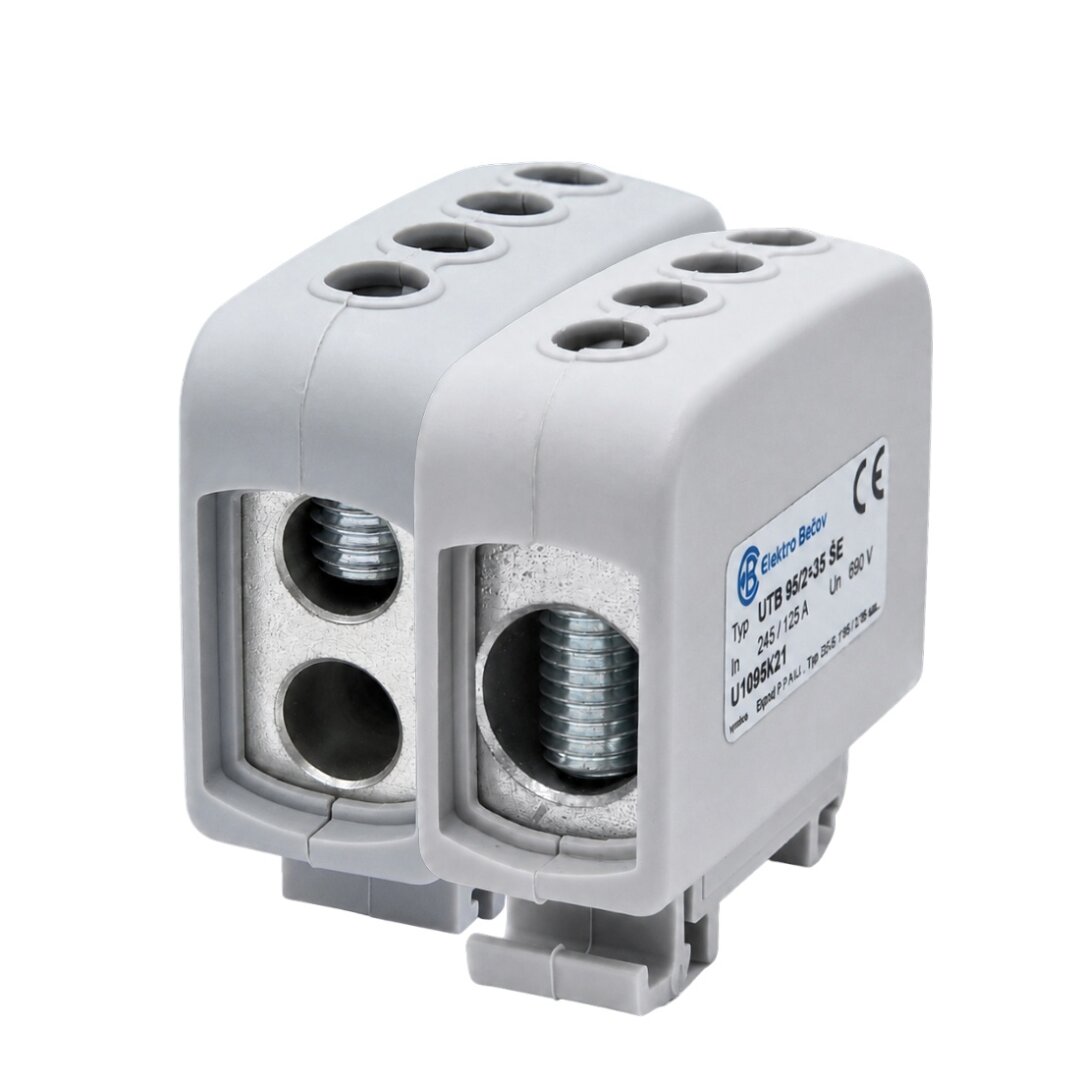

Universal terminal blocks UTB 95/2×35

5,31 €without VAT6,42 €with VAT
Universal terminal blocks UTB 95/2×35
Rated cross-section [mm²]95 / 35
Rated current [A]245 / 125
Rated voltage Ui [V]690
Tightening torque [Nm]5 (6 mm²)
Tightening torque [Nm]7 (10 - 16 mm²)
Tightening torque [Nm]12 (25 - 35 mm²)
Tightening torque [Nm]18 (50 - 70 mm²)
Tightening torque [Nm]22 (95 mm²)
Tool Inbus
Assembly methodTH 35
Operating temperature [°C]-25 - +100
Number of clamping points per level3
Number of levels1
End cover plate requiredNO
TestingIEC 60947-7-1
Dimensions [mm] (width / height / length)23 / 57 / 59
Weight [g]92
Packing [pcs]1

Conductor cross section

Conductor cross-section – Input [mm²]1 x 35 - 95
Conductor cross-section – Output [mm²]2 x 6 - 35
