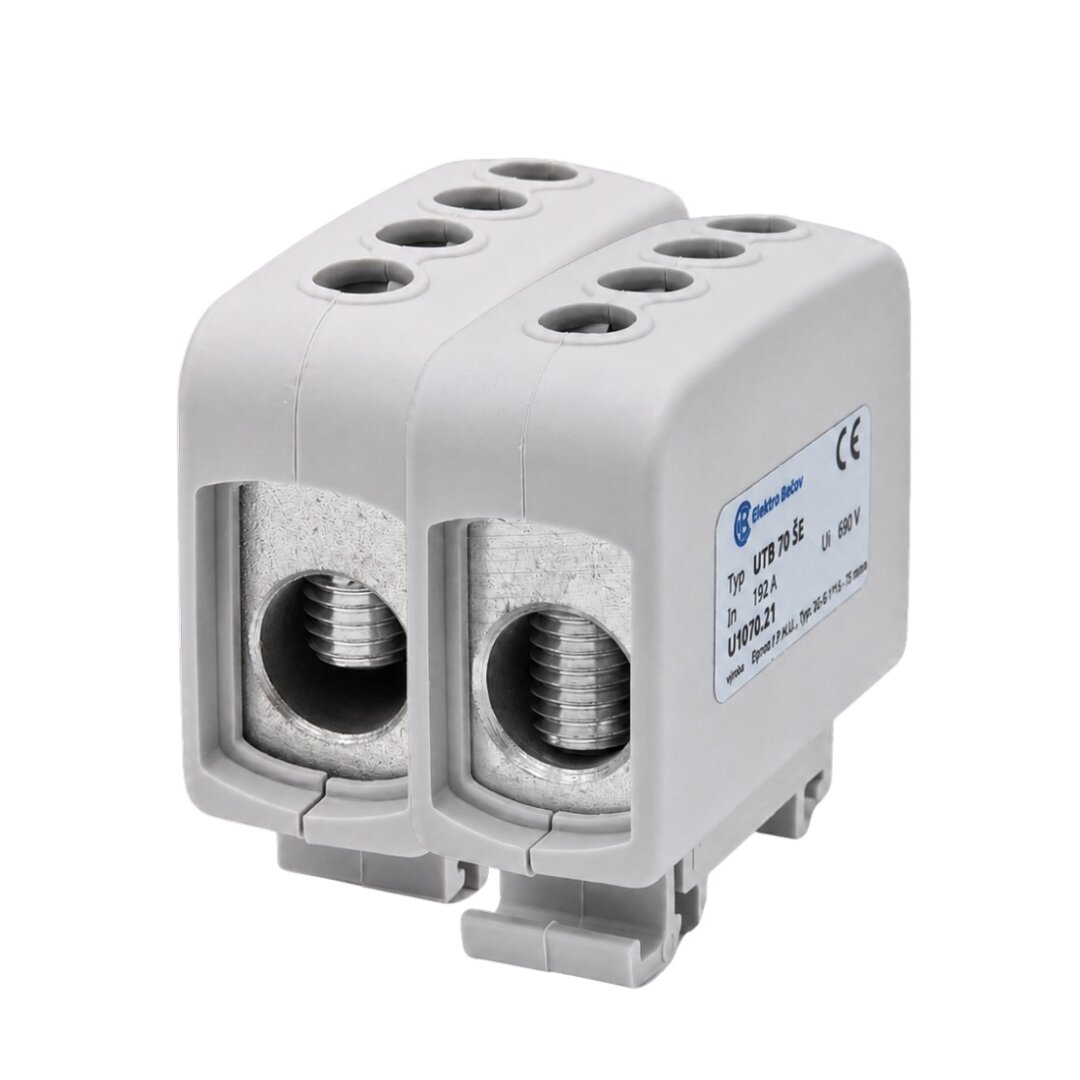

Universal terminal blocks UTB 70
6,32 € without VAT 7,65 € with VAT
Universal terminal blocks UTB 70
| Rated cross-section [mm²] | 70 |
| Rated current [A] | 192 |
| Rated voltage Ui [V] | 690 |
| Tightening torque [Nm] | 7 (16 mm²) |
| Tightening torque [Nm] | 12 (25 - 35 mm²) |
| Tightening torque [Nm] | 18 (50 - 70 mm²) |
| Tool | Inbus |
| Assembly method | TH 35 |
| Operating temperature [°C] | -25 - +100 |
| Number of clamping points per level | 2 |
| Number of levels | 1 |
| End cover plate required | NO |
| Testing | IEC 60947-7-1 |
| Dimensions [mm] (width / height / length) | 23 / 57 / 59 |
| Weight [g] | 97 |
| Packing [pcs] | 1 |
| Conductor cross-section – Input [mm²] | 1 x 16 - 70 |
| Conductor cross-section – Output [mm²] | 1 x 16 - 70 |
