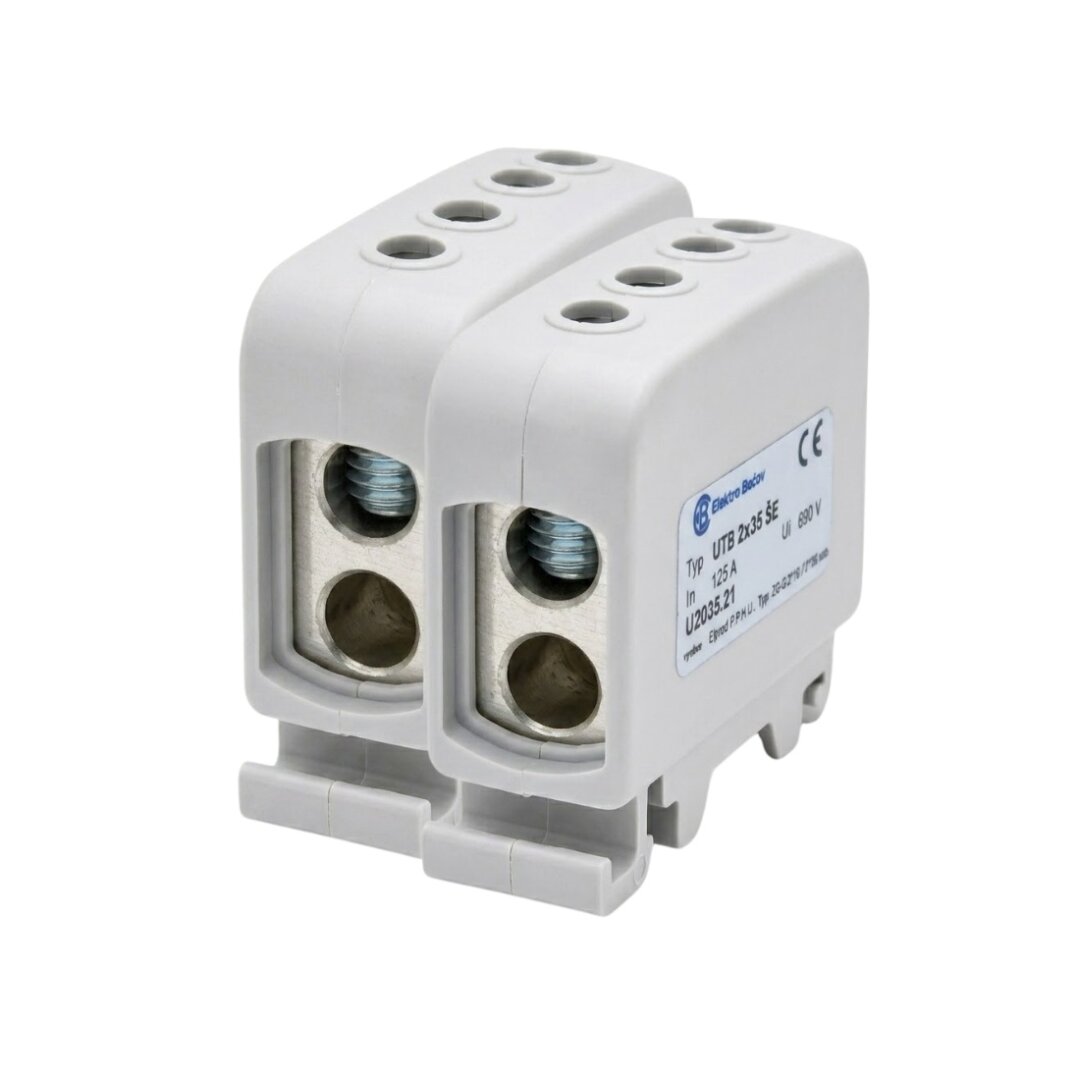

Universal terminal blocks UTB 2×35
6,59 € without VAT 7,98 € with VAT
Universal terminal blocks UTB 2×35
| Rated cross-section [mm²] | 35 |
| Rated current [A] | 125 |
| Rated voltage Ui [V] | 690 |
| Tightening torque [Nm] | 5 (6 mm²) |
| Tightening torque [Nm] | 7 (10 - 16 mm²) |
| Tightening torque [Nm] | 12 (25 - 35 mm²) |
| Tool | Inbus |
| Assembly method | TH 35 |
| Operating temperature [°C] | -25 - +100 |
| Number of clamping points per level | 4 |
| Number of levels | 1 |
| End cover plate required | NO |
| Testing | IEC 60947-7-1 |
| Dimensions [mm] (width / height / length) | 23 / 57 / 59 |
| Weight [g] | 94 |
| Packing [pcs] | 1 |
| Conductor cross-section – Input [mm²] | 2 x 6 - 35 |
| Conductor cross-section – Output [mm²] | 2 x 6 - 35 |
