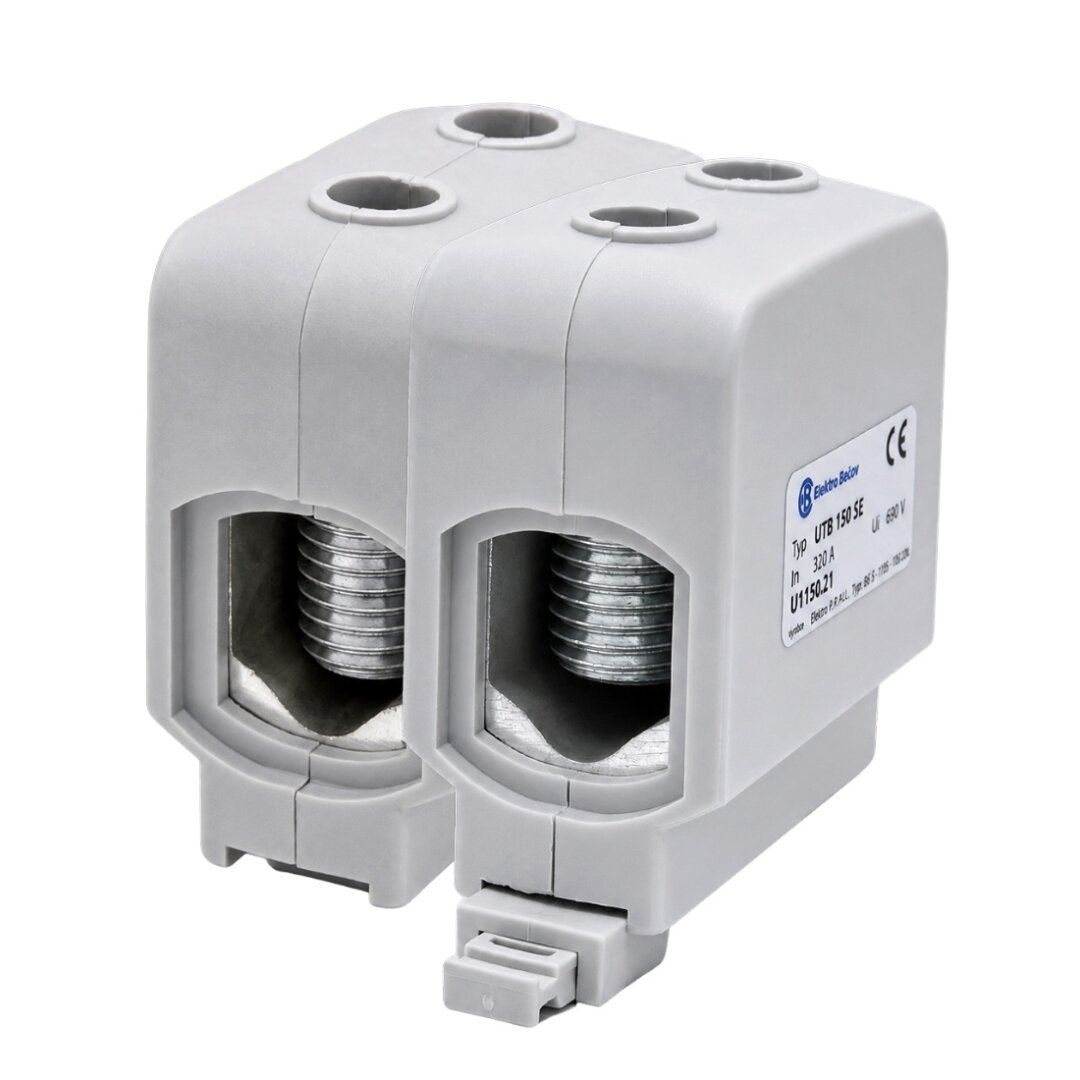

Universal terminal blocks UTB 150
12,60 € without VAT 15,25 € with VAT
Universal terminal blocks UTB 150
| Rated cross-section [mm²] | 150 |
| Rated current [A] | 320 |
| Rated voltage Ui [V] | 690 |
| Tightening torque [Nm] | 12 (25 - 35 mm²) |
| Tightening torque [Nm] | 18 (50 - 70 mm²) |
| Tightening torque [Nm] | 22 (95 - 120 mm²) |
| Tightening torque [Nm] | 40 (150 mm²) |
| Tool | Inbus |
| Assembly method | TH 35 |
| Operating temperature [°C] | -25 - +100 |
| Number of clamping points per level | 2 |
| Number of levels | 1 |
| End cover plate required | NO |
| Testing | IEC 60947-7-1 |
| Dimensions [mm] (width / height / length) | 35 / 67 / 58 |
| Weight [g] | 155 |
| Packing [pcs] | 1 |
| Conductor cross-section – Input [mm²] | 1 x 25 - 150 |
| Conductor cross-section – Output [mm²] | 1 x 25 - 150 |
