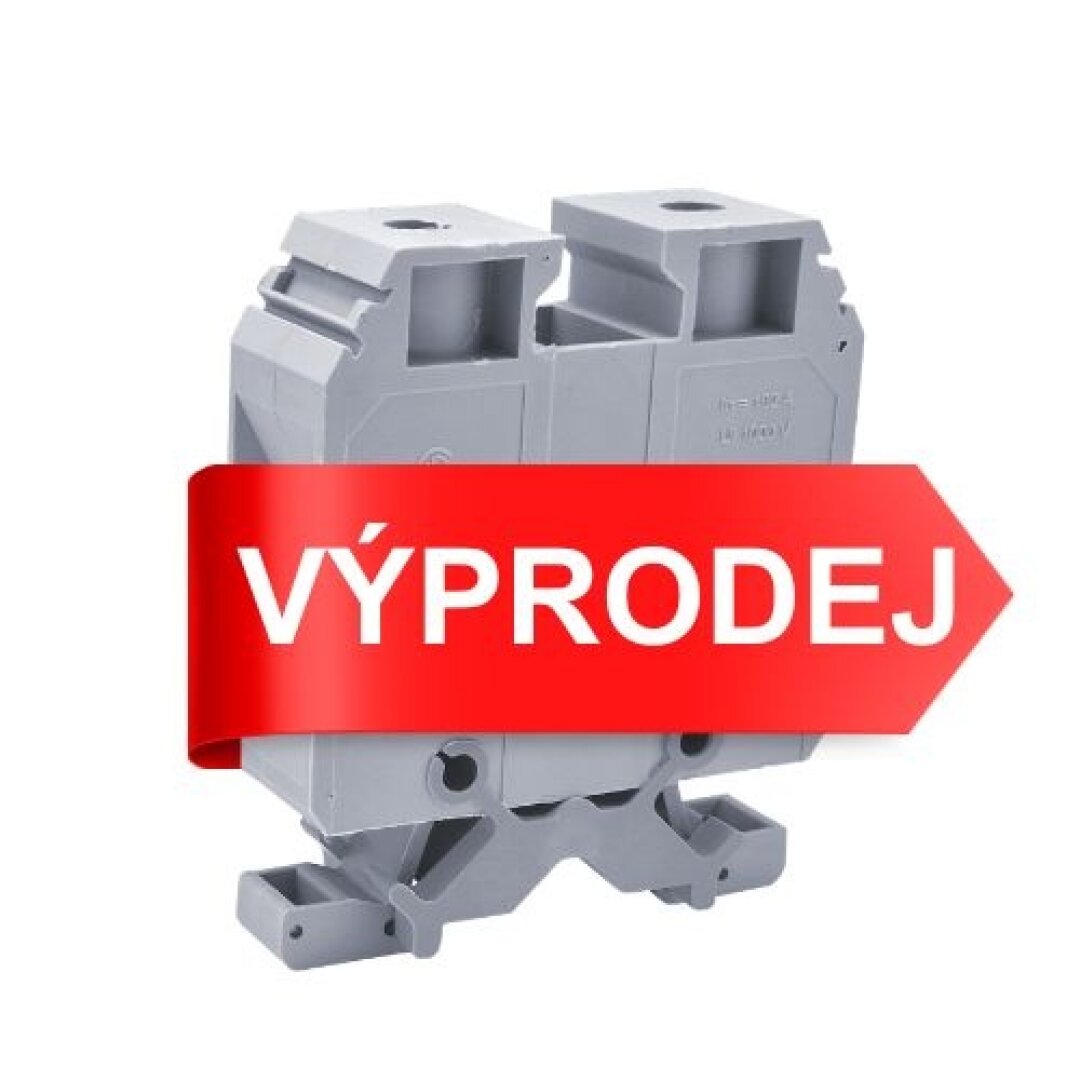

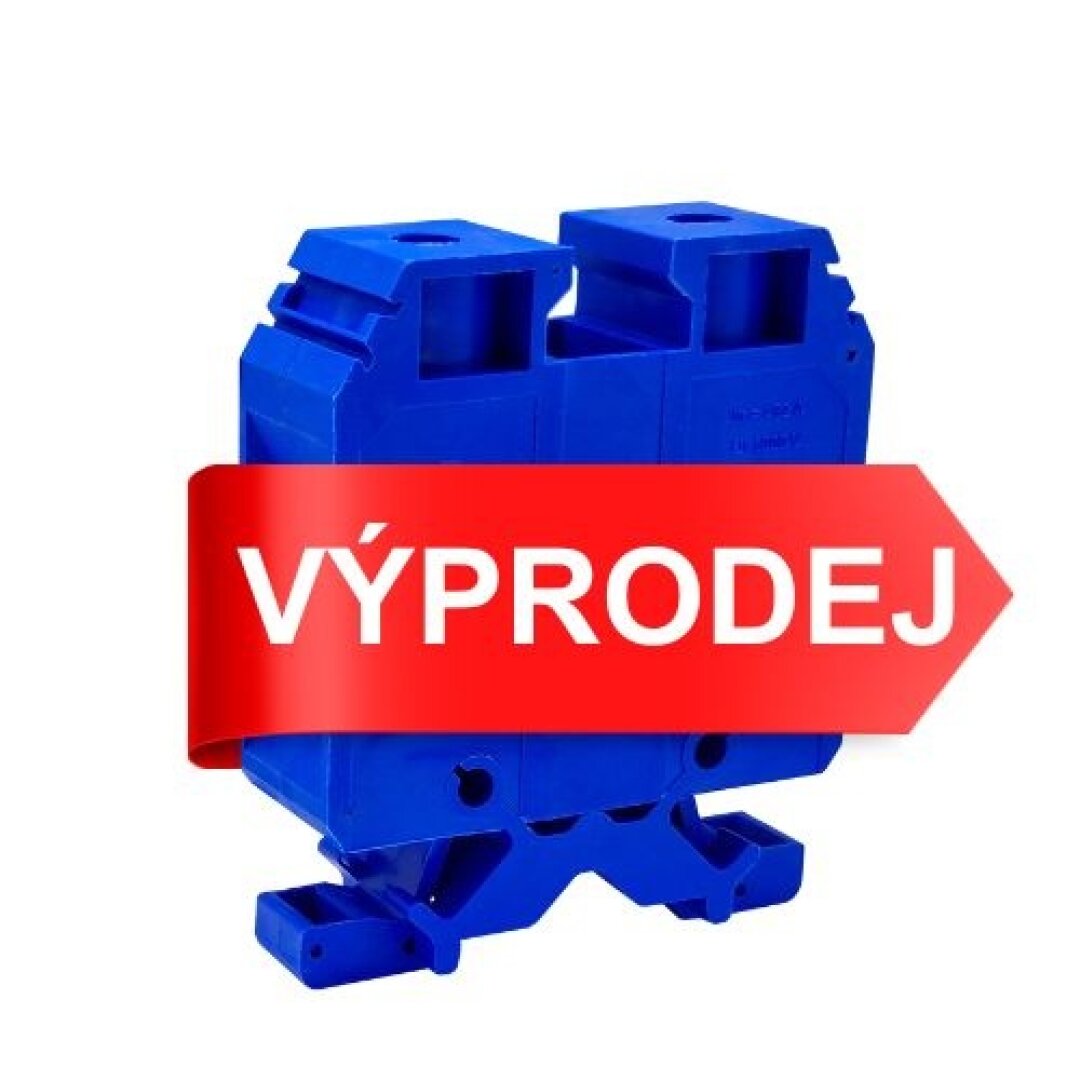

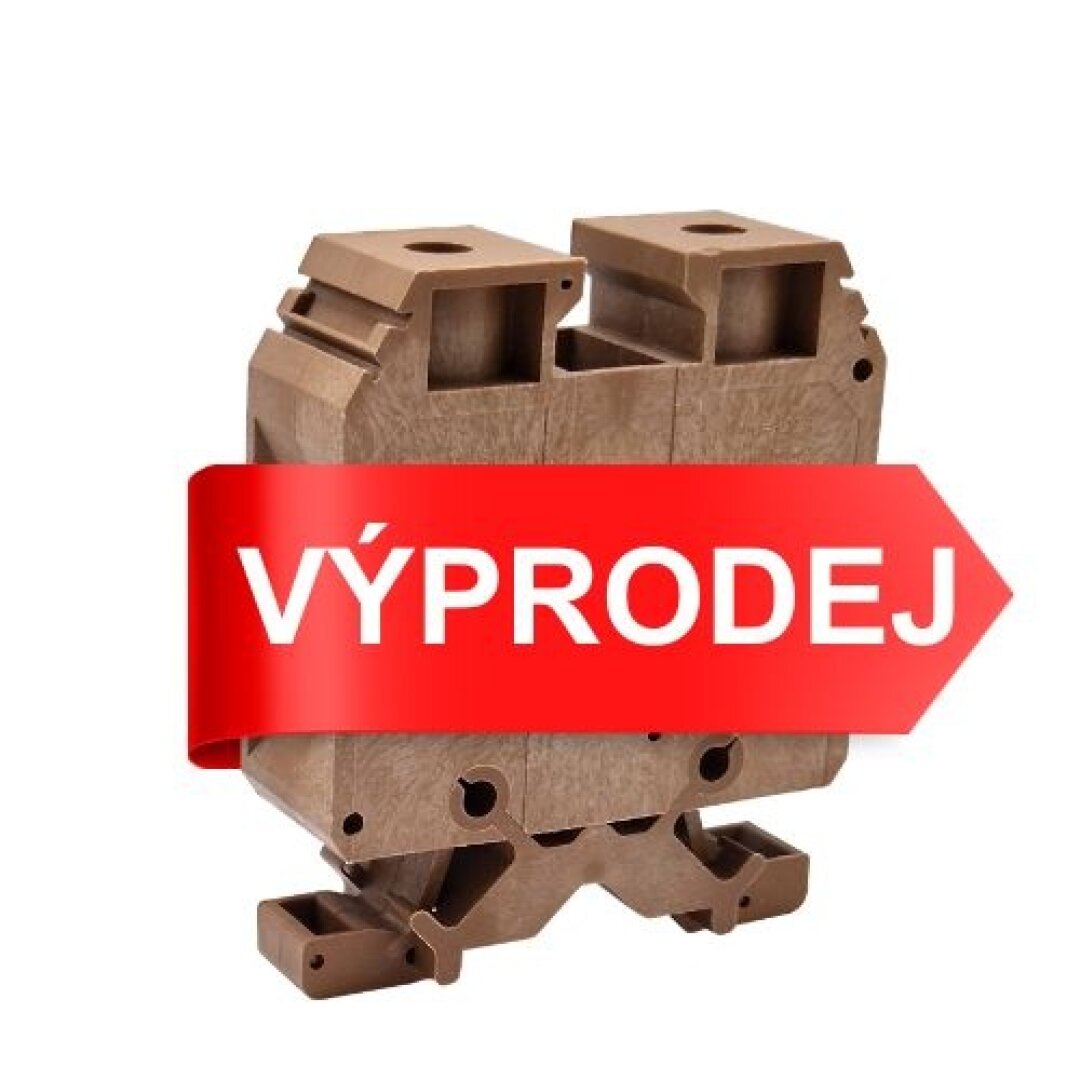

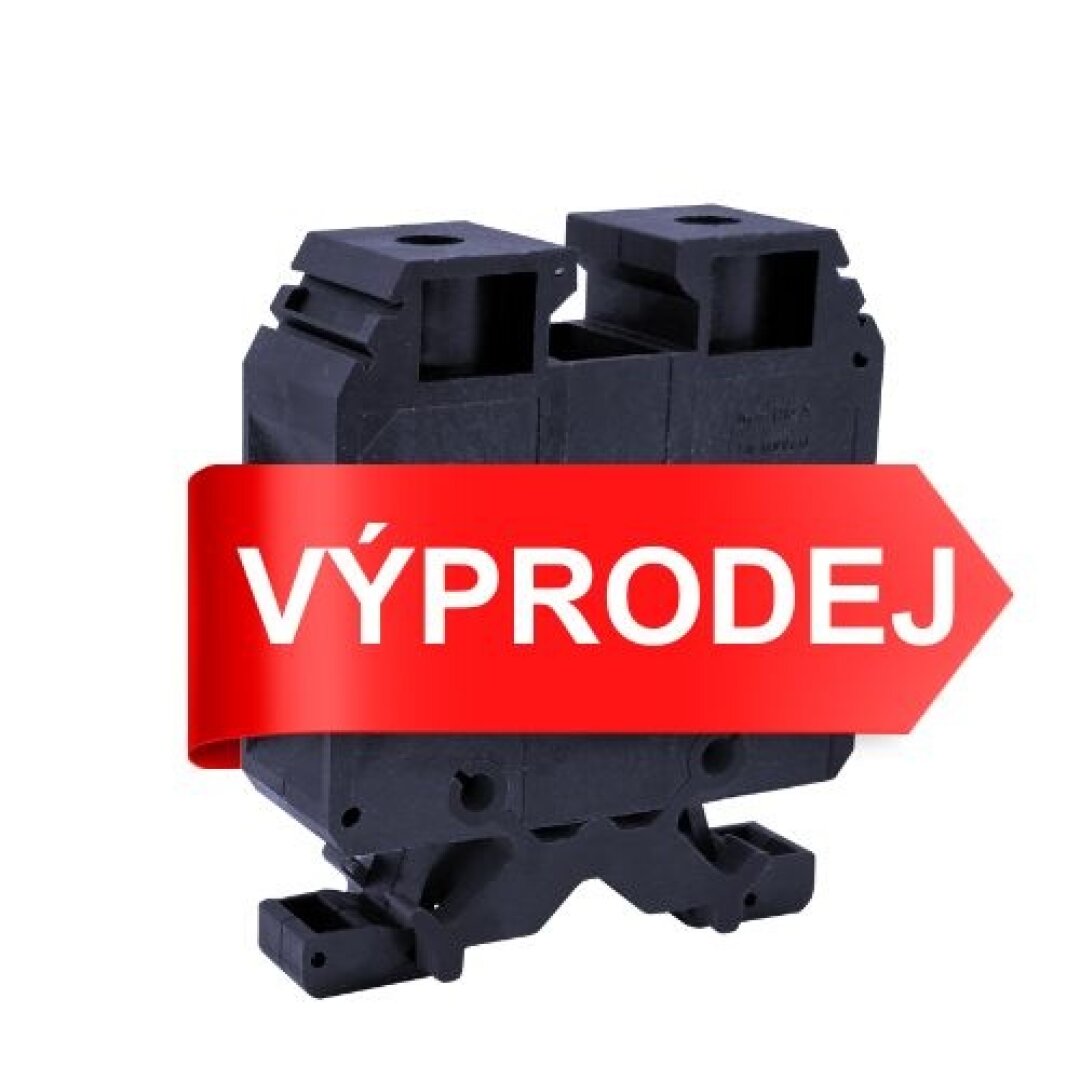

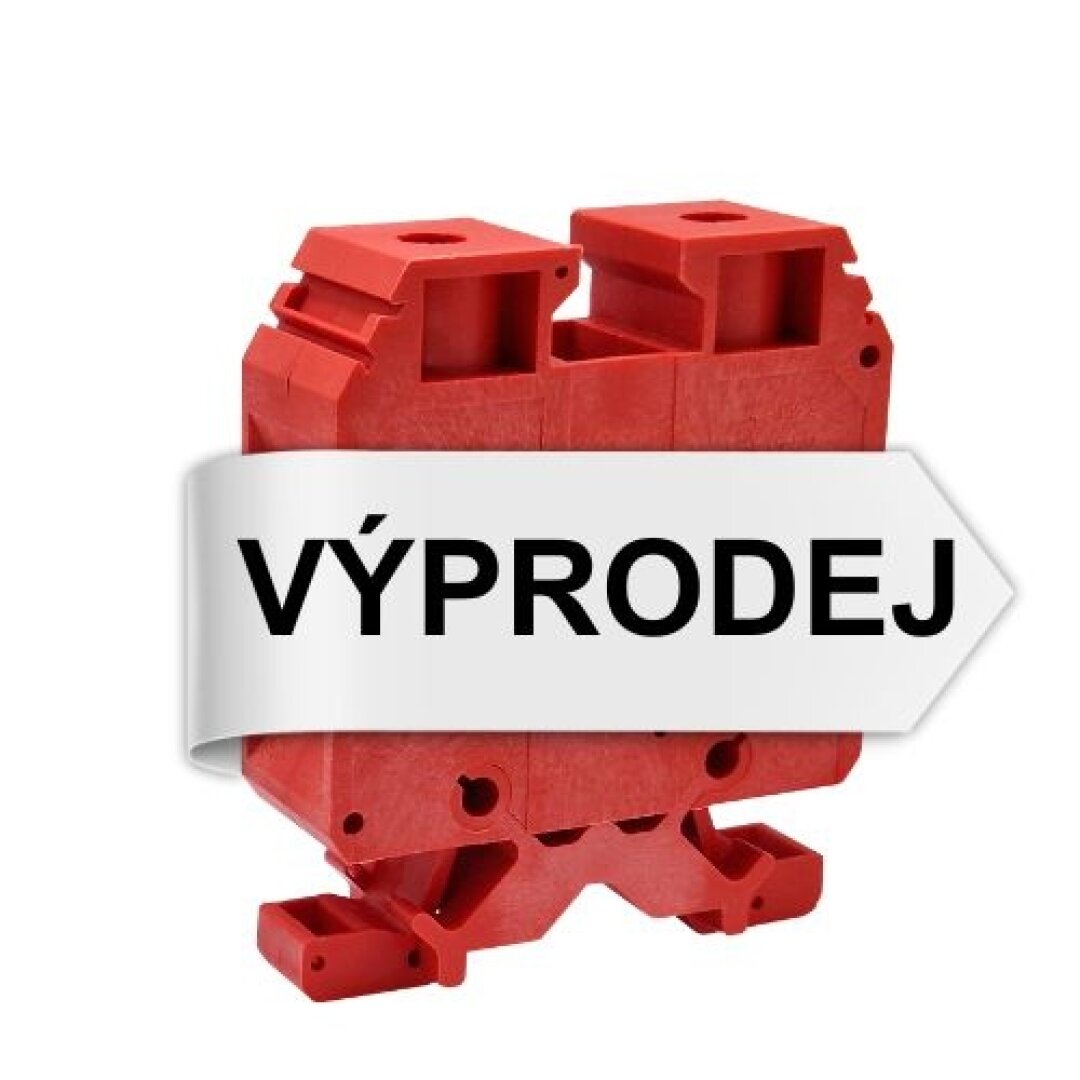

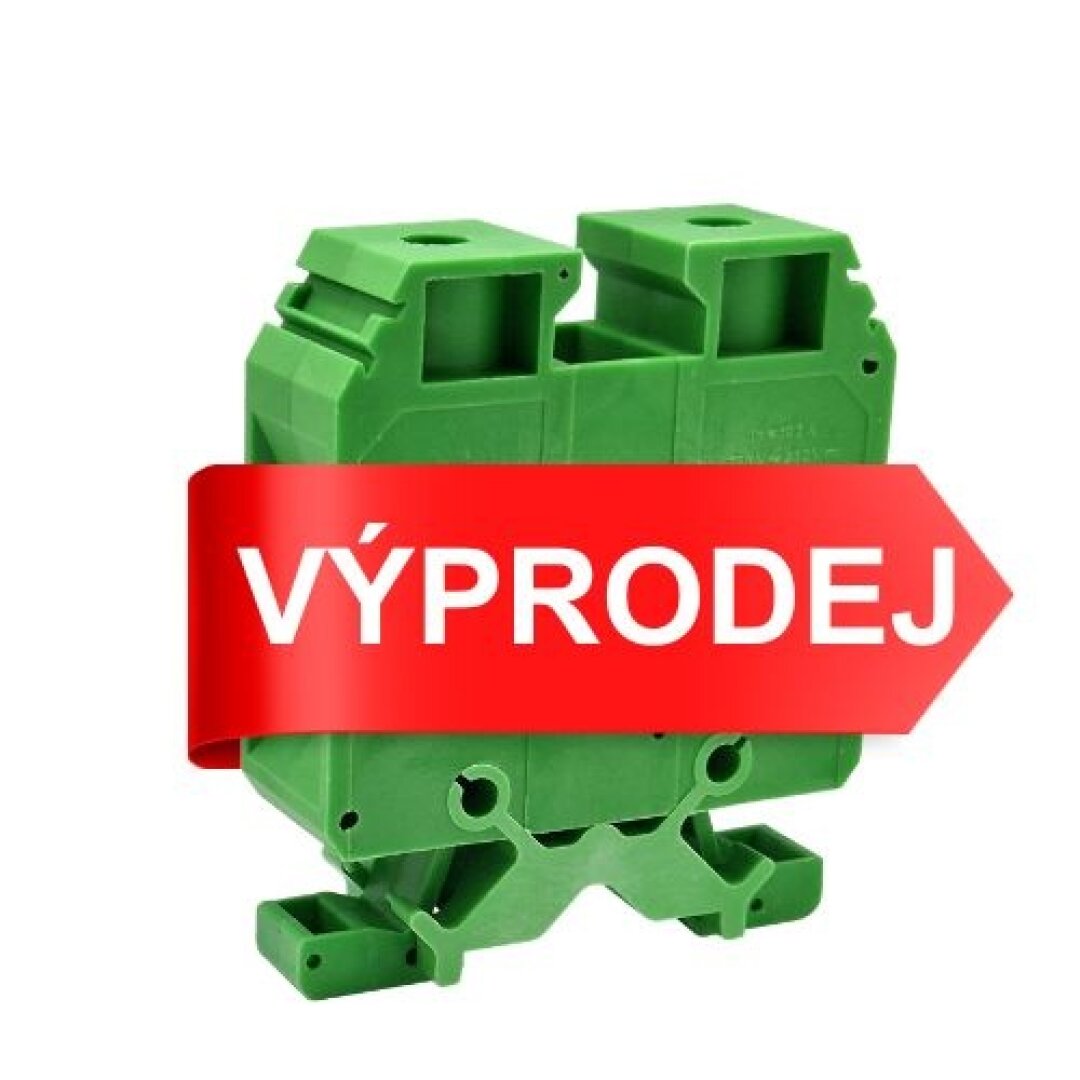

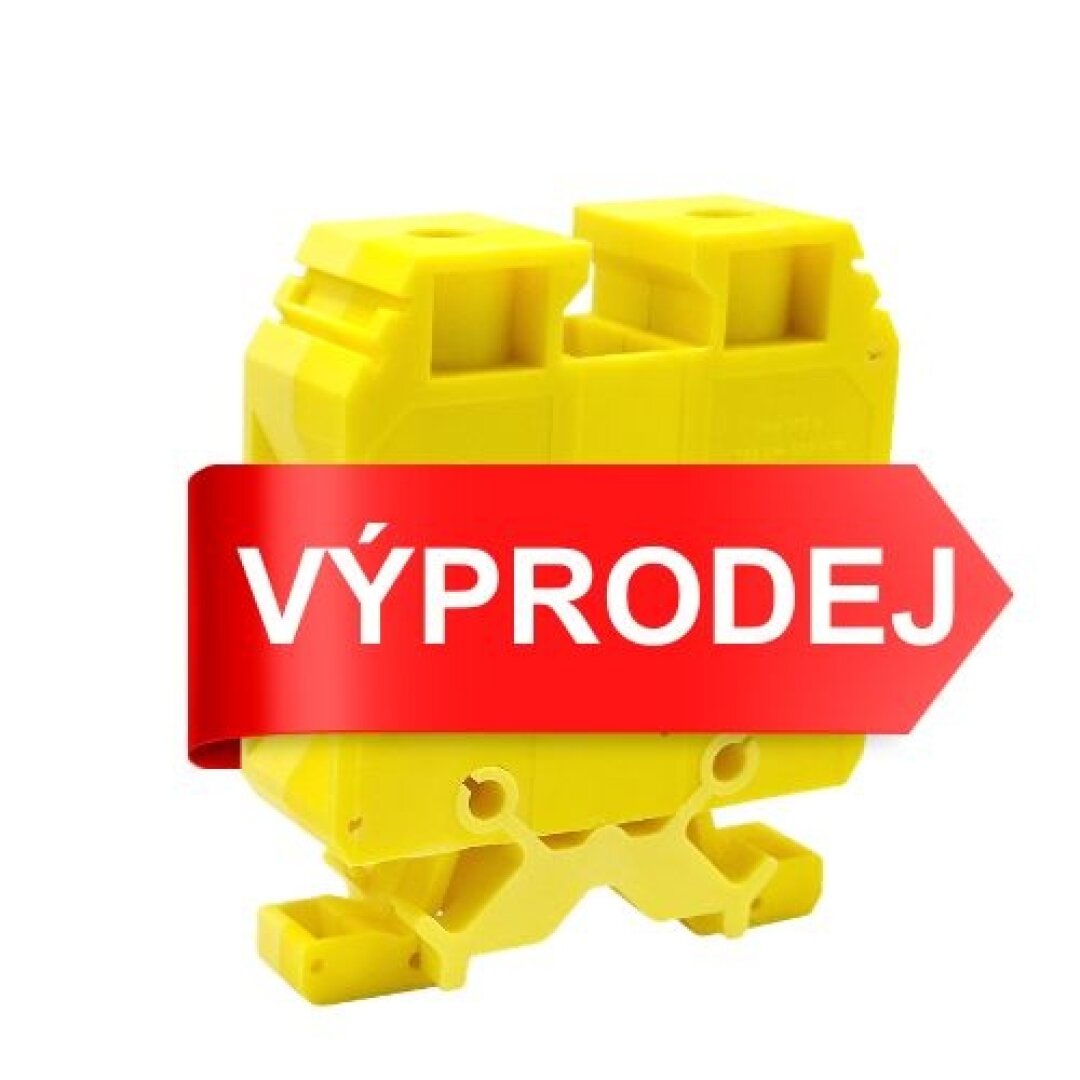

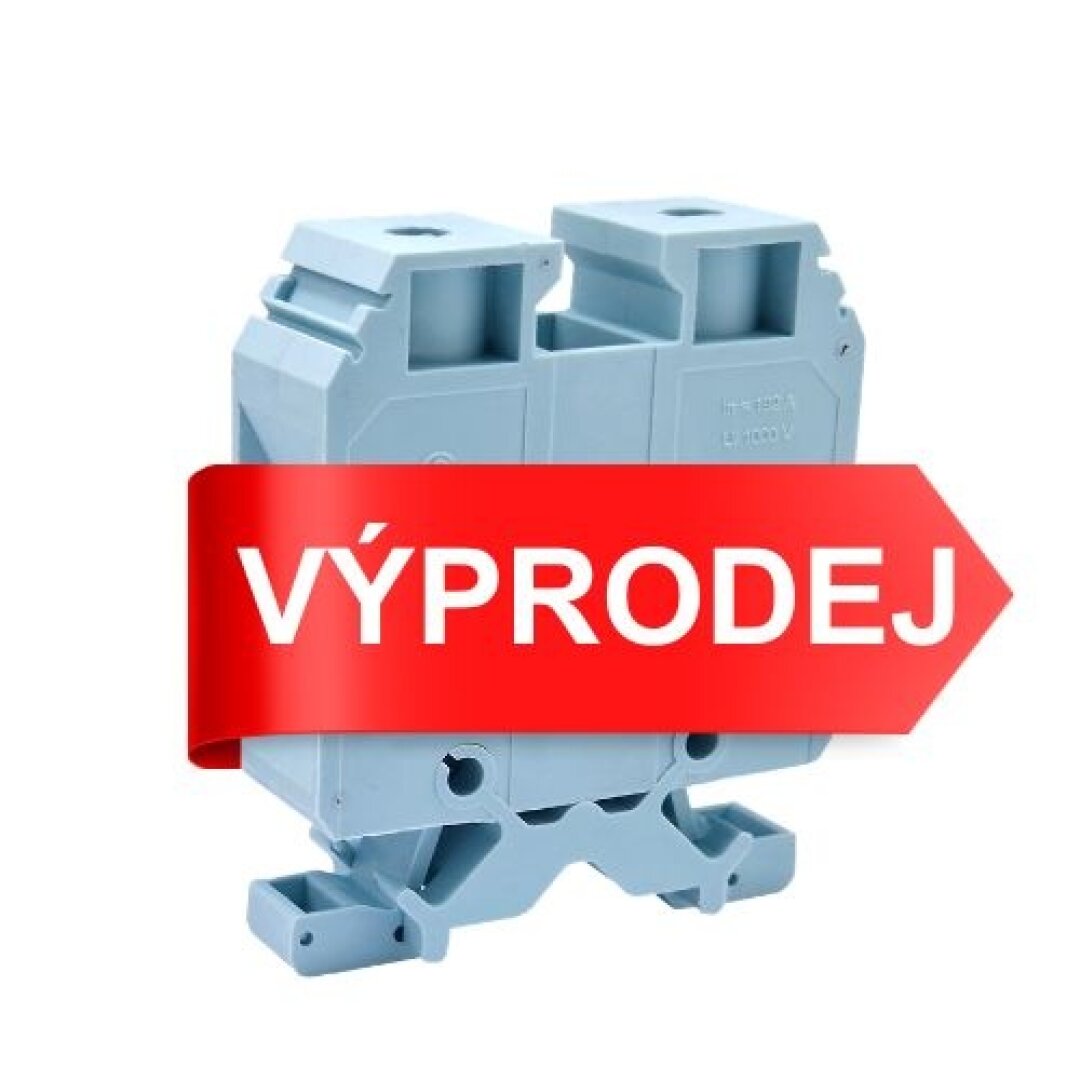

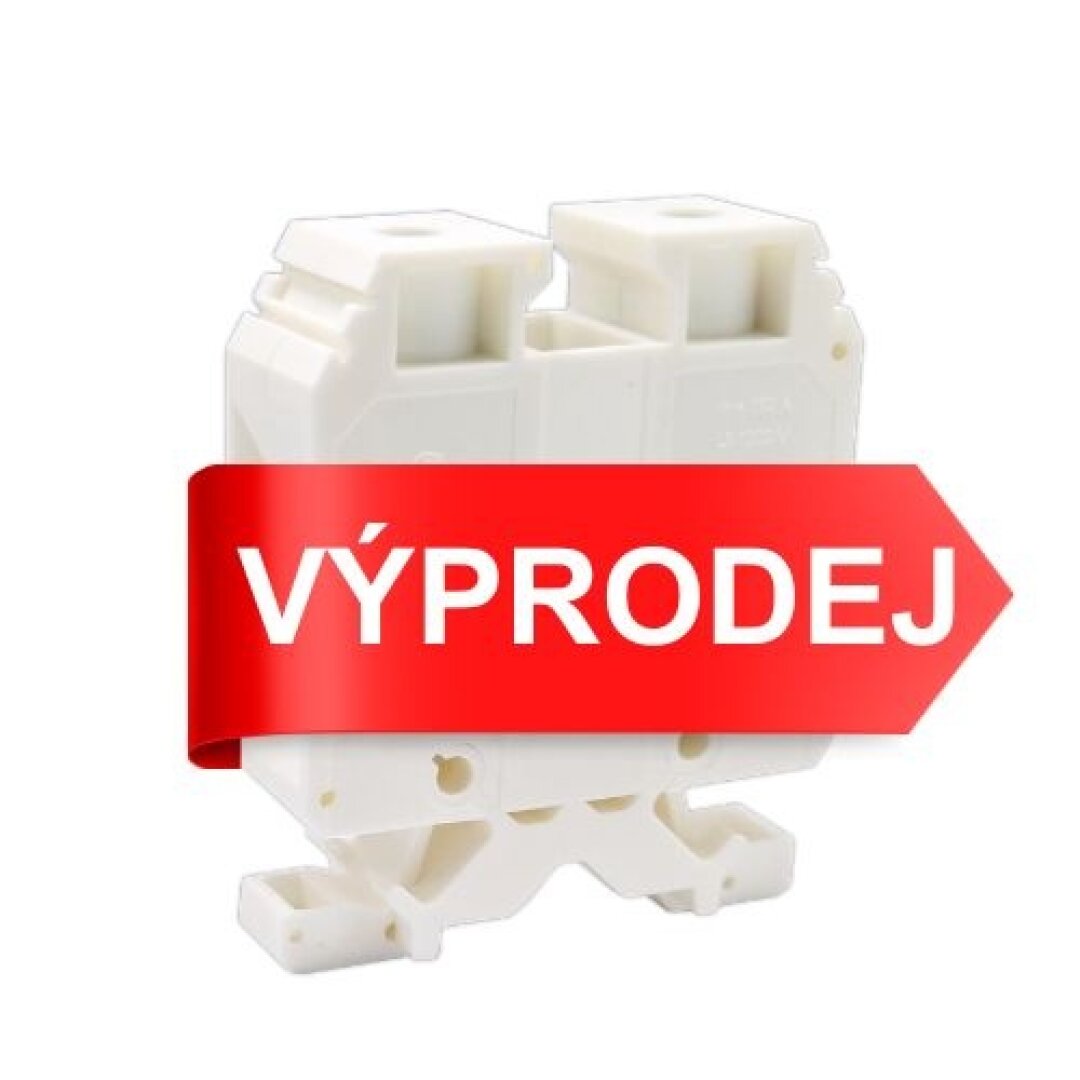

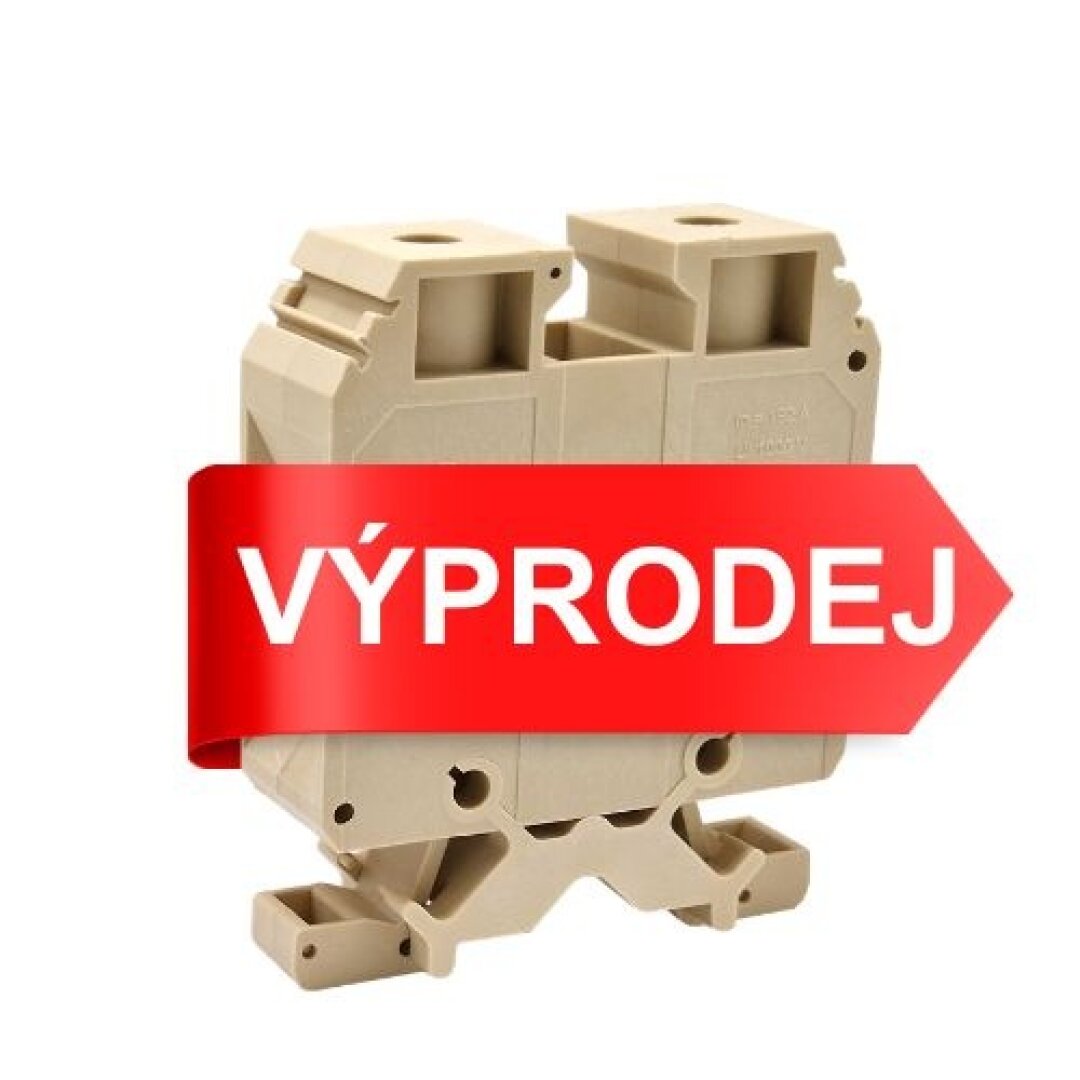

terminal blocks RSA 70 A

8,01 € without VAT 9,70 € with VAT

Choose a product variant

Rated cross-section [mm²]	70
Connection capacity [mm²]	10 ÷ 95
Rated current [A]	192
Rated current ATEX [A]	165
Short-time withstand current [A]	8400
Insulation voltage Ui [V]	1000 V
Voltage ATEX [V]	1000
Impulse voltage U (Imp) [V]	4000
Tightening torque [Nm]	6
Tools	Inbus č. 6
Assembly method (on DIN rail)	TH 35
Pollution degree	2
IP code	10
Operating temperature [°C]	-20 ÷ +105
Number of clamping points per level	2
Number of levels	1
End cover plate required	NO

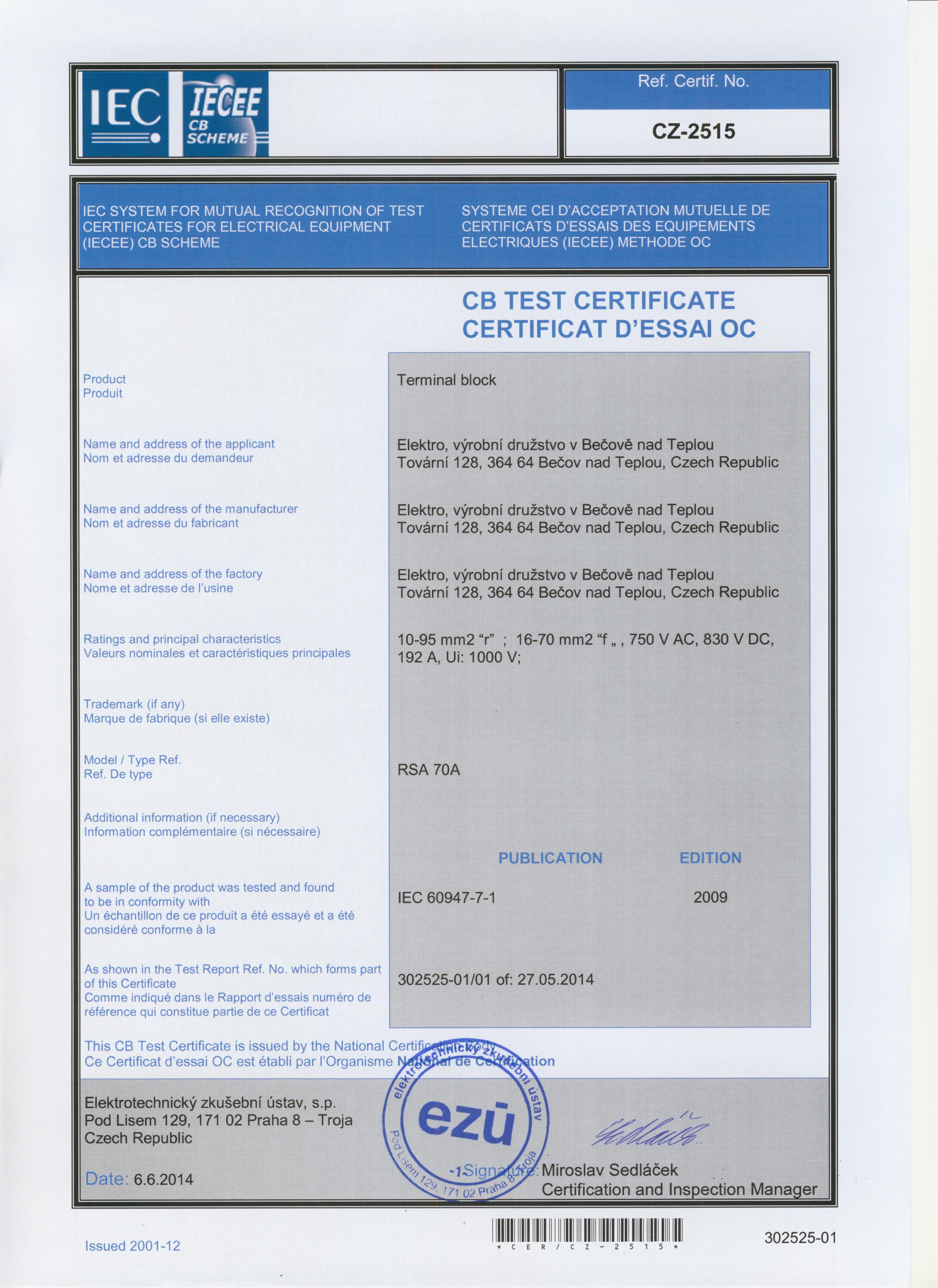

Testing	IEC 60947-7-1
ATEX approval	Ex II 2G Ex eb IIC Gb /Ex I M2 Ex eb I Mb
Dimensions [mm] (width / height / length)	24 / 85 / 70
Weight [g]	137
Packing [pcs]	10
Clamping screw	M 8 x 20

Solid conductor [mm²]	10 ÷ 16
Stranded conductor [mm²]	25 ÷ 95
Finely stranded conductor [mm²]	16 ÷ 70
2 x Solid conductor, stranded, finely stranded [mm²]	10 ÷ 16
Maximum conductor connection cross-section, fi nely stranded with wire-end ferrules with plastic collar [mm²]	70
Stripping length [mm]	18

Insulating body	Polyamide PA 6, flammability V0 halogen free
Electric conductive part	Brass (galvanic surfaced)
Fixing part	Thermally treated steel (galvanic surfaced)
