terminal blocks RSA 6 A

0,76 € without VAT 0,92 € with VAT

Choose a product variant

Rated cross-section [mm²]	6
Rated current [A]	41
Short-time withstand current [A]	720
Insulation voltage Ui [V]	1000
Impulse voltage U (Imp) [V]	8000
Tightening torque [Nm]	0,8
Tools	Screwdriver PH 1 / 0,8 x 4
Assembly method (on DIN rail)	TH 35
Pollution degree	2
IP code	20
Operating temperature [°C]	-40 - +105
Number of clamping points per level	2
Number of levels	1
End cover plate required	YES

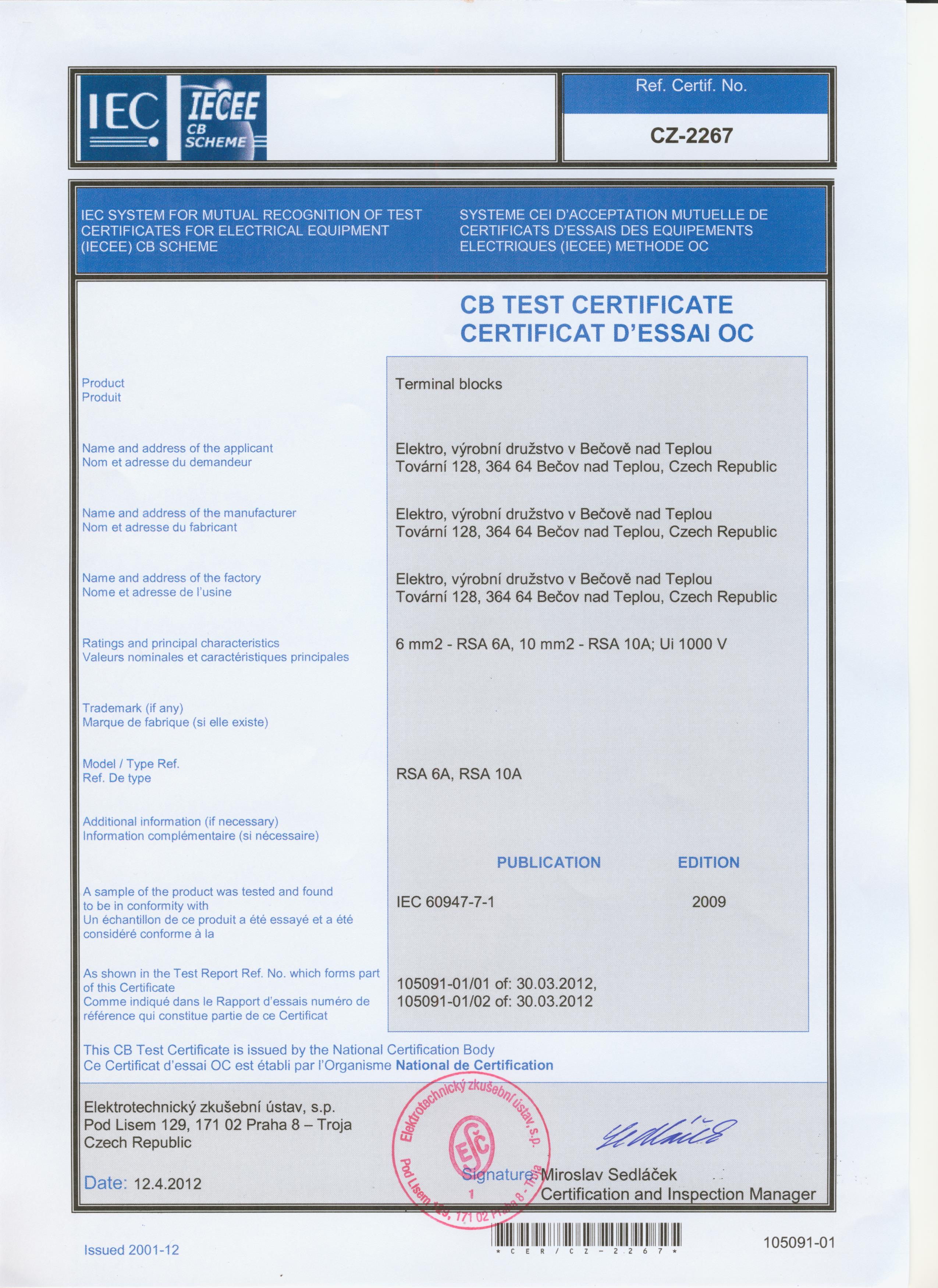

Testing	ČSN EN 60947-7-1
Dimensions [mm] (width / height / length)	8 / 45,2 / 50
Weight [g]	14
Packing [pcs]	100
Clamping screw	M 3,5 x 8,8
Note	To meet and comply with legislative and safety requirements when installing RSA 6 A and RSA 10 A interconnections, it is necessary to use side partitions.

Solid conductor [mm²]	0,5 - 10
Stranded conductor [mm²]	0,5 - 10
Finely stranded conductor [mm²]	0,5 - 6
2 x Solid conductor, stranded, finely stranded [mm²]	2,5
3 x Solid conductor, stranded, finely stranded [mm²]	0,5 - 1,5
Maximum conductor connection cross-section, fi nely stranded with wire-end ferrules with plastic collar [mm²]	6
Stripping length [mm]	12

Insulating body	Polyamide PA 6, flammability V0 halogen free
Electric conductive part	Copper (galvanic surface)
Fixing part	Thermally treated steel (galvanic surfaced)
