terminal blocks RSA 4 A
0,58 € without VAT 0,71 € with VAT
terminal blocks RSA 4 A
| Rated cross-section [mm²] | 4 |
| Connection capacity [mm²] | 0,5 ÷ 6 |
| Rated current [A] | 32 |
| Short-time withstand current [A] | 480 |
| Insulation voltage Ui [V] | 1000 V AC / 1500 V DC |
| Impulse voltage U (Imp) [V] | 8000 |
| Tightening torque [Nm] | 0,5 |
| Tools | Screwdriver PH 0 / 0,5 x 3 |
| Assembly method (on DIN rail) | TH 15, TH 35, G 32 |
| Pollution degree | 2 |
| IP code | 20 |
| Operating temperature [°C] | -40 ÷ +105 |
| Number of clamping points per level | 2 |
| Number of levels | 1 |
| End cover plate required | YES |

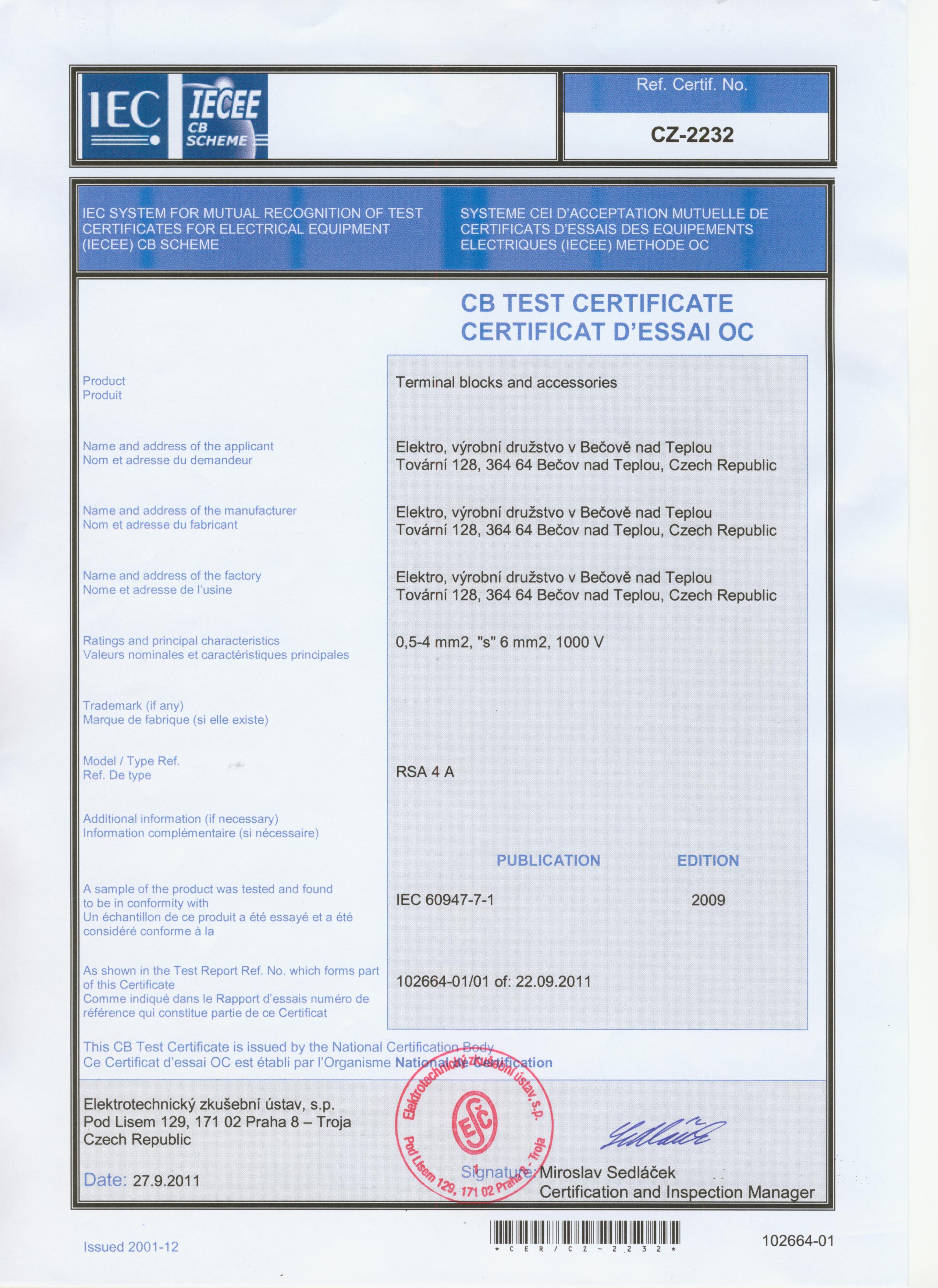

| Testing | IEC 60947-7-1 |
| Dimensions [mm] (width / height / length) | 6,6 / 39 / 41,5 |
| Weight [g] | 8 |
| Packing [pcs] | 100 |
| Clamping screw | M 3 x 7 |
| Solid conductor [mm²] | 0,5 ÷ 6 |
| Stranded conductor [mm²] | 0,5 ÷ 4 |
| Finely stranded conductor [mm²] | 0,5 ÷ 4 |
| 2 x Solid conductor, stranded, finely stranded [mm²] | 0,5 ÷ 2,5 |
| 3 x Solid conductor, stranded, finely stranded [mm²] | 0,5 ÷ 1 |
| Maximum conductor connection cross-section, fi nely stranded with wire-end ferrules with plastic collar [mm²] | 4 |
| Stripping length [mm] | 10 |
| Insulating body | Polyamide PA 6, flammability V0 halogen free |
| Electric conductive part | Brass (galvanic surfaced) |
| Fixing part | Thermally treated steel (galvanic surfaced) |
