terminal blocks RSA 10 A

1,01 € without VAT 1,23 € with VAT

Choose a product variant

Rated cross-section [mm²]	10
Rated current [A]	57
Short-time withstand current [A]	1200
Insulation voltage Ui [V]	1000
Impulse voltage U (Imp) [V]	8000
Tightening torque [Nm]	1,2
Tools	Screwdriver PH 2 / 1 x 5,5
Assembly method (on DIN rail)	TH 35
Pollution degree	2
IP code	20
Operating temperature [°C]	-40 - +105
Number of clamping points per level	2
Number of levels	1
End cover plate required	YES

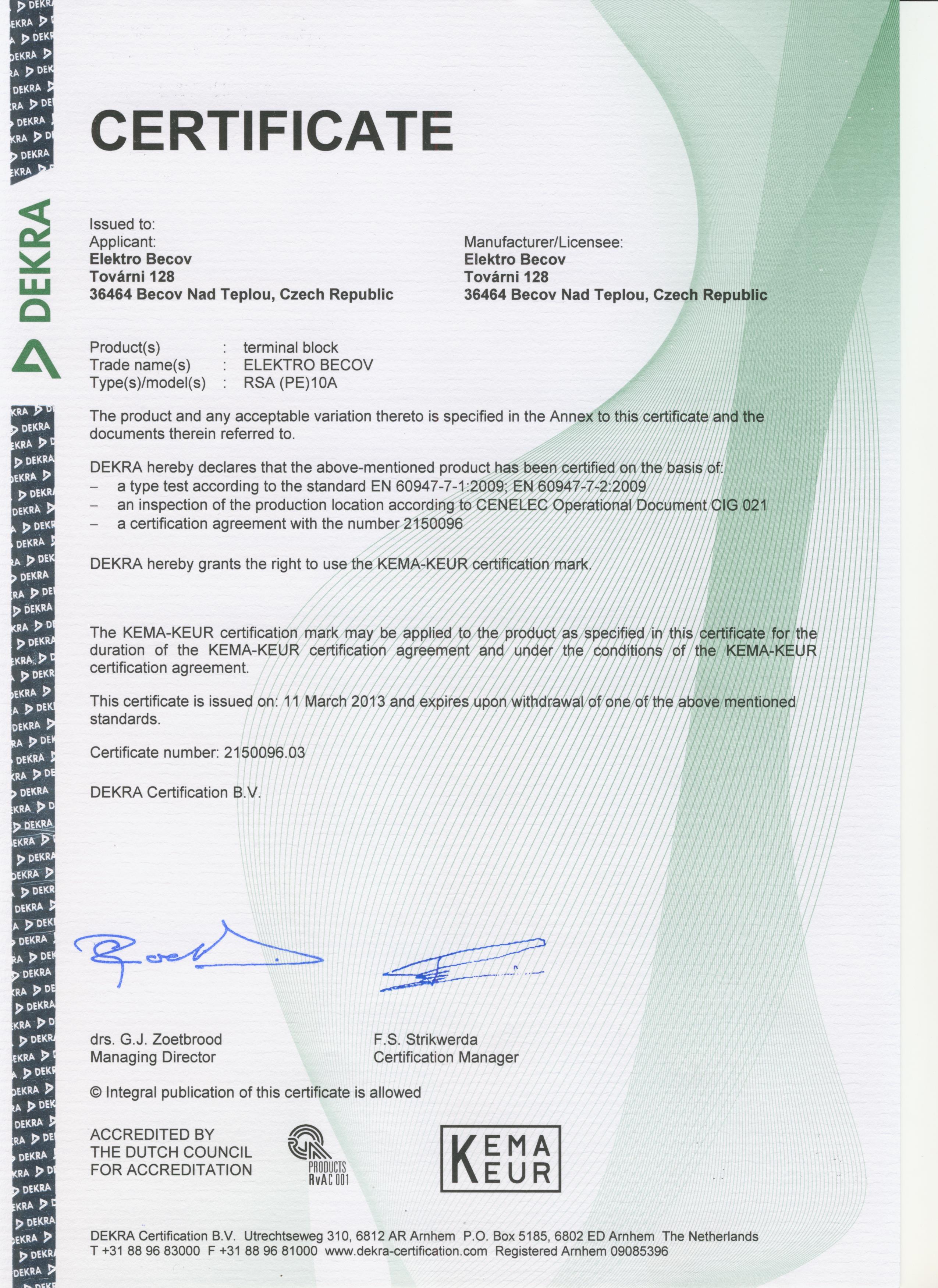

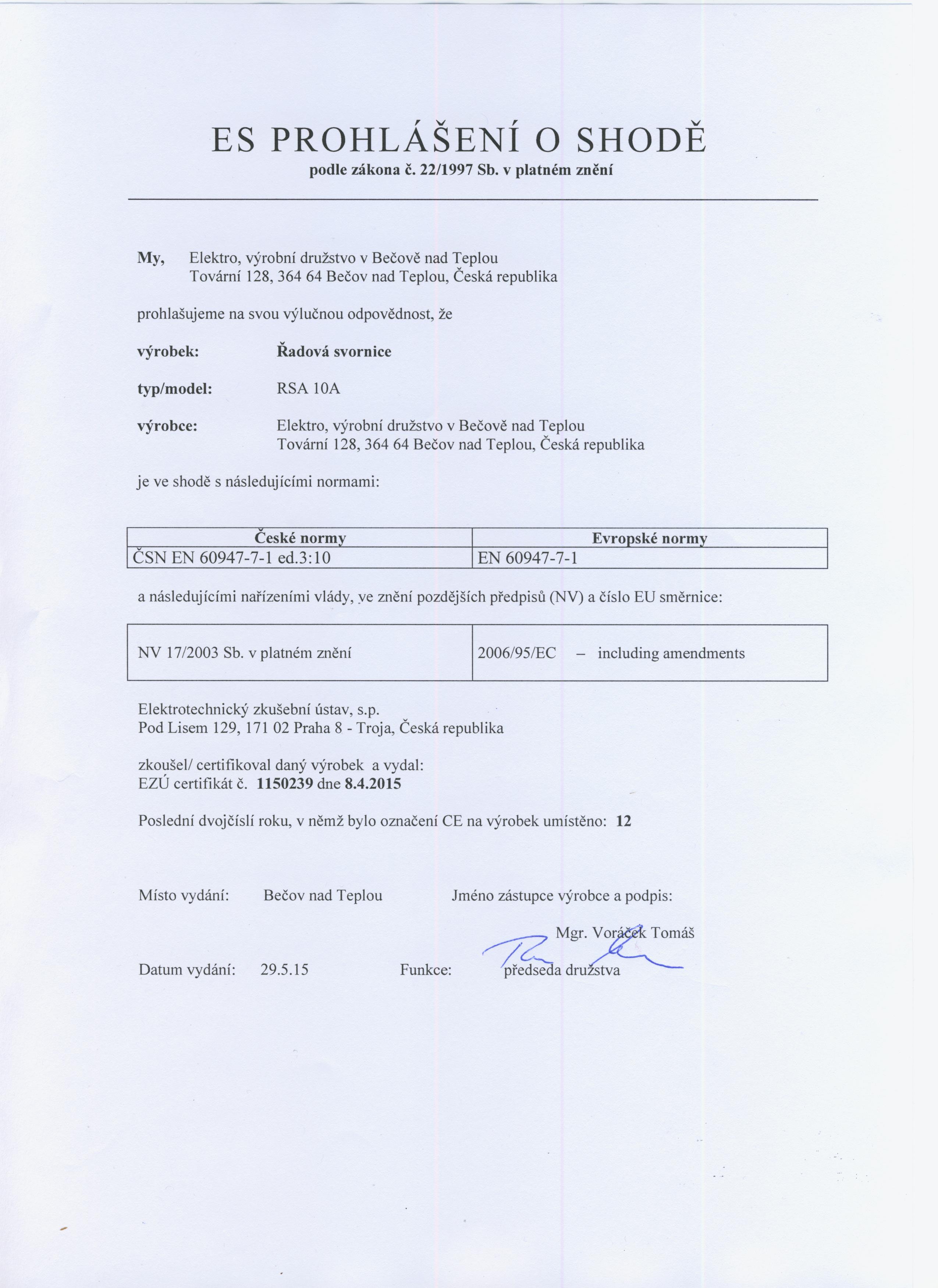

Testing	ČSN EN 60947-7-1
Dimensions [mm] (width / height / length)	10 / 45,2 / 50
Weight [g]	19
Packing [pcs]	50
Clamping screw	M4 x 8,8
Note	To meet and comply with legislative and safety requirements when installing RSA 6 A and RSA 10 A interconnections, it is necessary to use side partitions.

Solid conductor [mm²]	1,5 - 16
Stranded conductor [mm²]	1,5 - 16
Finely stranded conductor [mm²]	1,5 - 10
2 x Solid conductor, stranded, finely stranded [mm²]	1,5 - 4
3 x Solid conductor, stranded, finely stranded [mm²]	1,5 - 2,5
Maximum conductor connection cross-section, fi nely stranded with wire-end ferrules with plastic collar [mm²]	10
Stripping length [mm]	12

Insulating body	Polyamide PA 6, flammability V0 halogen free
Electric conductive part	Copper (galvanic surface)
Fixing part	Thermally treated steel (galvanic surfaced)
