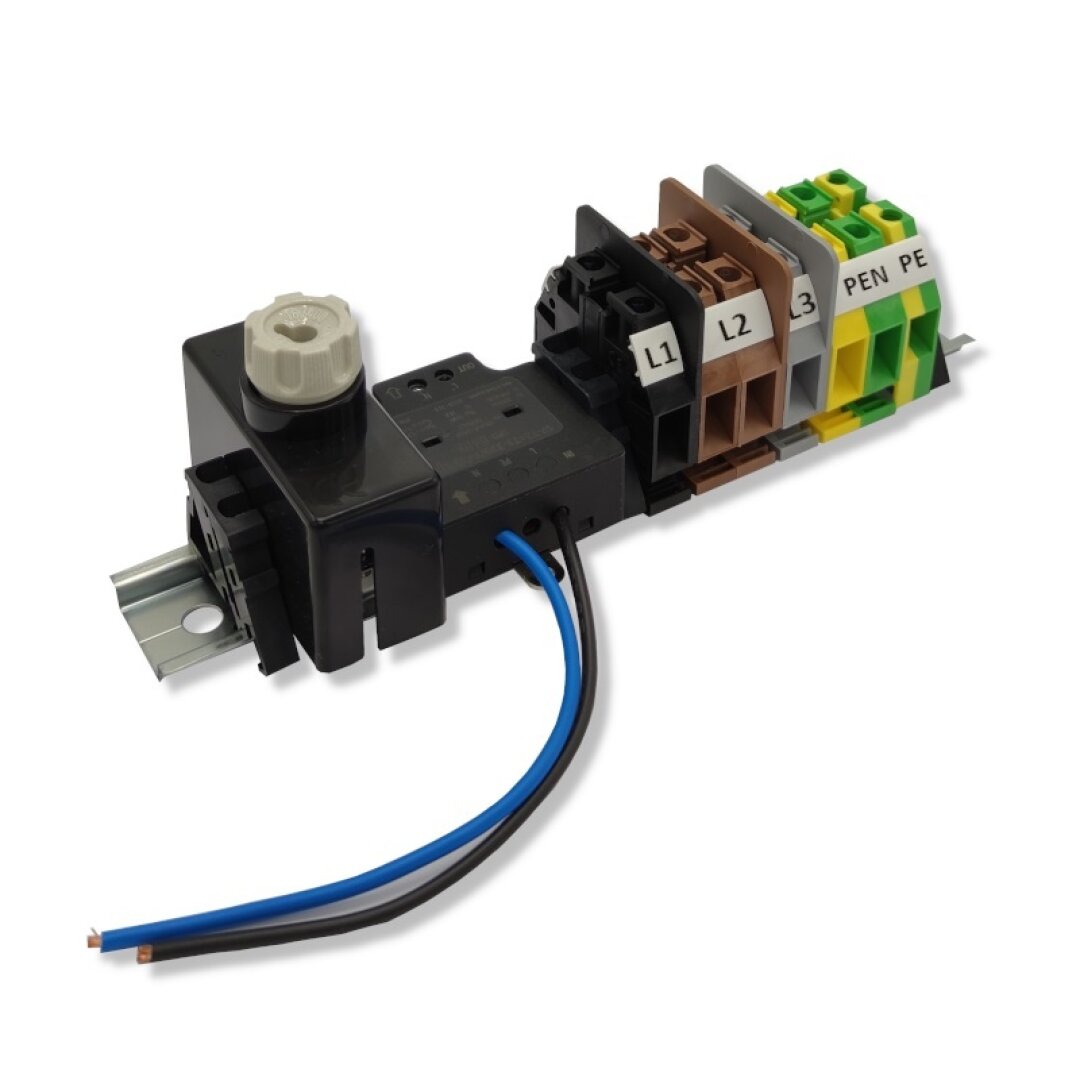

SV- A - 6.16.4p,Saltek SP-T2+3-320/Y-CLT

Manufacturer Code: H611104
91,95 € without VAT 111,26 € with VAT
SV- A - 6.16.4p,Saltek SP-T2+3-320/Y-CLT
Rated cross-section [mm²] 16
Rated current [A] 76
Rated voltage Ui [V] 1 000
Rated impulse withstand voltage Uimp [V] 4 000
Clamped conductor range [mm²] (solid conductor) 1,5 ÷ 16
Composition of the terminal block (Main terminal) 7 x RSA 16 A
Composition of the terminal block (Main terminal for PE conductors) 1 x RSA PE 16 A
Composition of the terminal block (Fuse terminal) 1 x E 14
Composition of the terminal block (Overvoltage protection) SP-T2+3-320/Y-CLT
Tightening torque [Nm] terminal blocks / fuse clamp 2 / 0,5
Tools terminal blocks / fuse clamp PH 2 / PH 0
Pollution degree 2
IP code 20
Operating temperature [°C] -40 ÷ +55
Testing EN 60947-7-1; EN 60947-7-2; EN 60947-7-3
Recyklační příspěvek součástí ceny výrobku [Kč] 0,060

Dimensions

A [mm] 75
B [mm] 73
C [mm] 188
C1 [mm] 40
L [mm] 280
