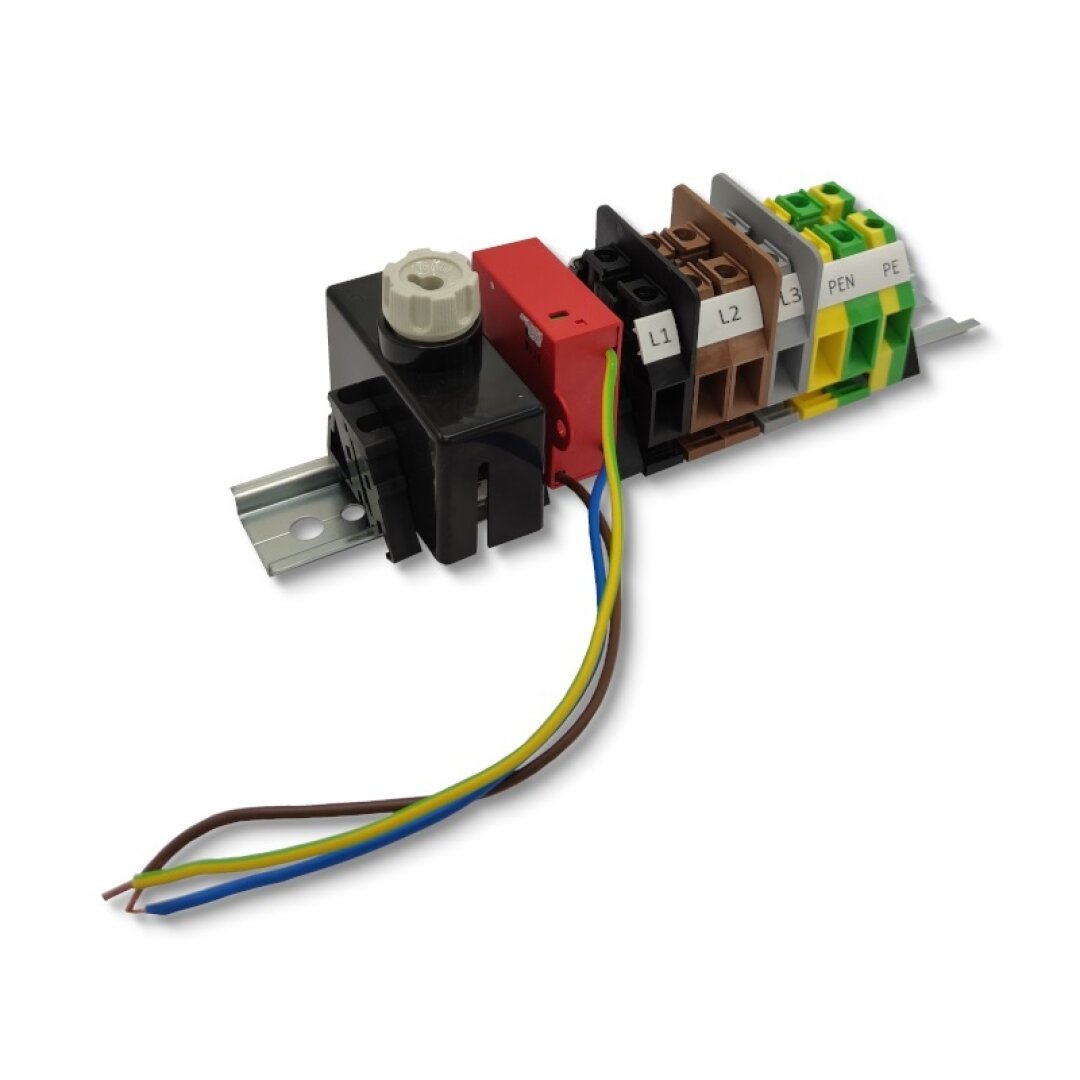

SV - A - 6.16.4p, Dehn DCOR L 2P 275

Manufacturer Code: H415110
91,95 € without VAT 111,26 € with VAT
SV - A - 6.16.4p, Dehn DCOR L 2P 275
Rated cross-section [mm²] 16
Rated current [A] 76
Rated voltage Ui [V] 1 000
Rated impulse withstand voltage Uimp [V] 4 000
Clamped conductor range [mm²] (solid conductor) 1,5 - 16
Composition of the terminal block (Main terminal) 7 x RSA 16 A
Composition of the terminal block (Main terminal for PE conductors) 1 x RSA PE 16 A
Composition of the terminal block (Fuse terminal) 1 x E14
Composition of the terminal block (Overvoltage protection) 1 x DCOR L 2P 275
Tightening torque [Nm] terminal blocks / fuse clamp 2 / 0,5
Tools terminal blocks / fuse clamp PH2 / PH0
Pollution degree 2
IP code 20
Operating temperature [°C] -40 - +55
Testing ČSN EN 60947-7-1; ČSN EN 60947-7-2; ČSN EN 60947-7-3

Dimensions

A [mm] 75
B [mm] 73
C [mm] 188
C1 [mm] 40
L [mm] 280
