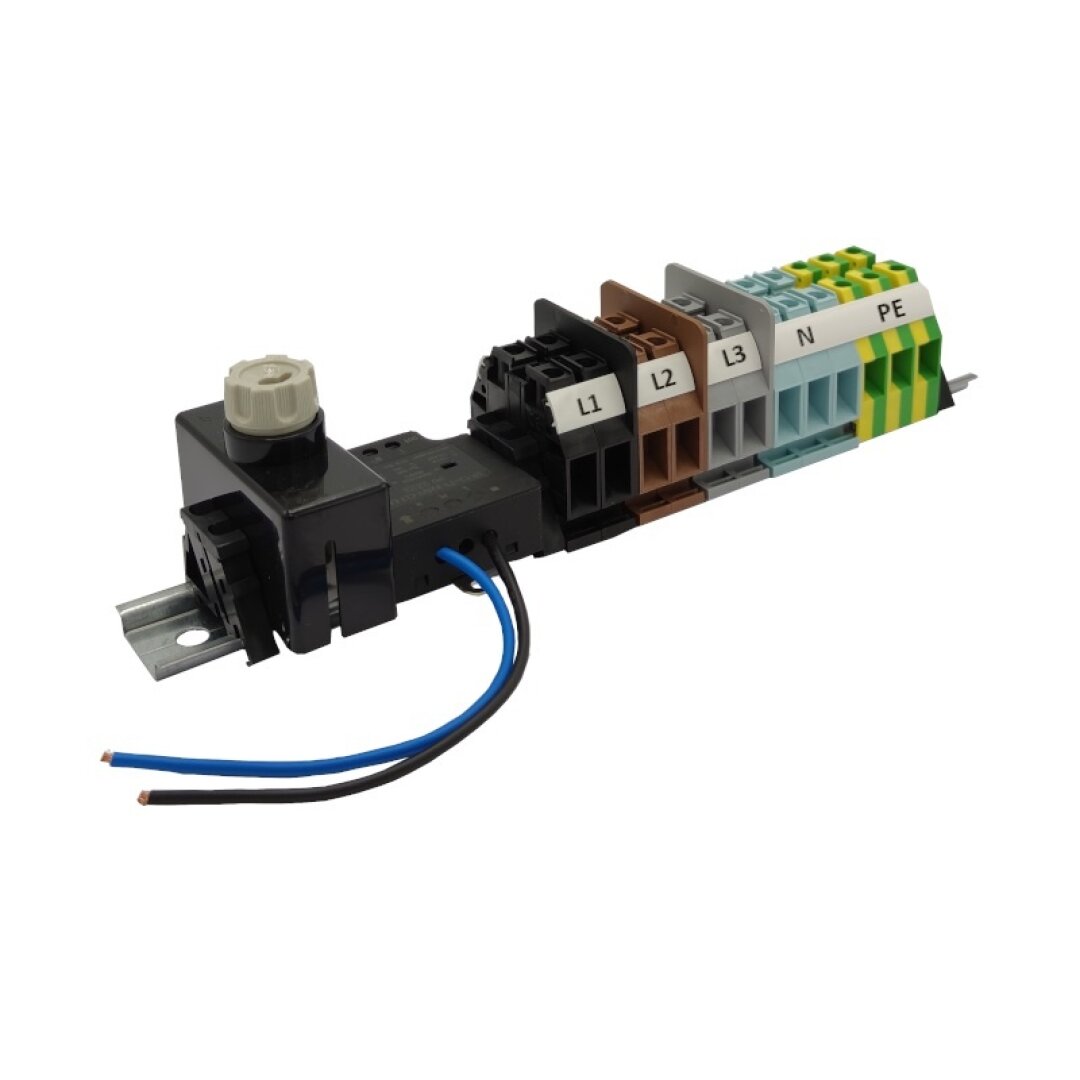

SV- A - 9.16.5p,Saltek SP-T2+3-320/Y-CLT
Manufacturer Code: H611111
105,22 € without VAT 127,31 € with VAT
SV- A - 9.16.5p,Saltek SP-T2+3-320/Y-CLT
| Rated cross-section [mm²] | 16 |
| Rated current [A] | 76 |
| Rated voltage Ui [V] | 1 000 |
| Rated impulse withstand voltage Uimp [V] | 4 000 |
| Clamped conductor range [mm²] (solid conductor) | 1,5 ÷ 16 |
| Composition of the terminal block (Main terminal) | 9 x RSA 16 A |
| Composition of the terminal block (Main terminal for PE conductors) | 3 x RSA PE 16 A |
| Composition of the terminal block (Fuse terminal) | 1 x E 14 |
| Composition of the terminal block (Overvoltage protection) | SP-T2+T3-320/Y-CLT-LED |
| Tightening torque [Nm] terminal blocks / fuse clamp | 2 / 0,5 |
| Tools terminal blocks / fuse clamp | PH 2 / PH 0 |
| Pollution degree | 2 |
| IP code | 20 |
| Operating temperature [°C] | -40 ÷ +55 |
| Testing | EN 60947-7-1; EN 60947-7-2; EN 60947-7-3 |
| Recyklační příspěvek součástí ceny výrobku [Kč] | 0,060 |
| A [mm] | 75 |
| B [mm] | 73 |
| C [mm] | 248 |
| C1 [mm] | 40 |
| L [mm] | 350 |
