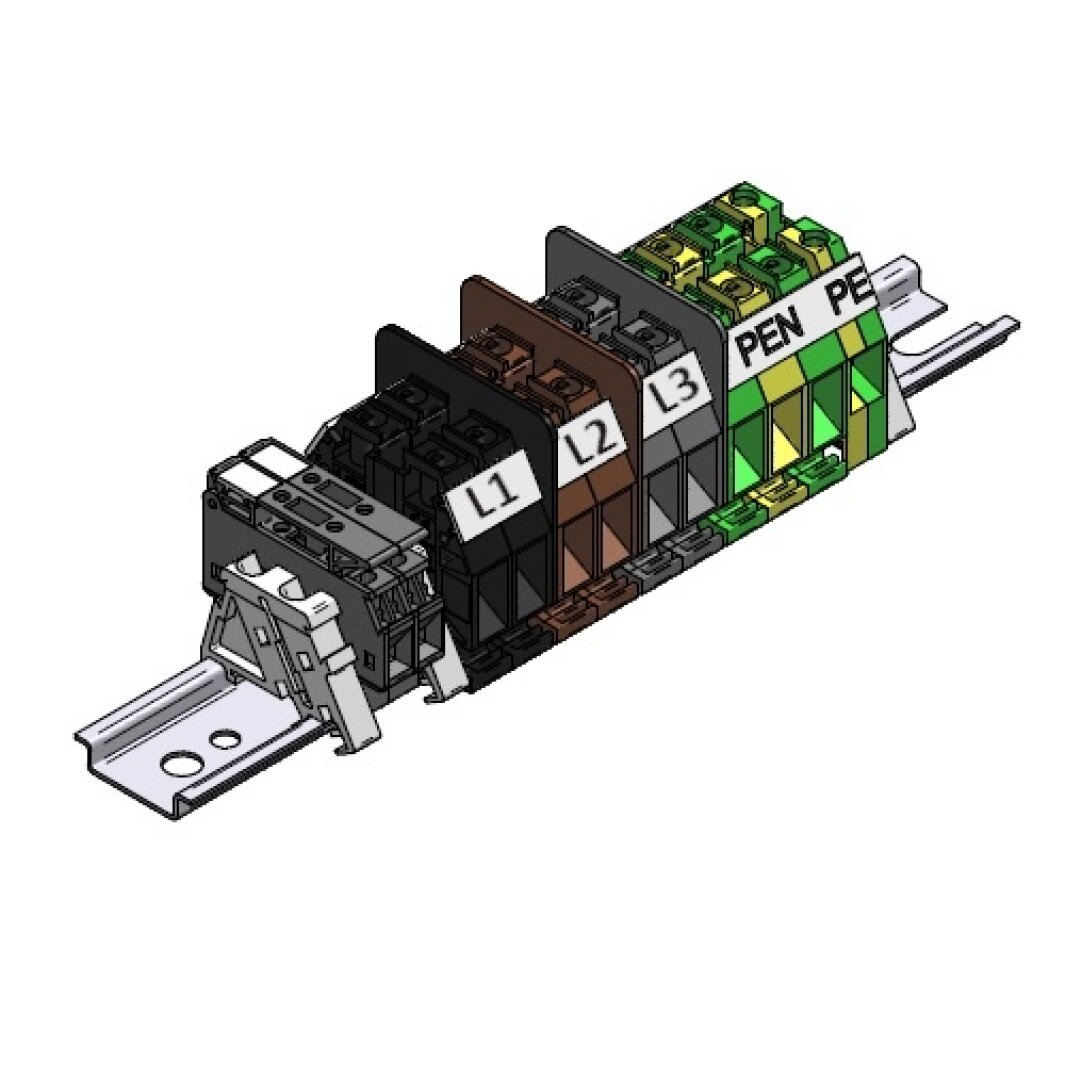

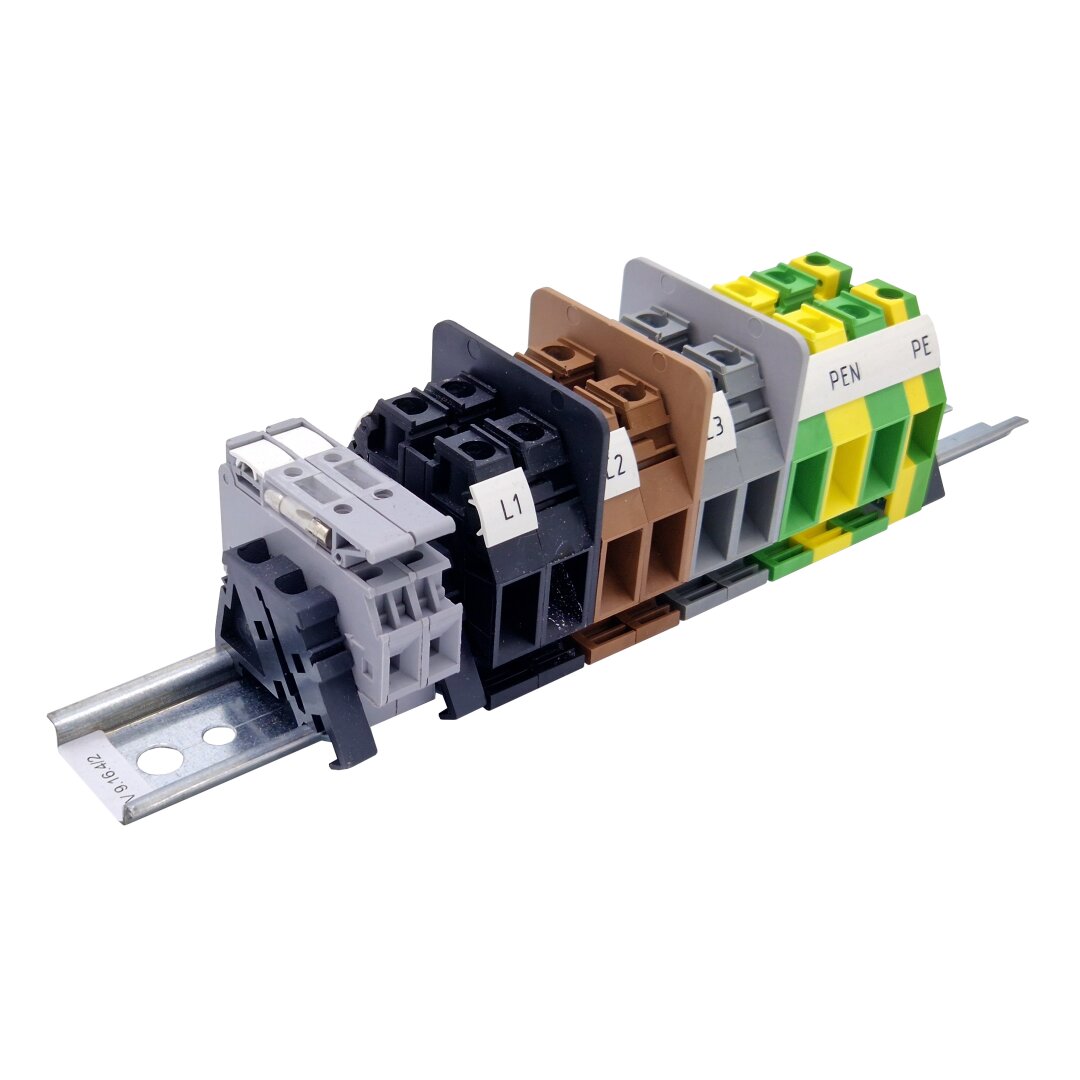

SV 9.16.4/2
Manufacturer Code: H126115
28,21 € without VAT 34,13 € with VAT
SV 9.16.4/2
| Rated cross-section [mm²] | 16 |
| Rated current [A] | 76 |
| Rated voltage Ui [V] | 1 000 |
| Rated impulse withstand voltage Uimp [V] | 4 000 |
| Clamped conductor range [mm²] (solid conductor) | 1,5 - 16 |
| Composition of the terminal block (Main terminal) | 9 x RSA 16 A |
| Composition of the terminal block (Main terminal for PE conductors) | 1 x RSA PE 16 A |
| Composition of the terminal block (Fuse terminal) | 2 x RSP 4 |
| Maximum scattered power Pvk [W] by disposition / Rated current of fuse [A] (independent) | 2 / 6,3 |
| Maximum scattered power Pvk [W] by disposition / Rated current of fuse [A] (combined) | 1 / 6,3 |
| Size of fusible fuse insert | Ceramic F, M, T, size 5×20, rated current 6,3 A |
| Tightening torque [Nm] terminal blocks / fuse clamp | 2 / 0,5 |
| Tools terminal blocks / fuse clamp | PH2 / PH0 |
| Pollution degree | 2 |
| IP code | 20 |
| Operating temperature [°C] | -40 - +55 |
| Testing | ČSN EN 60947-7-1; ČSN EN 60947-7-2; ČSN EN 60947-7-3 |
| A [mm] | 55 |
| B [mm] | 61 |
| C [mm] | 170 |
| C1 [mm] | 40 |
| L [mm] | 250 |
