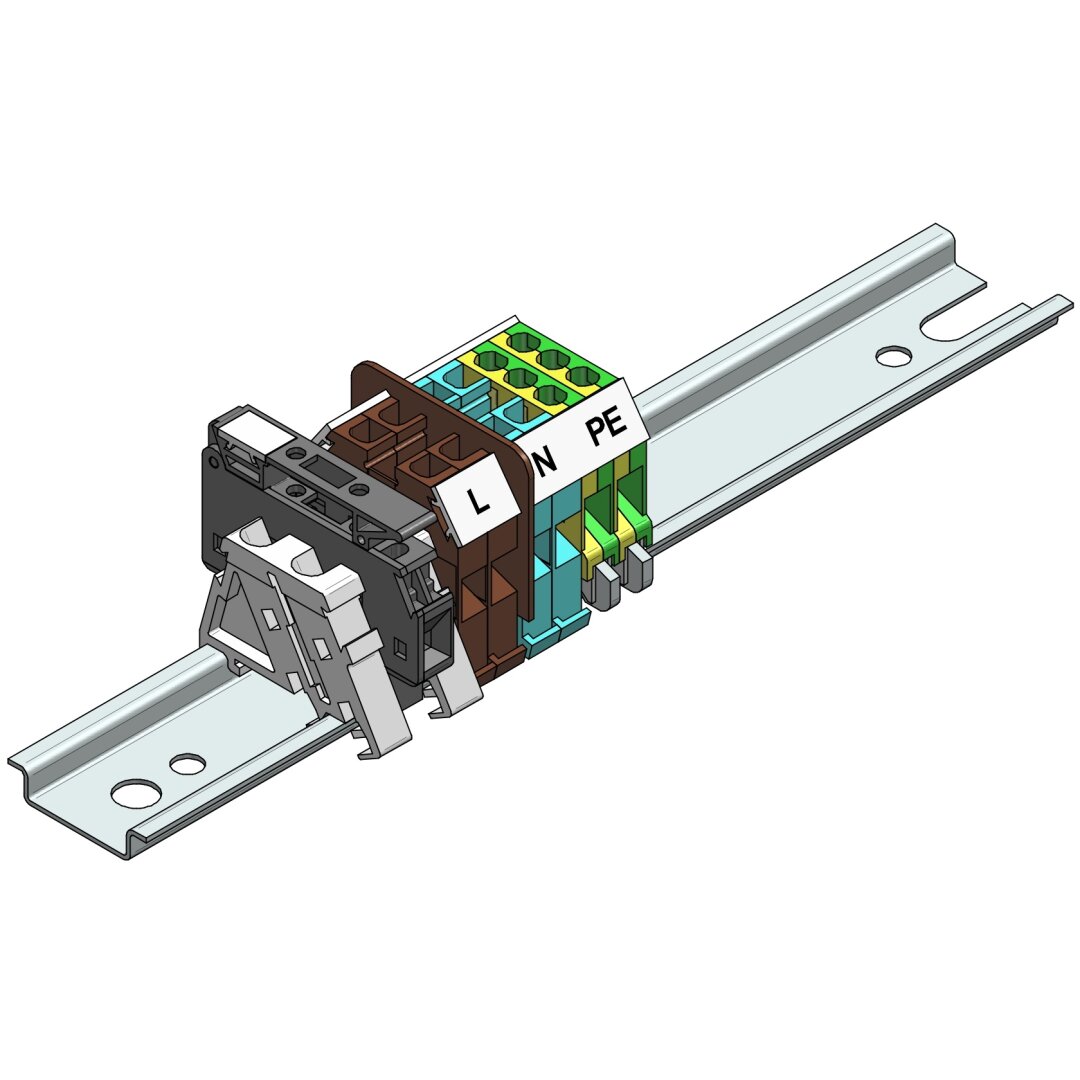

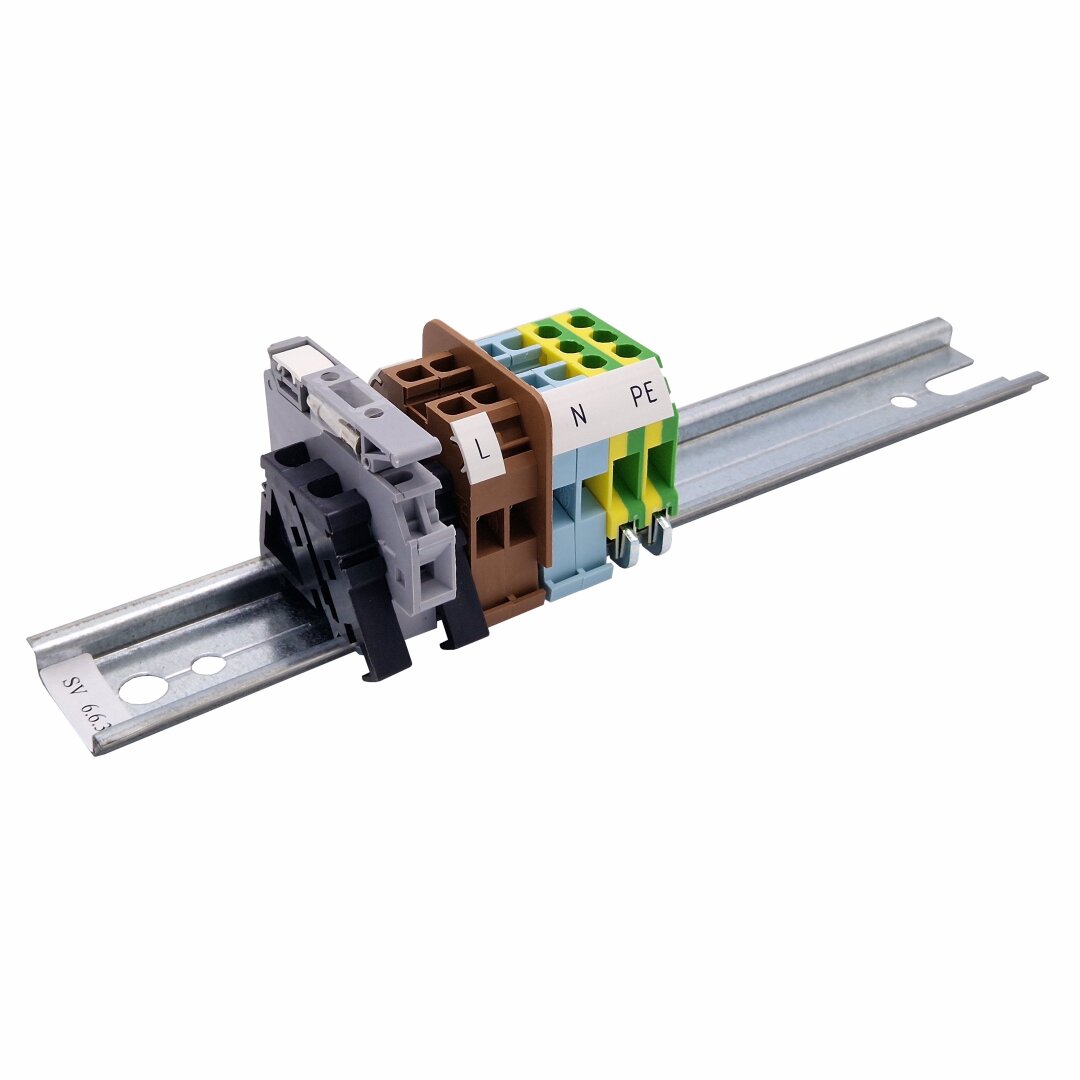

SV 6.6.3

Manufacturer Code: H111434
9,71 €without VAT11,75 €with VAT
SV 6.6.3
Rated cross-section [mm²]6
Rated current [A]41
Rated voltage Ui [V]1 000
Rated impulse withstand voltage Uimp [V]4 000
Clamped conductor range [mm²] (solid conductor)1 - 6
Composition of the terminal block (Main terminal)4 x RSA 6 A
Composition of the terminal block (Main terminal for PE conductors)2 x RSA PE 6 A
Composition of the terminal block (Fuse terminal)1 x RSP 4
Maximum scattered power Pvk [W] by disposition / Rated current of fuse [A] (independent) 2 / 6,3
Maximum scattered power Pvk [W] by disposition / Rated current of fuse [A] (combined)1 / 6,3
Size of fusible fuse insertCeramic F, M, T, size 5×20, rated current 6,3 A
Tightening torque [Nm] terminal blocks / fuse clamp0,8 / 0,5
Tools terminal blocks / fuse clampPH1 / PH0
Pollution degree2
IP code20
Operating temperature [°C]-40 - +55
TestingČSN EN 60947-7-1; ČSN EN 60947-7-2; ČSN EN 60947-7-3

Dimensions

A [mm]55
B [mm]48
C [mm]75
C1 [mm]50
L [mm]235
