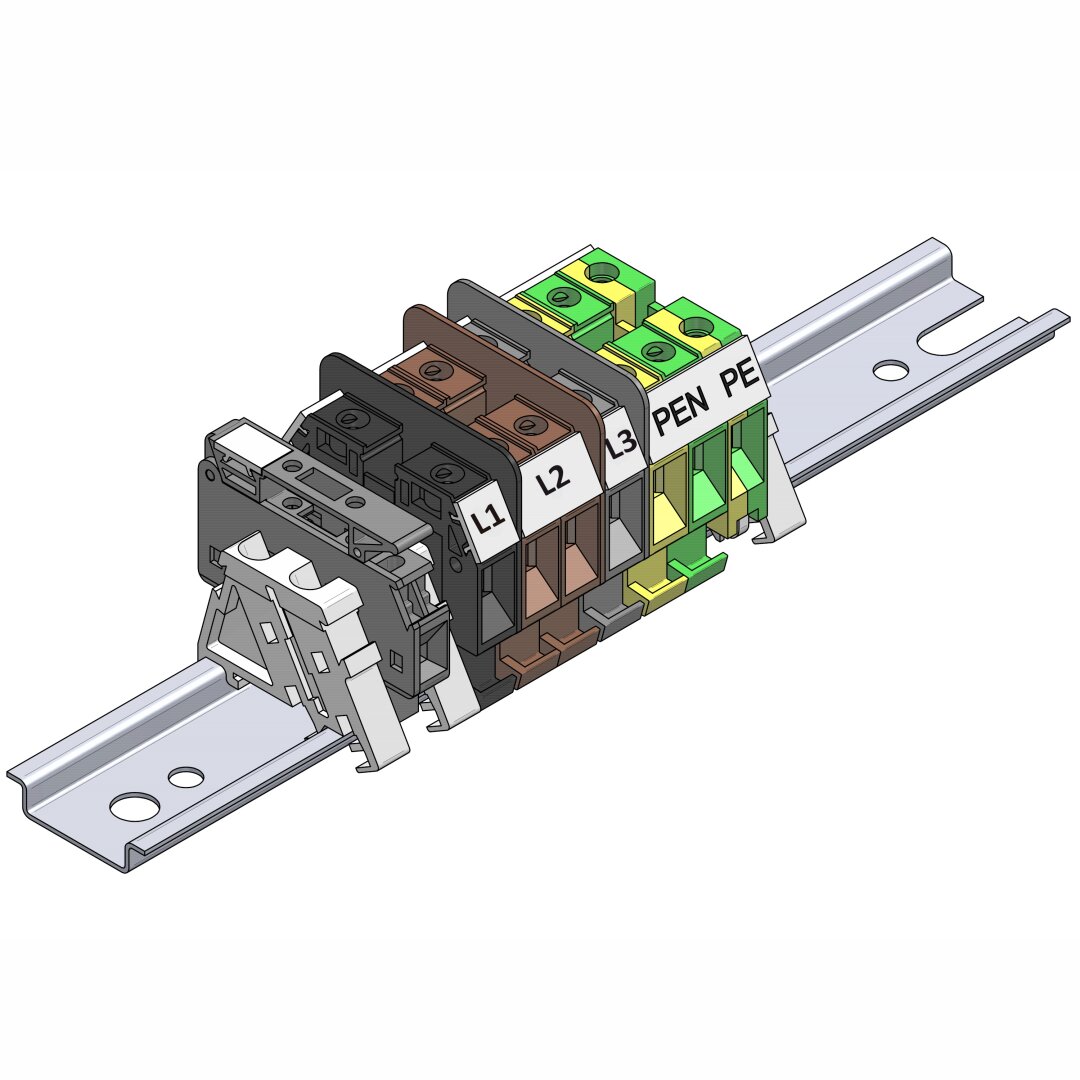

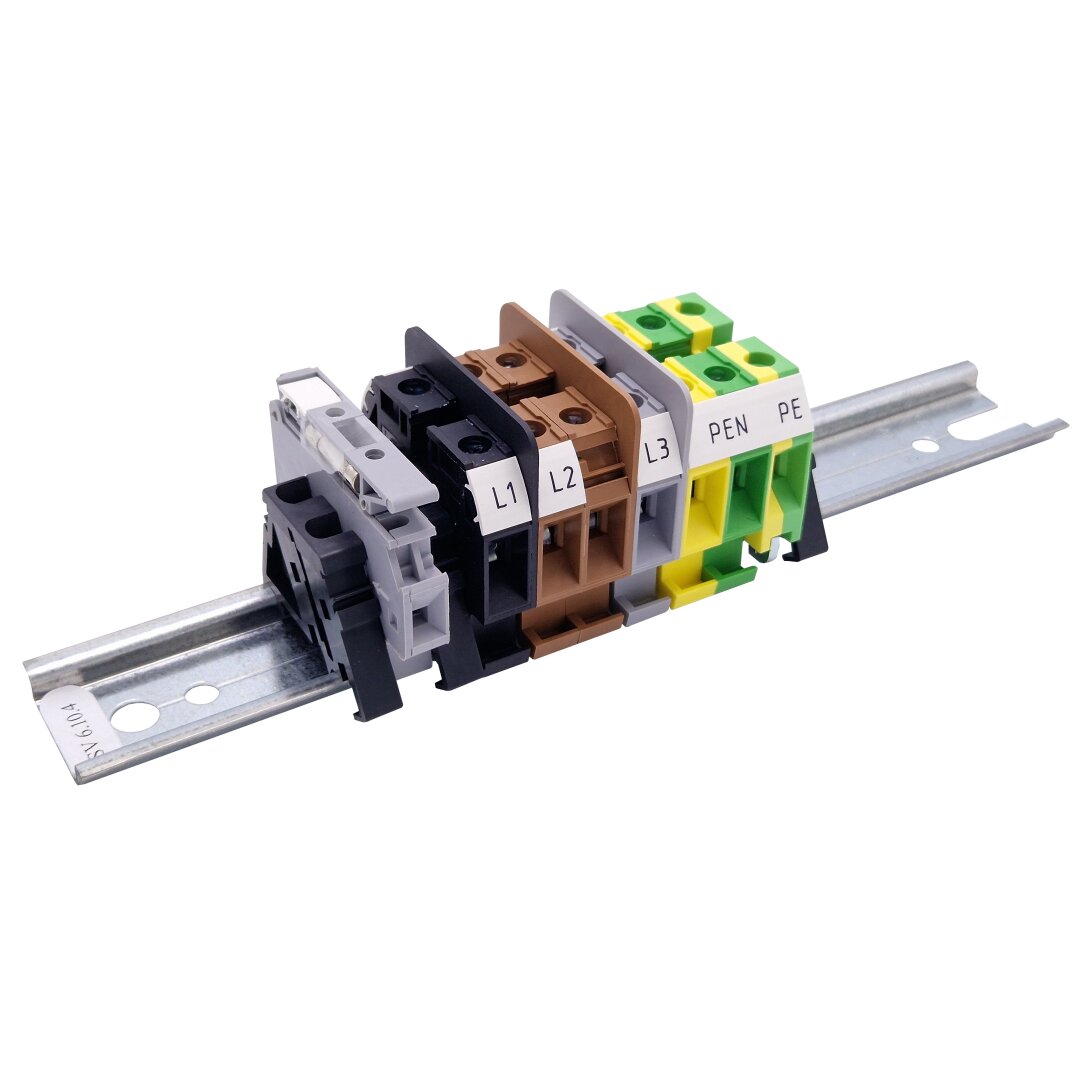

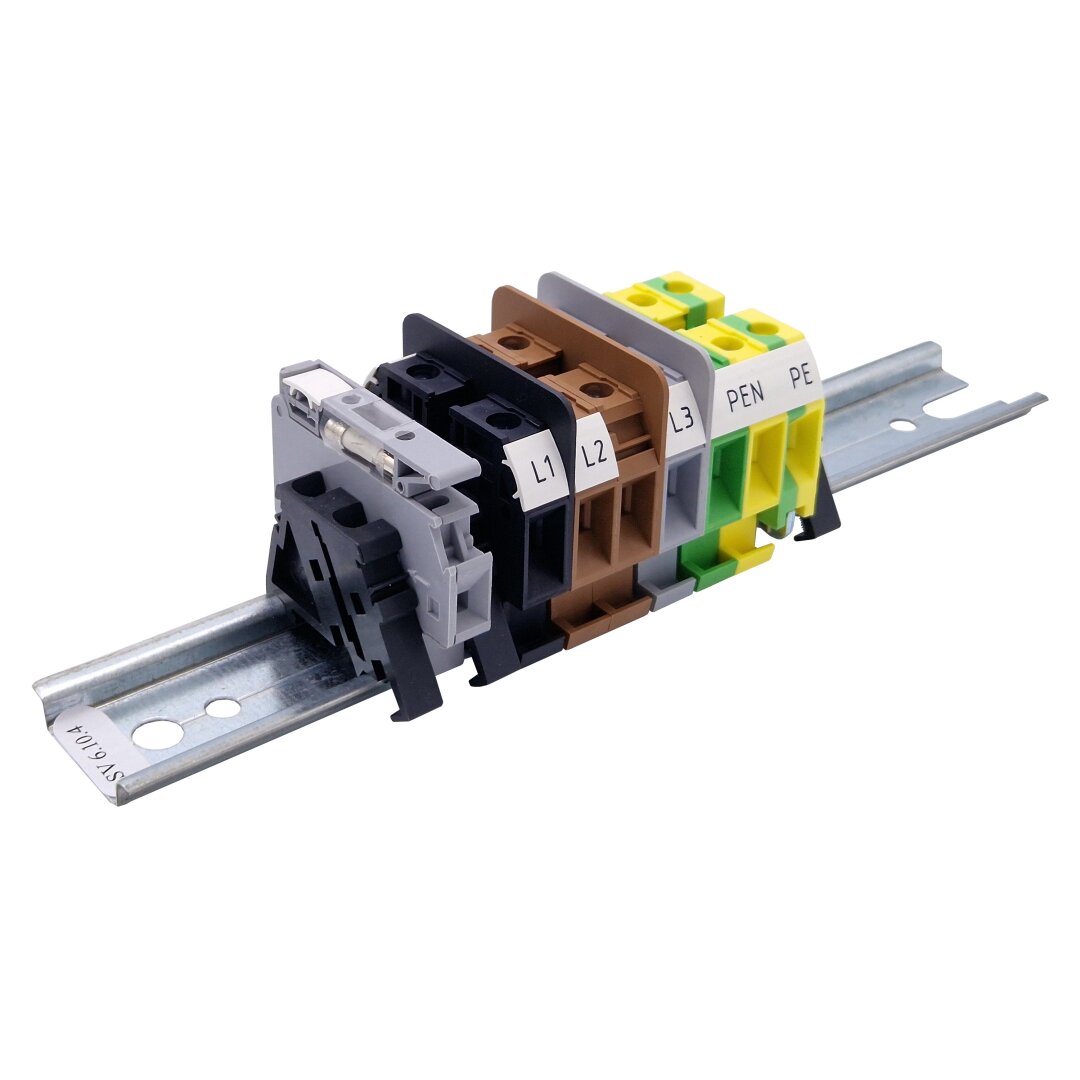

SV 6.10.4

Manufacturer Code: H111314
15,47 € without VAT 18,71 € with VAT
SV 6.10.4
Rated cross-section [mm²] 10
Rated current [A] 57
Rated voltage Ui [V] 1 000
Rated impulse withstand voltage Uimp [V] 4 000
Clamped conductor range [mm²] (solid conductor) 1,5 ÷ 16
Composition of the terminal block (Main terminal) 6 x RSA 10 A
Composition of the terminal block (Main terminal for PE conductors) 1 x RSA PE 10 A
Composition of the terminal block (Fuse terminal) 1 x RSP 4
Maximum scattered power Pvk [W] by disposition / Rated current of fuse [A] (independent) 2 / 6,3
Maximum scattered power Pvk [W] by disposition / Rated current of fuse [A] (combined) 1 / 6,3
Size of fusible fuse insert Ceramic F, M, T, size 5×20, rated current 6,3 A
Tightening torque [Nm] terminal blocks / fuse clamp 1,2 / 0,5
Tools terminal blocks / fuse clamp PH2 / PH0
Pollution degree 2
IP code 20
Operating temperature [°C] -40 - +55
Testing ČSN EN 60947-7-1; ČSN EN 60947-7-2; ČSN EN 60947-7-3

Dimensions

A [mm] 55
B [mm] 54
C [mm] 110
C1 [mm] 50
L [mm] 235
