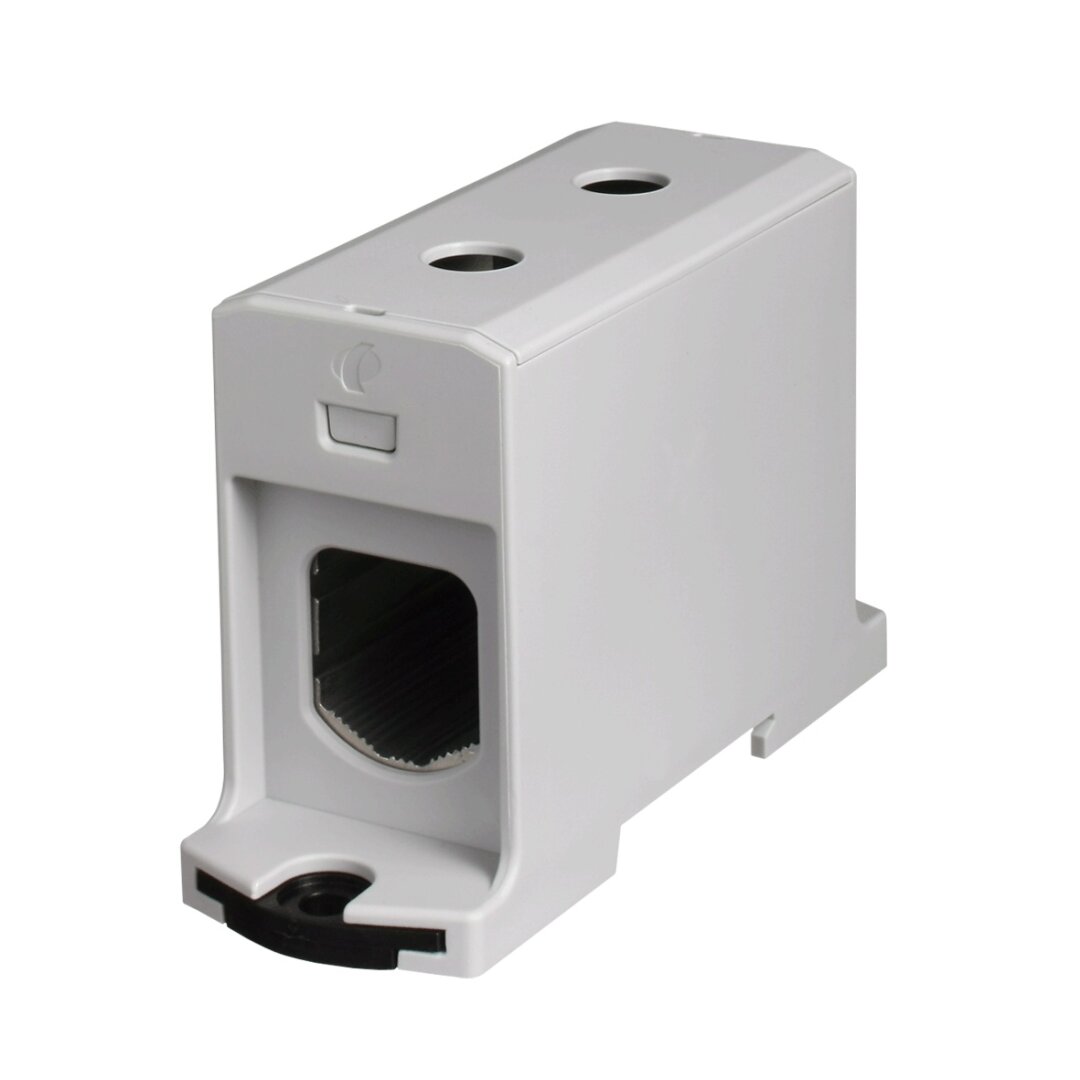

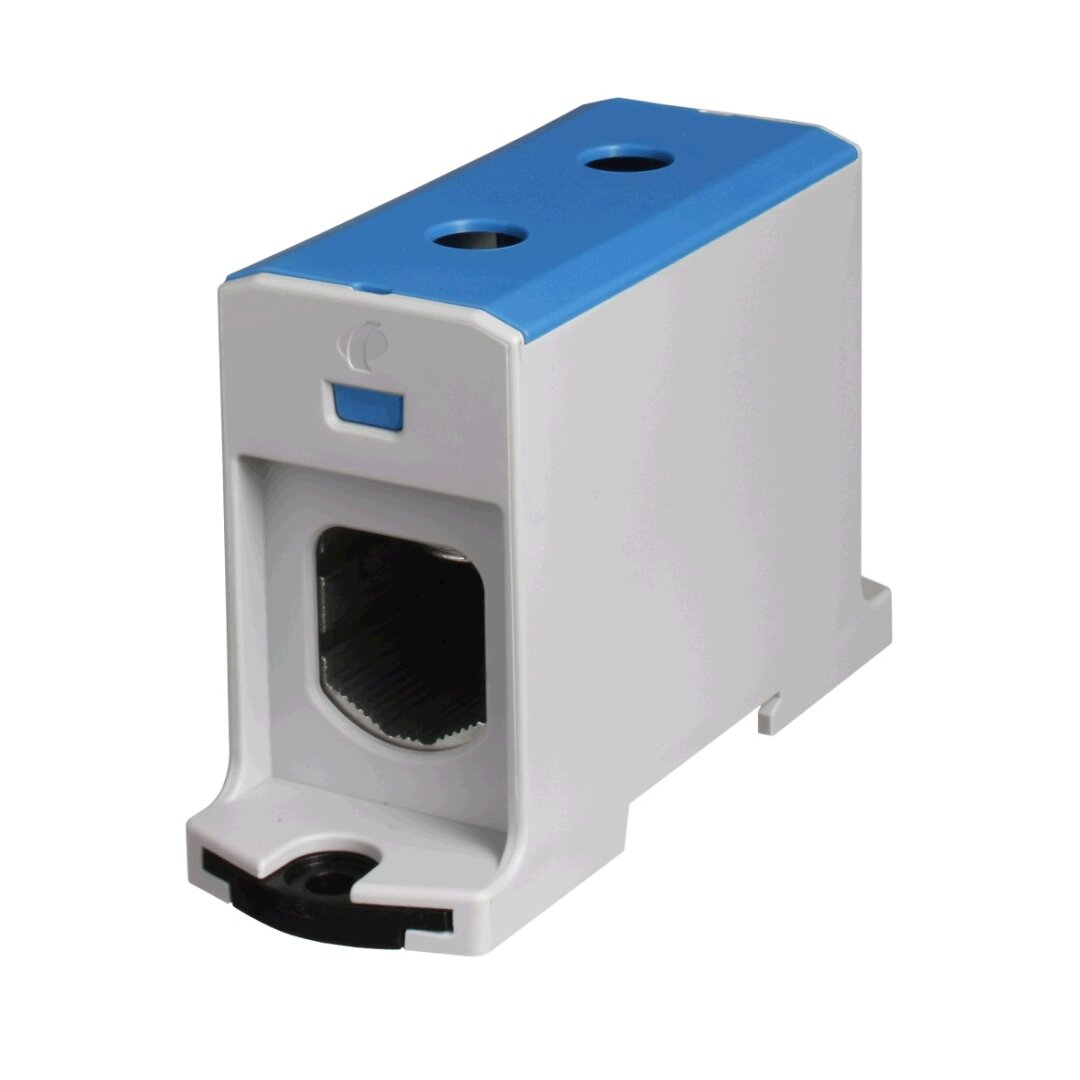

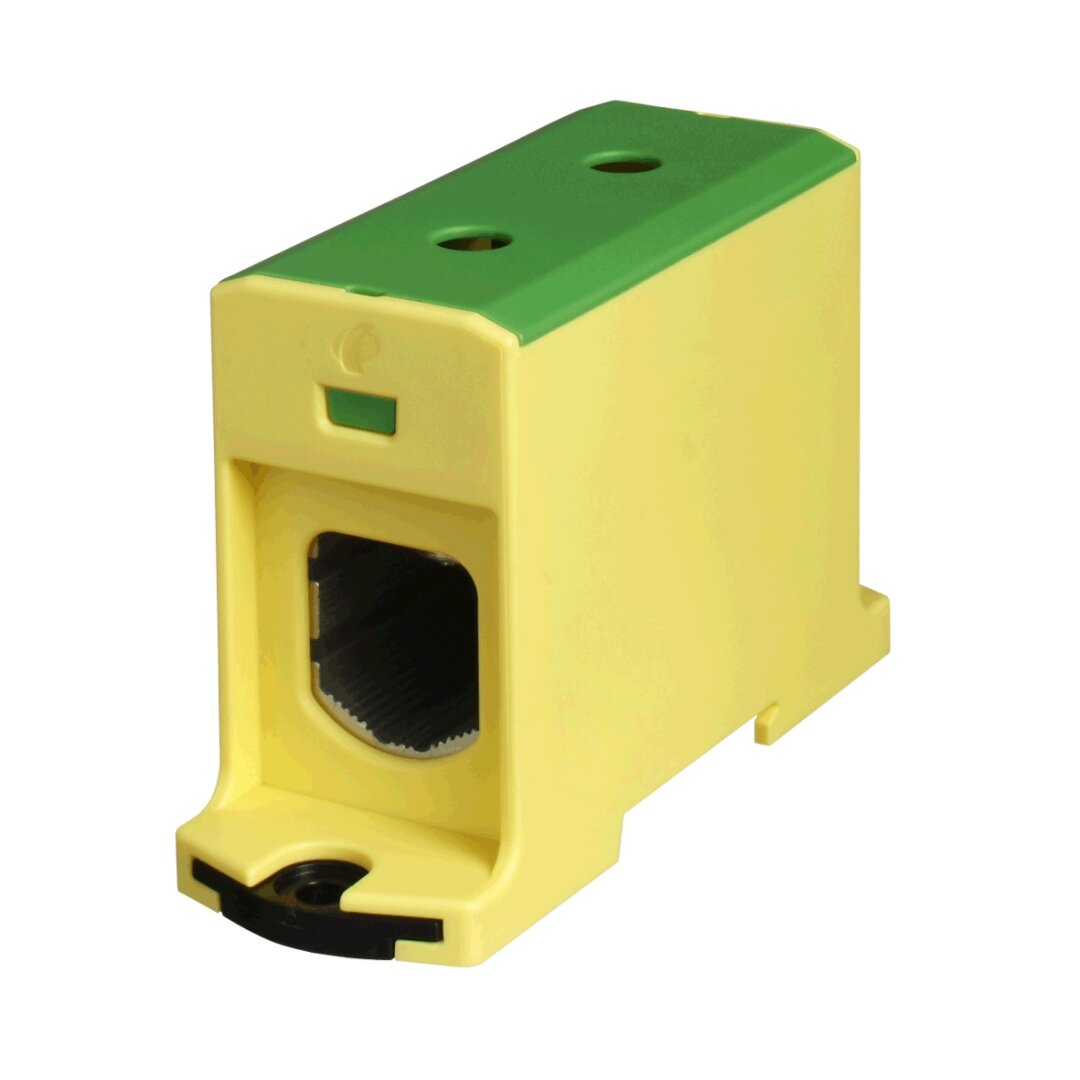

Universal terminal blocks OTL 240/1
23,47 € without VAT 28,40 € with VAT
Universal terminal blocks OTL 240/1
| Rated cross-section [mm²] | 240 |
| Rated current (Cu/Al) [A] | 425 / 380 |
| Rated voltage Ui [V] | 1000 |
| Rated cross-section [mm²] | 35 - 240 |
| Tightening torque [Nm] | 26 (35 - 120 mm²) |
| Tightening torque [Nm] | 40 (150 - 240 mm²) |
| Tools | Inbus number 8 |
| Assembly method | TH 35 / on the plate (mounting screw M 5) |
| IP code | 20 |
| Operating temperature [°C] | -25 - +80 |
| Number of clamping points per level | 2 |
| Number of poles / number of levels | 1 / 1 |
| End cover plate required | NO |
| Testing | EN 60947-7-1 |
| Dimensions [mm] (width / height / length) | 37 / 65 / 106 |
| Weight [g] | 210 |
| Packing [pcs] | 1 |
| Insulating body | Polyamid PA 6.6 |
