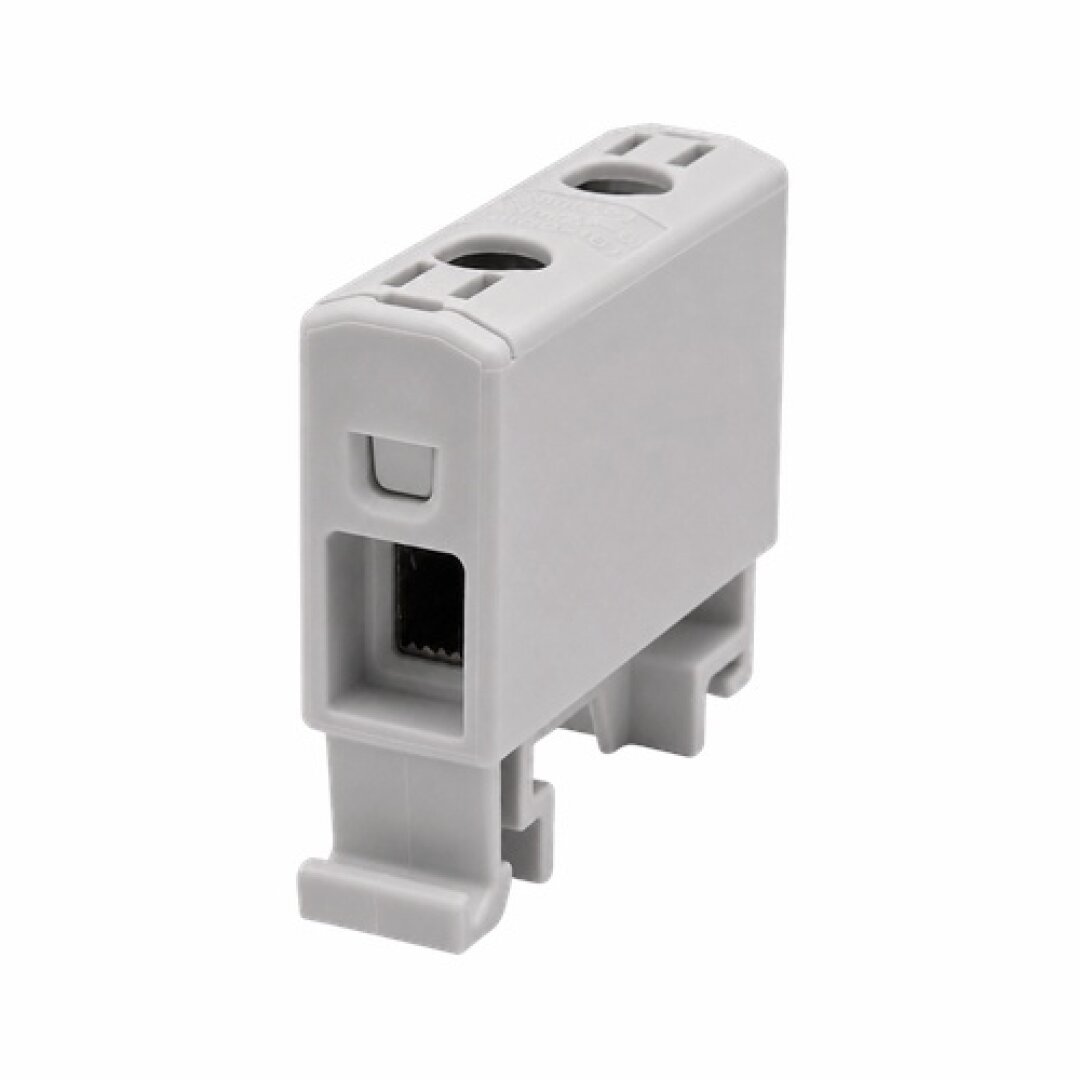

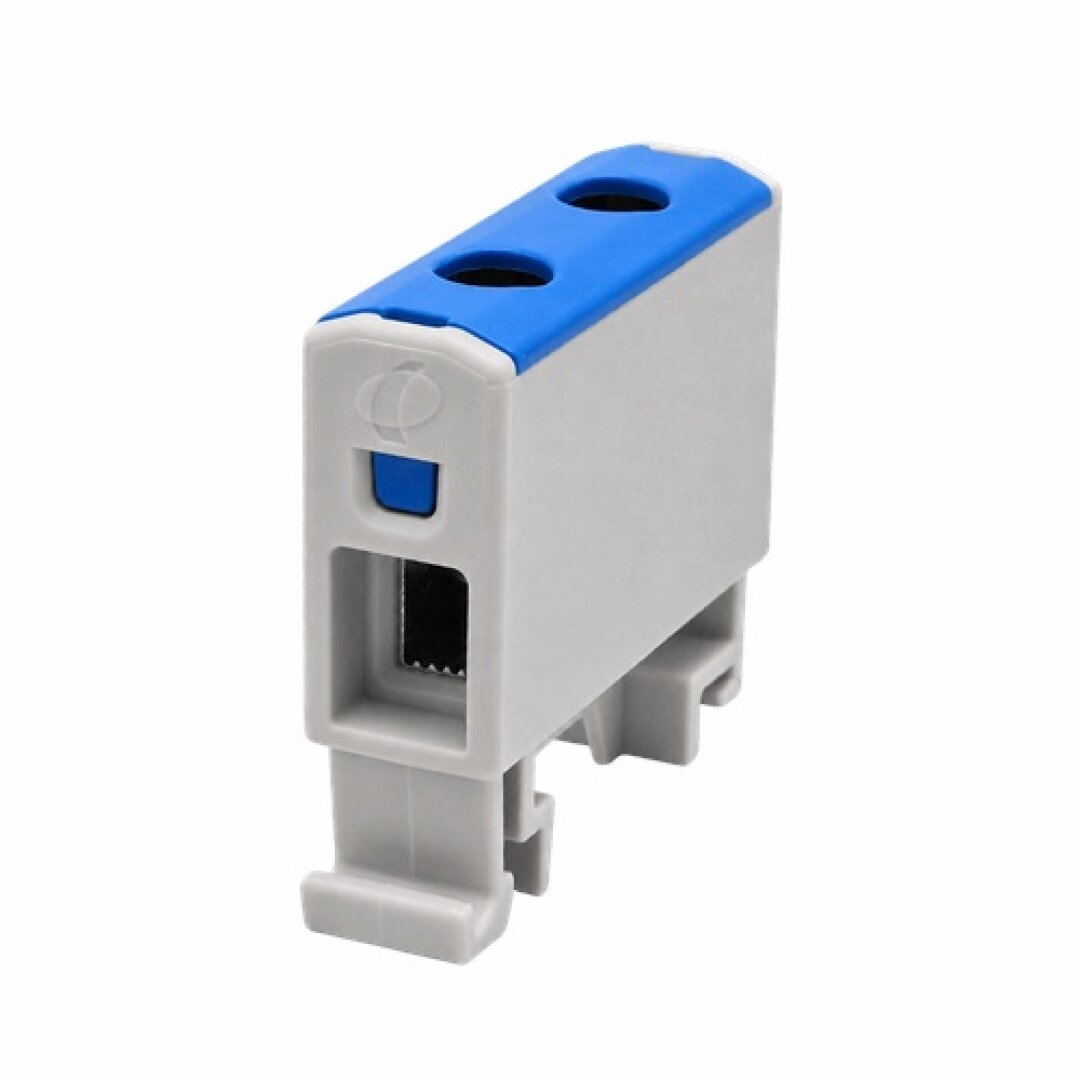

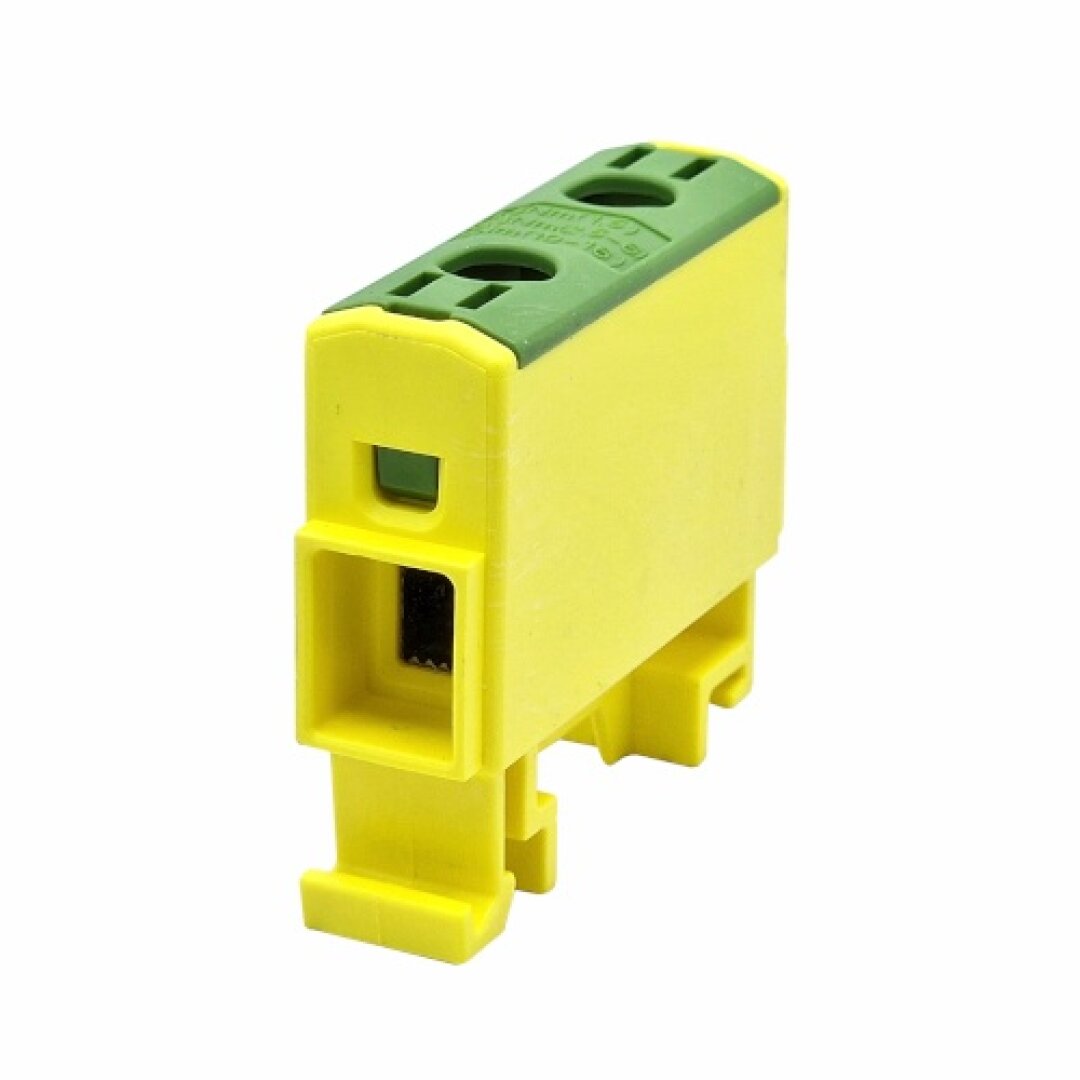

Universal terminal blocks OTL 16/1
3,68 € without VAT 4,45 € with VAT
Universal terminal blocks OTL 16/1
| Rated cross-section [mm²] | 16 |
| Rated current (Cu/Al) [A] | 82 / 75 |
| Rated voltage Ui [V] | 1000 |
| Rated cross-section [mm²] | 1,5 - 16 |
| Tightening torque [Nm] | 1,5 (1,5 mm²) |
| Tightening torque [Nm] | 3 (2,5 - 6 mm²) |
| Tightening torque [Nm] | 6 (10 - 16 mm²) |
| Tools | Inbus number 4 |
| Assembly method | TH 35 |
| IP code | 20 |
| Operating temperature [°C] | -25 - +80 |
| Number of clamping points per level | 2 |
| Number of poles / number of levels | 1 / 1 |
| End cover plate required | NO |
| Testing | EN 60947-7-1 |
| Dimensions [mm] (width / height / length) | 13,5 / 39,5 / 45 |
| Weight [g] | 17 |
| Packing [pcs] | 1 |
| Insulating body | Polyamid PA 6.6 |
