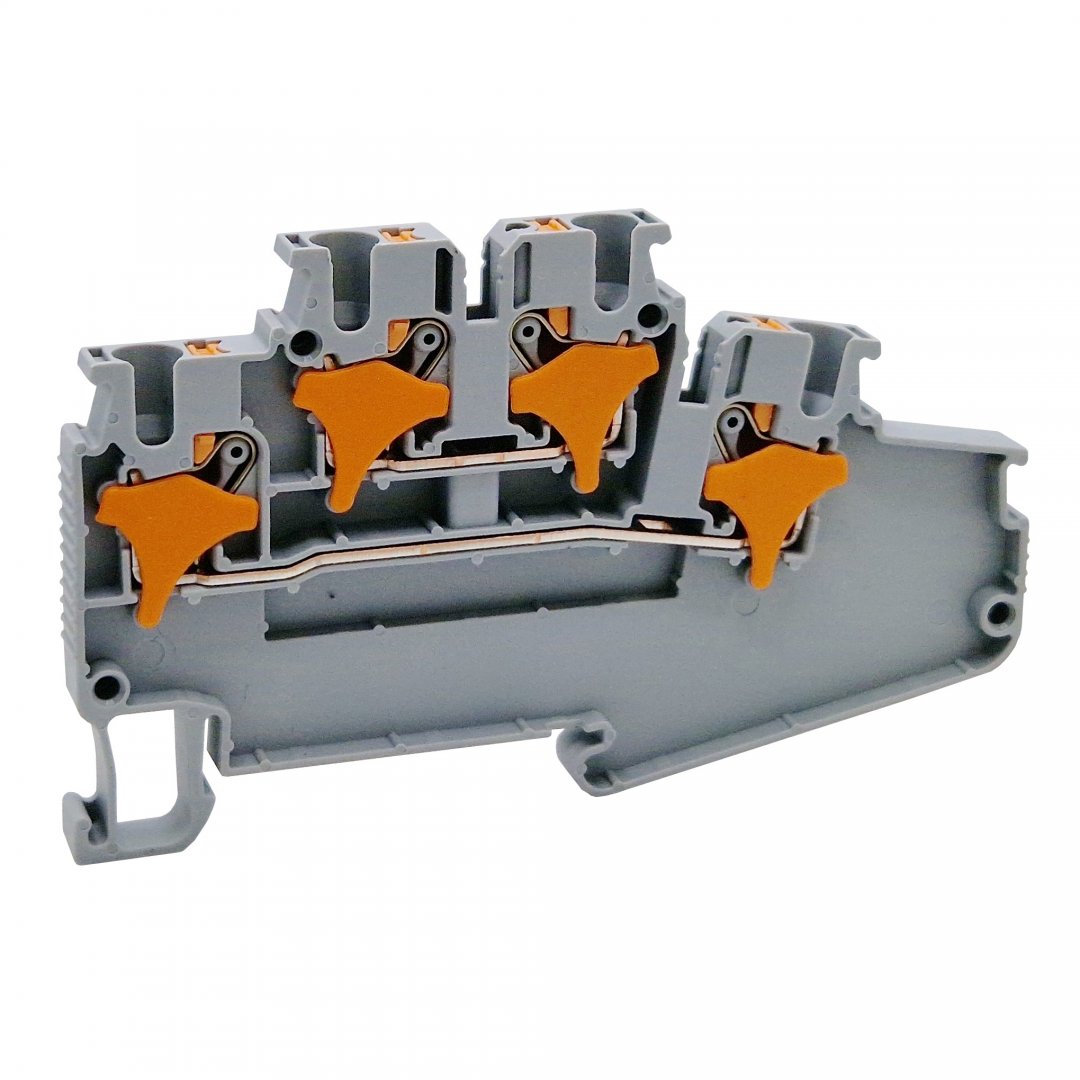

Terminal PS 2,5 - M2F

Manufacturer Code: AA101080.21
without VAT with VAT
Terminal PS 2,5 - M2F
Rated cross-section 2,5
Connection capacity 0,08 ÷ 4
Rated current [A] CE 24
Rated voltage Ui [V] CE 400
Rated impulse withstand voltage Uimp [V] 4000
Assembly method TH 35
Pollution degree 3
Operating temperature [°C] -40 ÷ +100

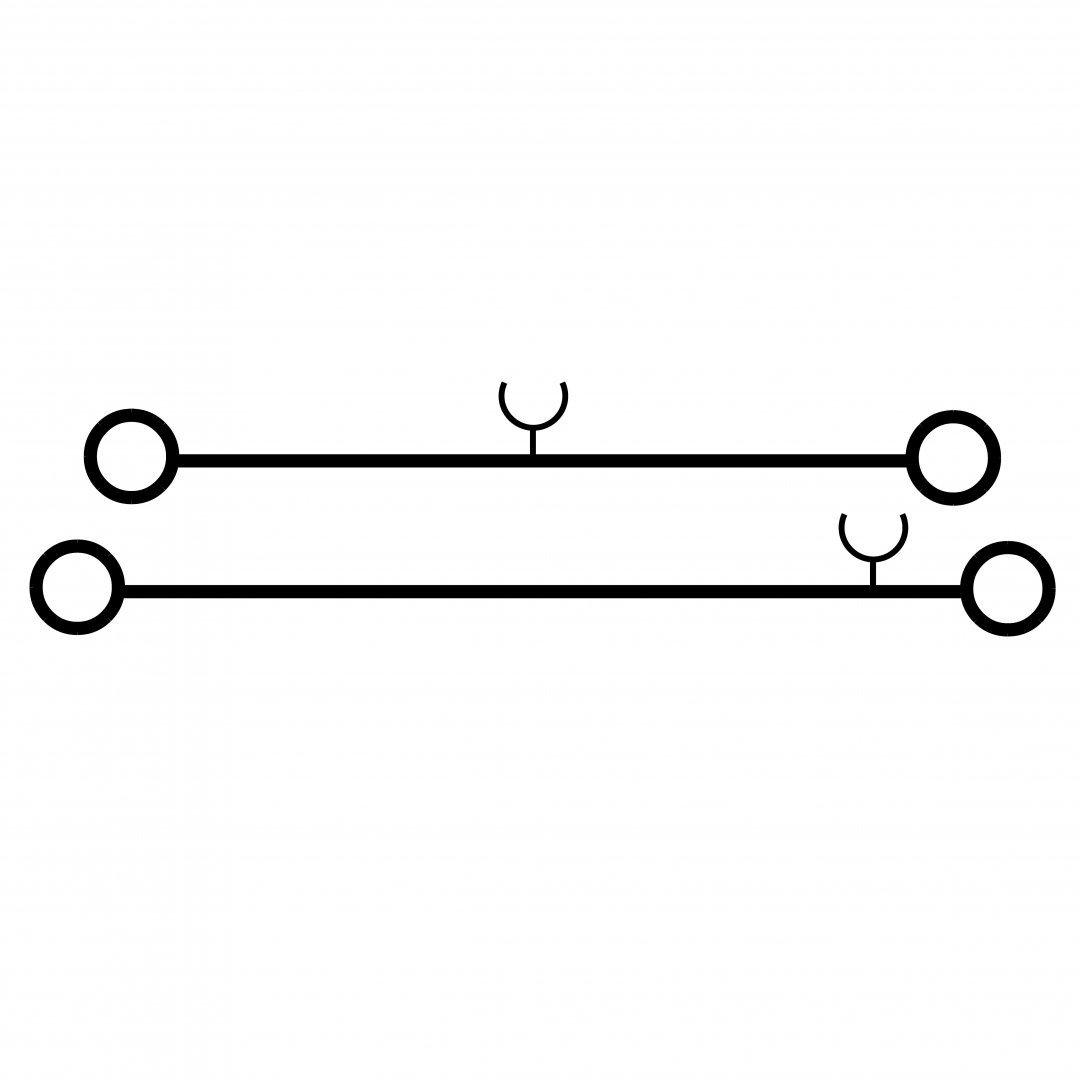

Number of clamping points per level / Number of levels 4 / 2
End cover plate required YES
Dimensions [mm] (width / height / length) 5,2 / 51,81 / 84,05
Weight [g] 12
Packing [pcs] 50

Conductor cross section

Solid conductor [mm²] 0,08 ÷ 4
Finely stranded conductor [mm²] 0,14 ÷ 2,5
Stripping length [mm] 8 ÷ 10
