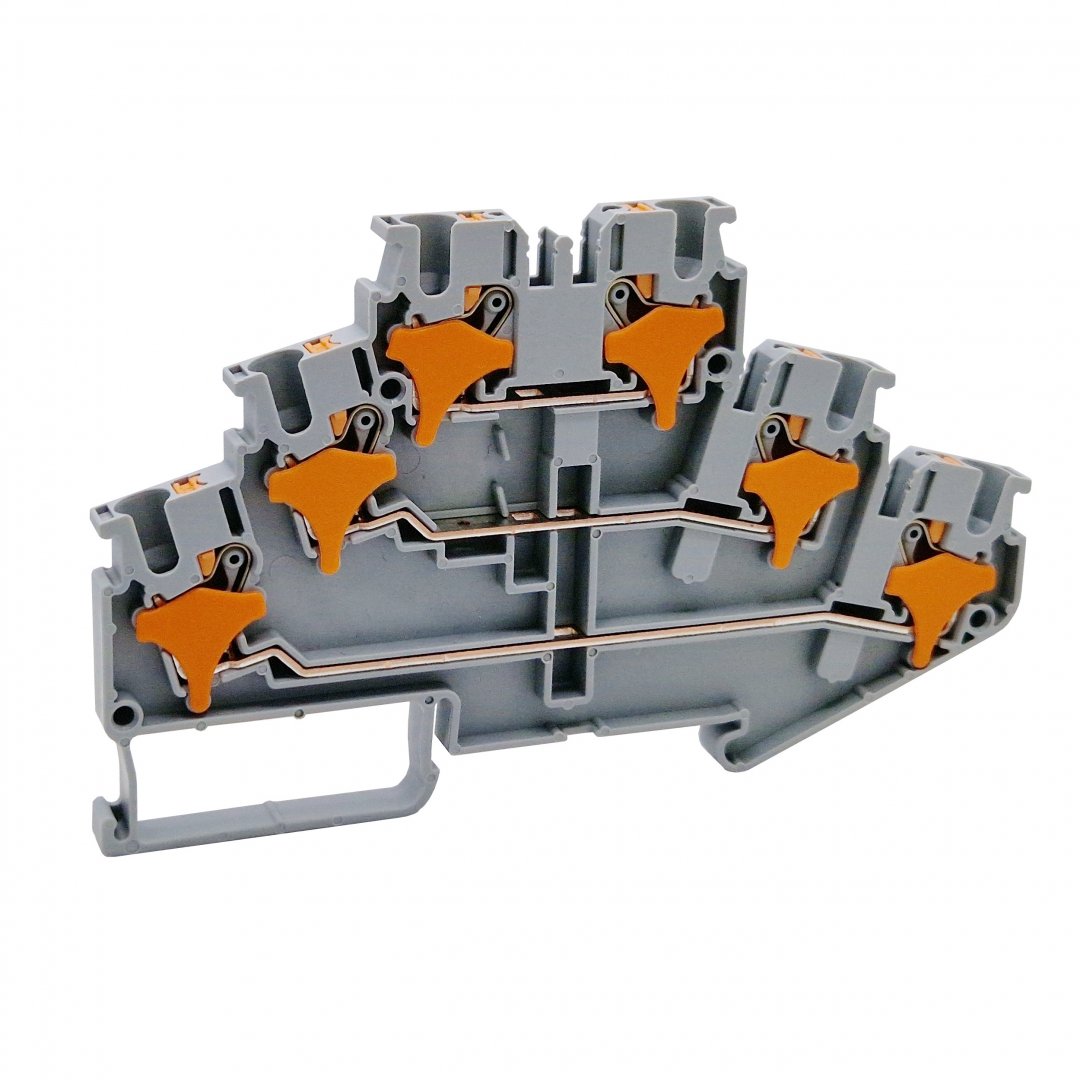

Terminal PS 2,5 - 3F
Manufacturer Code: AA101075.21
without VAT with VAT
Terminal PS 2,5 - 3F
| Rated cross-section | 2,5 |
| Connection capacity | 0,08 ÷ 4 |
| Rated current [A] CE | 24 |
| Rated voltage Ui [V] CE | 500 |
| Rated impulse withstand voltage Uimp [V] | 4000 |
| Assembly method | TH 35 |
| Pollution degree | 3 |
| Operating temperature [°C] | -40 ÷ +100 |
| Number of clamping points per level / Number of levels | 6 / 3 |
| End cover plate required | YES |
| Dimensions [mm] (width / height / length) | 5,2 / 63,4 / 100,5 |
| Weight [g] | 18 |
| Packing [pcs] | 50 |
| Solid conductor [mm²] | 0,08 ÷ 4 |
| Finely stranded conductor [mm²] | 0,14 ÷ 2,5 |
| Stripping length [mm] | 8 ÷ 10 |
