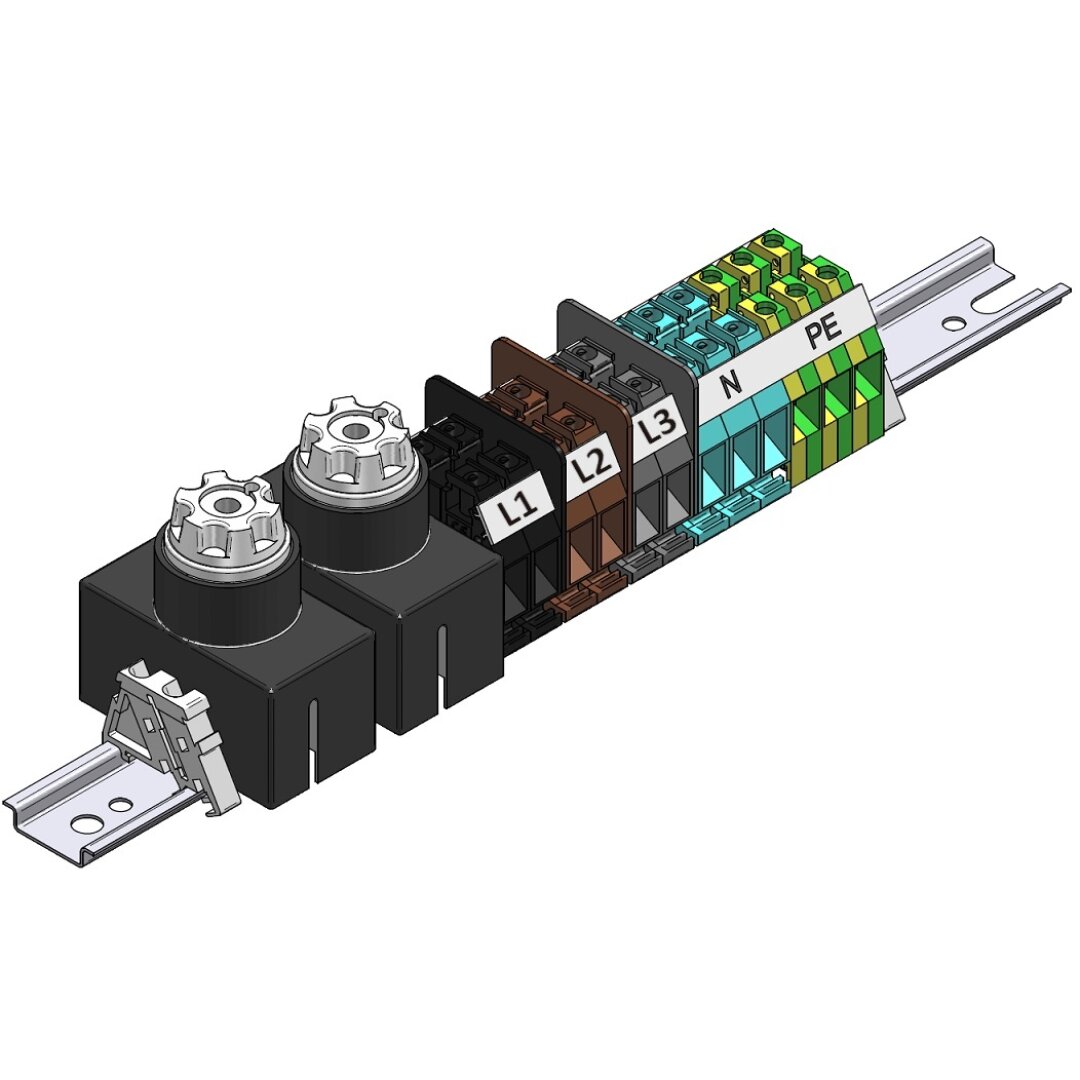

SV - B - 9.16.5/2
Manufacturer Code: H451221
38,24 € without VAT 46,27 € with VAT
SV - B - 9.16.5/2
| Rated cross-section [mm²] | 16 |
| Rated current [A] | 76 |
| Rated voltage Ui [V] | 1000 |
| Composition of the terminal block (Main terminal) | 9 x RSA 16 A |
| Composition of the terminal block (Main terminal for PE conductors) | 3 x RSA PE 16 A |
| Composition of the terminal block (Fuse terminal) | 2 x E27 |
| Tightening torque [Nm] terminal blocks / fuse clamp | 2 |
| A [mm] | 75 |
| B [mm] | 83 |
| C [mm] | 266 |
| C1 [mm] | 40 |
| L [mm] | 380 |
