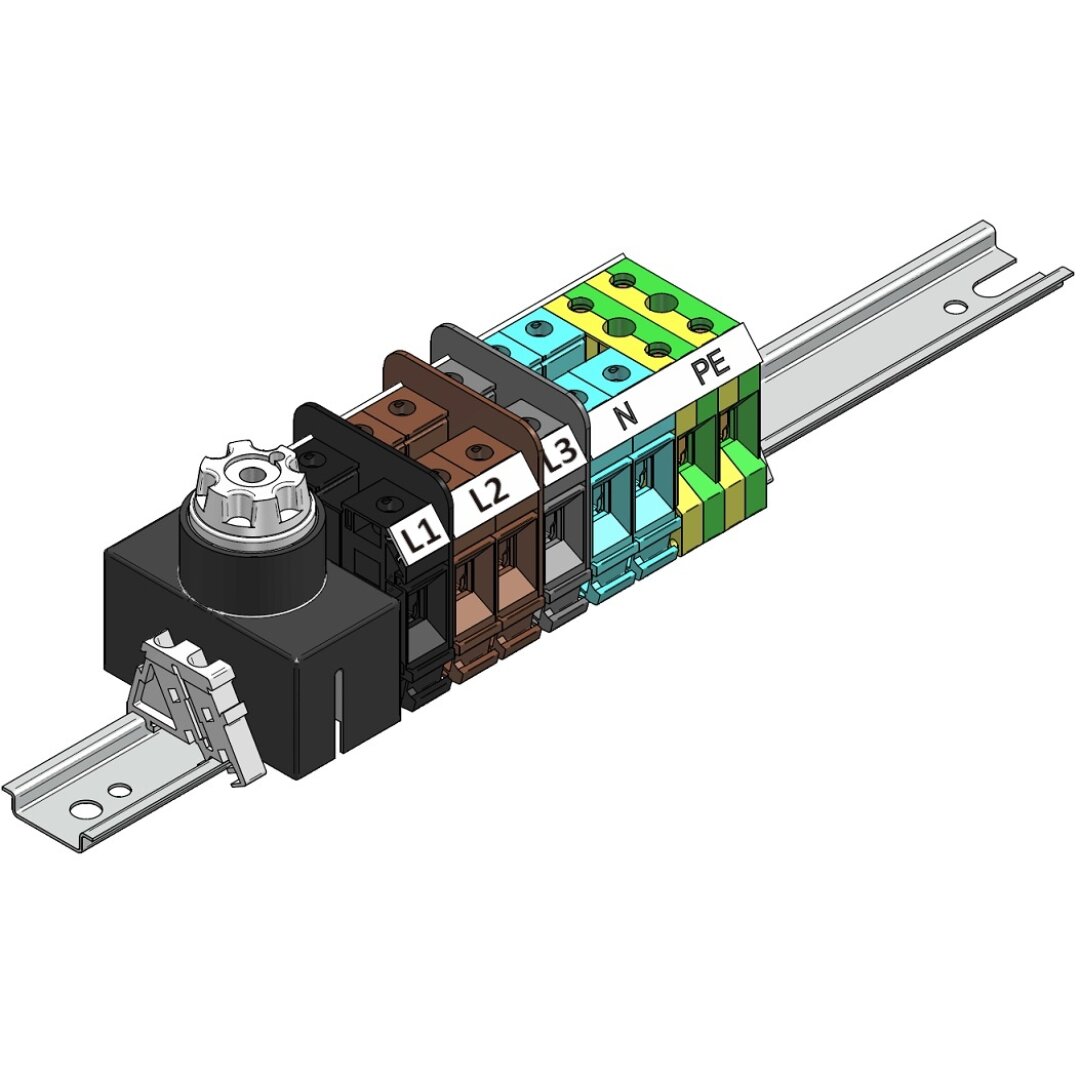

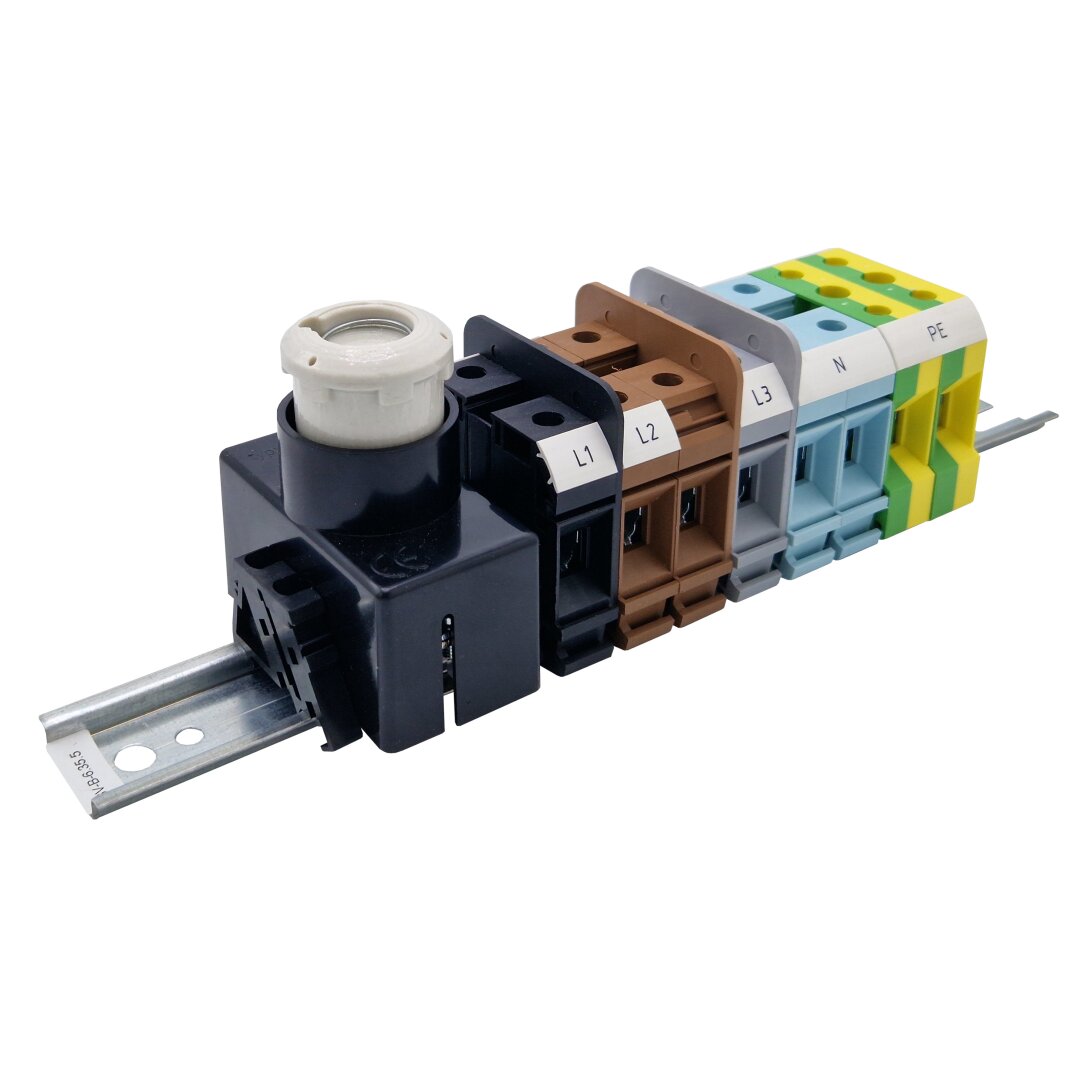

SV - B - 6.35.5
Manufacturer Code: H416220
31,24 € without VAT 37,80 € with VAT
SV - B - 6.35.5
| Rated cross-section [mm²] | 35 |
| Rated current [A] | 125 |
| Rated voltage Ui [V] | 1 000 |
| Rated impulse withstand voltage Uimp [V] | 4 000 |
| Clamped conductor range [mm²] (solid conductor) | 2,5 ÷ 16 |
| Composition of the terminal block (Main terminal) | 6 x RSA 35 A |
| Composition of the terminal block (Main terminal for PE conductors) | 2 x RSA PE 35 A |
| Composition of the terminal block (Fuse terminal) | 1 x E27 |
| Size of fusible fuse insert | D II |
| Tightening torque [Nm] terminal blocks / fuse clamp | 2,5 / 0,5 |
| Tools terminal blocks / fuse clamp | PH2 / PH0 |
| Pollution degree | 2 |
| IP code | 20 |
| Operating temperature [°C] | -40 - +55 |
| Testing | ČSN EN 60947-7-1; ČSN EN 60947-7-2; ČSN EN 60947-7-3 |
| A [mm] | 75 |
| B [mm] | 83 |
| C [mm] | 206 |
| C1 [mm] | 50 |
| L [mm] | 380 |
