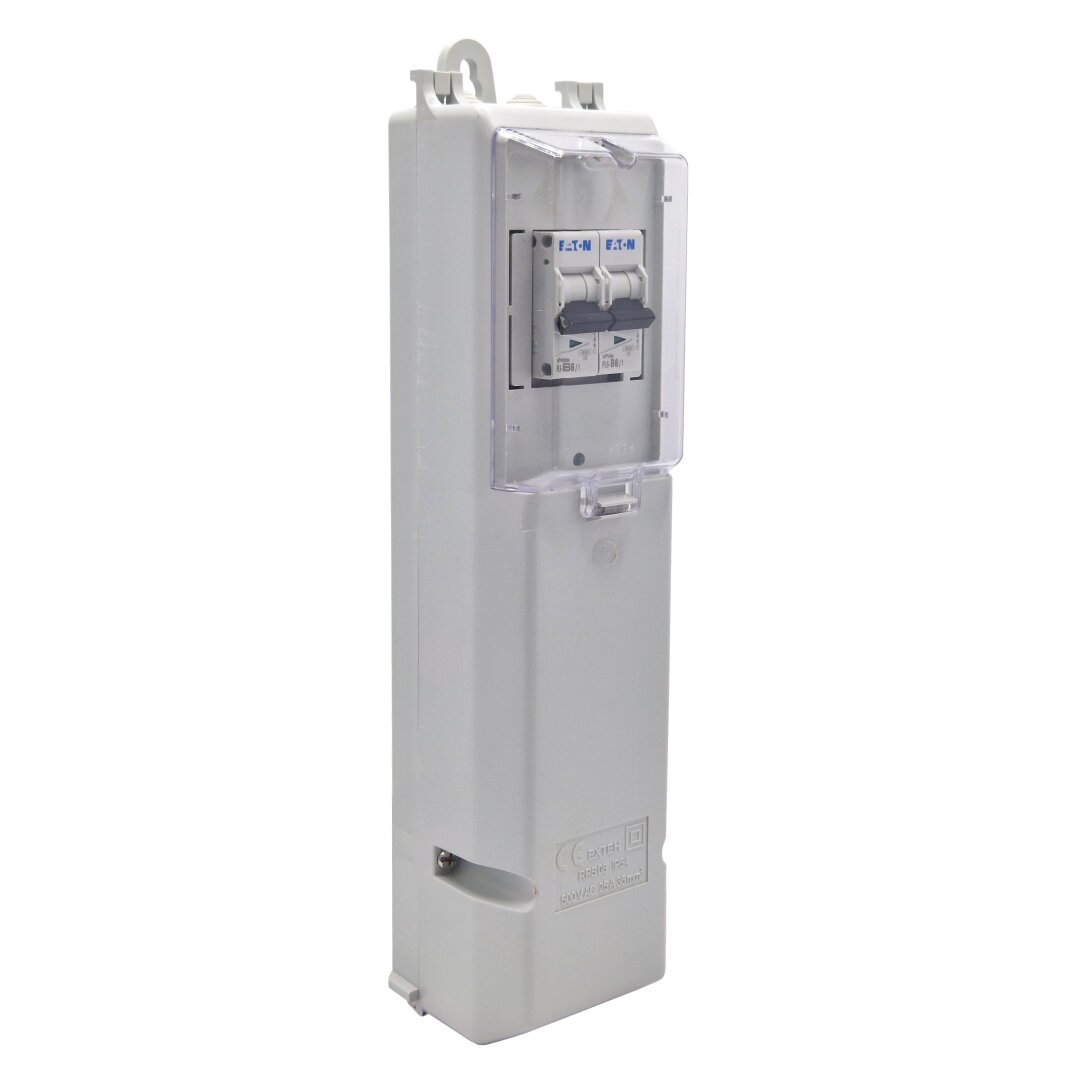

SI - C - 8.35.4/2
Manufacturer Code: H846214
61,27 € without VAT 74,14 € with VAT
SI - C - 8.35.4/2
| Rated cross-section [mm²] | 35 |
| Rated current [A] | 25 |
| Insulation voltage Ui [V] | 500 |
| Clamped conductor range [mm²] (input) | Cu/Al 4 x 6 - 35 |
| Clamped conductor range [mm²] (output to the lamp) | 4 x 1,5 - 4 |
| Tightening torque [Nm] (input / output to the lamp) | 3,5 - 4 / 0,5 - 8 |
| Tools (input / output to the lamp) | PH 2 |
| IP code | 54 |
| Protection class | II |
| Flammability class according to UL94 | V0 |
| Operating temperature [°C] | -40 - +55 |
| The minimum size of the entry door [mm] | 80 x 350 |
| Testing | EN 60493-1; DIN VDE 0660-505; DIN 43628; DIN 43871 |
| Dimensions [mm] (width / height / length) | 75 x 85 x 340 |
| Type of fuse | 2 x Circuit breaker 6A |
| Max. diameter of input/output cabels [mm] | 2 x 30 |
| Max. diameter of input/output cabels for lights [mm] | 2 x 15 |
| Connection cross-sections (number x cross-section mm2) | - |
| main input | 4 x 6-35 |
| main output | 4 x 6-35 |
| Colour / Weight [g] | grey (RAL 7035) / 783 |
