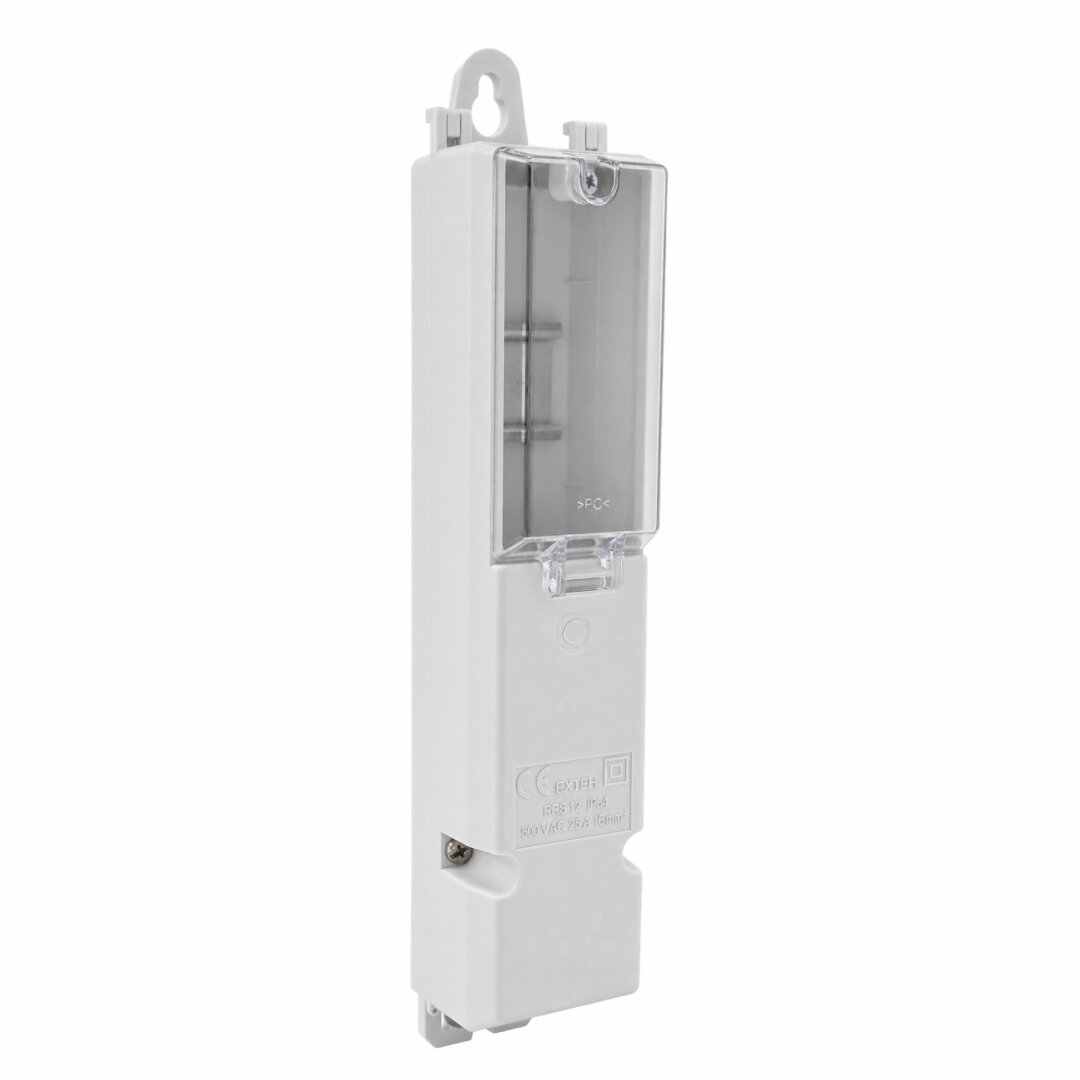

SI 10.16. 5
Manufacturer Code: H847210
38,10 € without VAT 46,10 € with VAT
SI 10.16. 5
| Rated cross-section [mm²] | 16 |
| Rated current [A] | 25 |
| Insulation voltage Ui [V] | 500 |
| Clamped conductor range [mm²] (input) | Cu/Al 4(5) x 4 - 16 |
| Clamped conductor range [mm²] (output to the lamp) | 4 (5) x 1,5 - 2,5 |
| Tightening torque [Nm] (input / output to the lamp) | 3,5 - 4 / 0,5 - 8 |
| Tools (input / output to the lamp) | Flat |
| IP code | 54 |
| Protection class | II |
| Flammability class according to UL94 | V0 |
| Operating temperature [°C] | -40 - +55 |
| The minimum size of the entry door [mm] | 65 x 300 |
| Testing | EN 60493-1; DIN VDE 0660-505; DIN 43628; DIN 43871 |

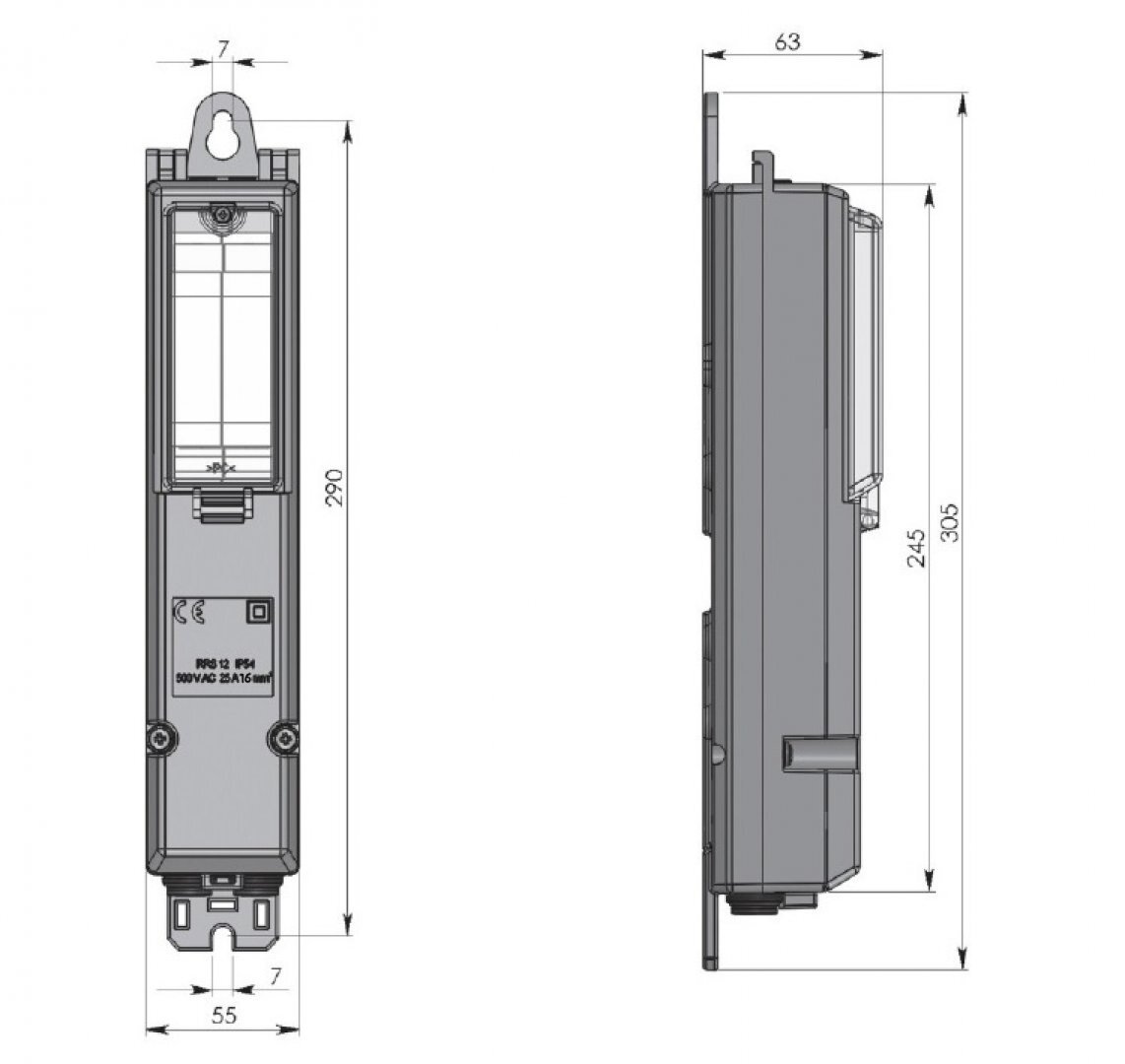

| Dimensions [mm] (width / height / length) | 55 x 63 x 245 |
| Type of fuse | - |
| Max. diameter of input/output cabels [mm] | 2 x 22 |
| Max. diameter of input/output cabels for lights [mm] | 2 x 10 |
| Colour / Weight [g] | grey (RAL 7035) / 388 |
| Protective conductor [mm²] | 10 |
