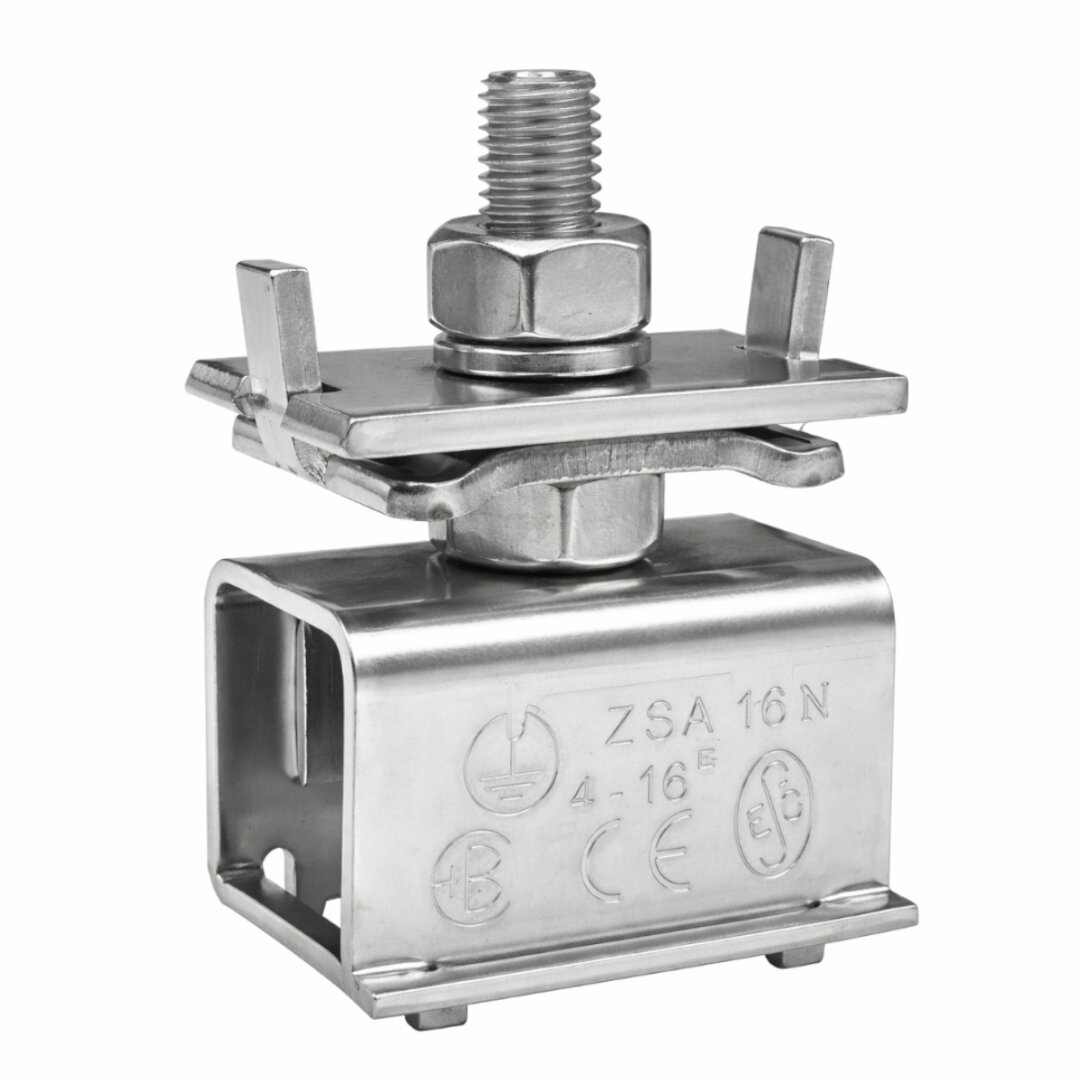

Grounding clamp ZSA 16 stainless

Manufacturer Code: I131360
1,74 € without VAT 2,11 € with VAT
Grounding clamp ZSA 16 stainless
Rated cross-section of conductor [mm²] 16
Tightening torque [Nm] 3
Testing ČSN EN 60998-2-1
Dimensions [mm] (width / height / length) 16 / 40 / 28
Weight [g] 40
Packing [pcs] 10
Use on metal objects (pipes, etc.) Js 1/2" - 2"
Number of clamping points per level 3

Conductor cross section

Solid conductor [mm²] 2,5 - 16
Stranded conductor [mm²] 4 - 16
Finely stranded conductor [mm²] 4 - 16
