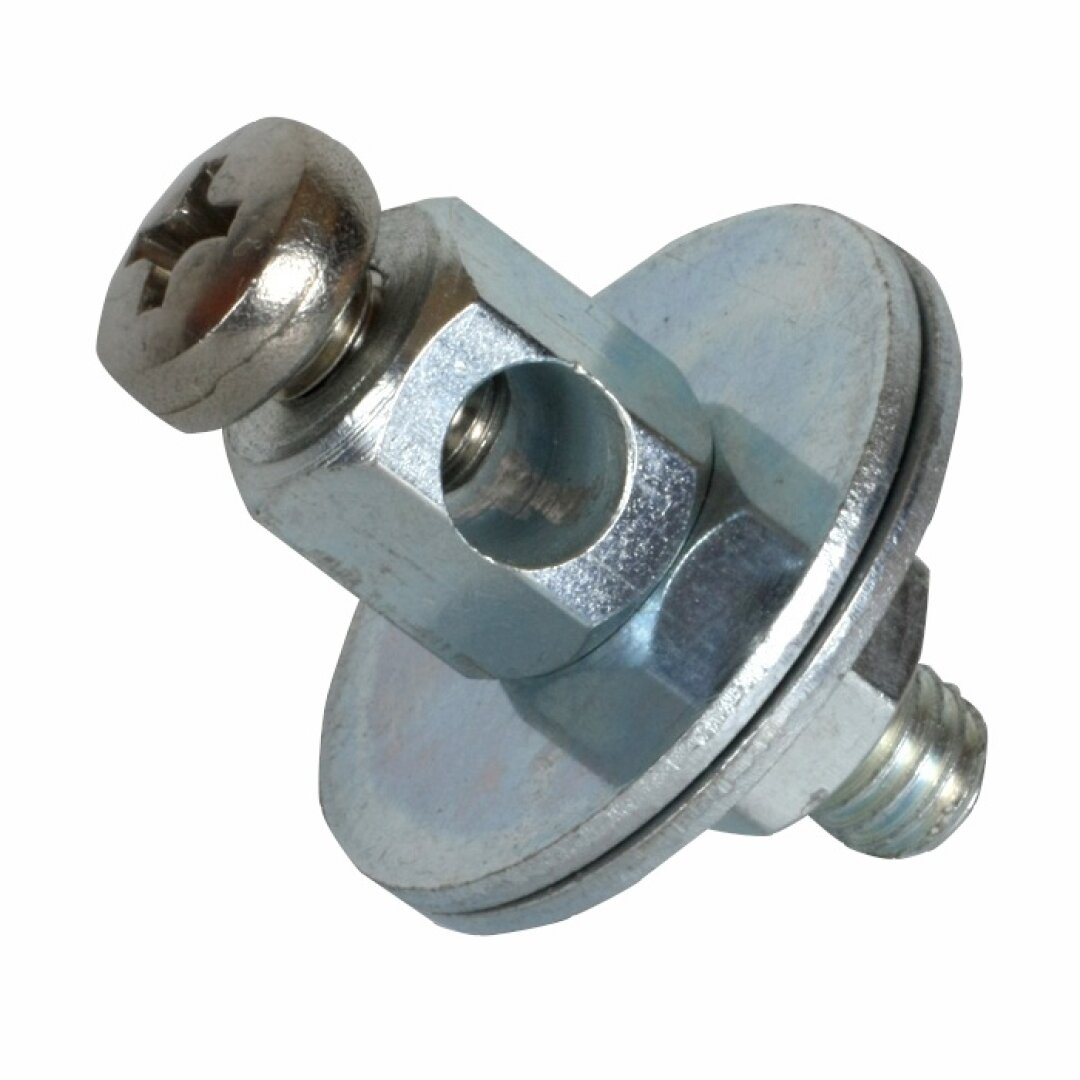

Grounding screw ZS 10 S (standard)
Manufacturer Code: I294407
1,23 € without VAT 1,49 € with VAT
Grounding screw ZS 10 S (standard)
| Rated cross-section [mm²] | 10 |
| Testing | ČSN EN 60998-2-1 |
| Weight [g] | 25 |
| Packing [pcs] | 10 |
| Clamping screw | M 6 |
| Hole diameter on the wall [mm] | 6,4 |
| Height above the wall [mm] | 20 |
| Solid conductor [mm²] | 2,5 ÷ 16 |
| Stranded conductor [mm²] | 2,5 ÷ 16 |
| Finely stranded conductor [mm²] | 2,5 ÷ 10 |
| Cable in the fixture - Solid conductor [mm²] | - |
| Cable in the fixture - Stranded conductor [mm²] | - |
| Cable in the fixture - Finaly stranded conductor [mm²] | - |
