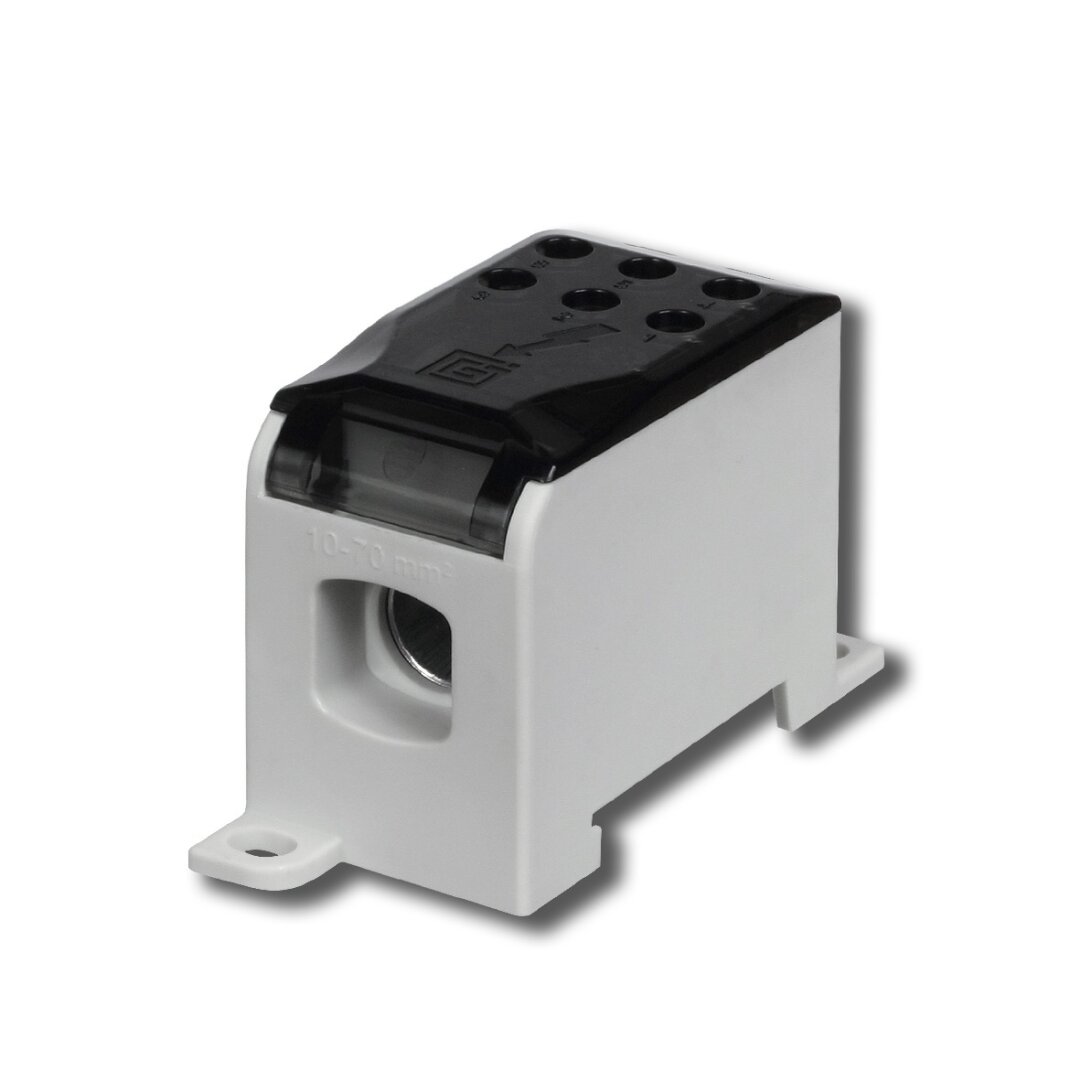

Distribution block OJL 70
Manufacturer Code: VG03-0006
20,38 € without VAT 24,66 € with VAT
Distribution block OJL 70
| Rated cross-section [mm²] | 70 (Input) |
| Rated current In [A] | 160 / 200 |
| Rated voltage Ui [V] | 1000 |
| Tightening torque [Nm] | 3 (2,5 - 16 mm²) |
| Tightening torque [Nm] | 6 (25 - 35 mm²) |
| Tightening torque [Nm] | 10 (50 - 70 mm²) |
| Tools | Inbus |
| Assembly method (on DIN rail) | TH 35 / on the plate |
| IP code | 20 |
| Operating temperature [°C] | do 80 |
| Number of clamping points per level | 7 |
| Number of levels | 1 |
| Testing | EN 60947-7-1 |
| Dimensions [mm] (width / height / length) | 32,4 / 46 / 75,8 |
| Weight [g] | 80 |
| Packing [pcs] | 24 |
| Conductor cross section – Input [mm²] | 1 x 10 - 70 |
| Conductor cross section – Output [mm²] | 6 x 2,5 - 16 |
