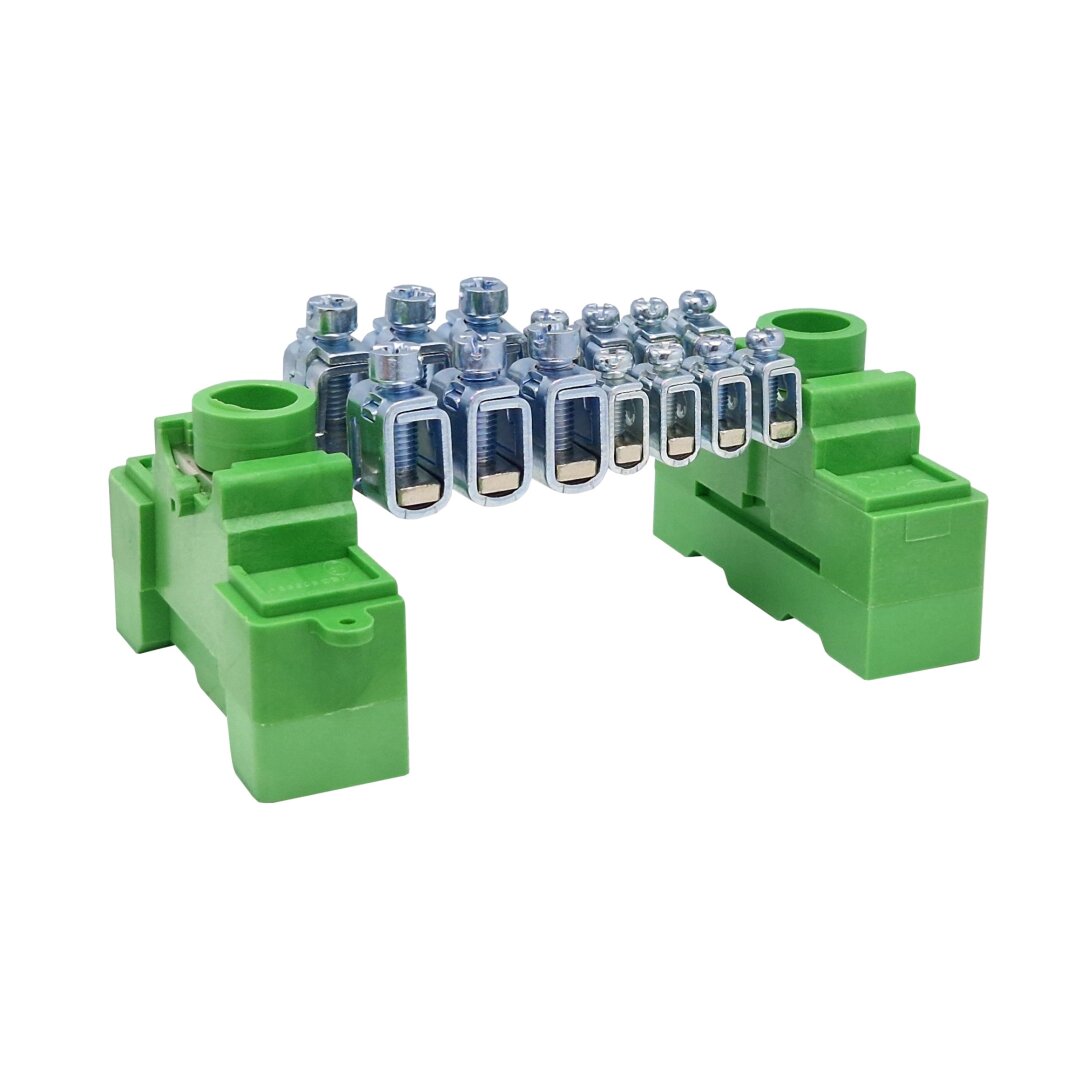

Branching terminal board SPE 3
Manufacturer Code: I236800
9,52 € without VAT 11,52 € with VAT
Branching terminal board SPE 3
| Type of clamp - their number in the terminal block | PS 6 mm² - 8 |
| Type of clamp - their number in the terminal block | PS 16 mm² - 6 |
| Rated current [A] | 76 (max. current load) |
| Rated voltage [V] | 750 ~; 830= |
| Assembly method | TH 35 |
| Operating temperature [°C] | -25 - +55 |
| Number of clamping points per level | 14 |
| Number of levels | 1 |
| Testing | ČSN EN 60947-7-1 |
| Dimensions [mm] (width / height / length) | 60 / 45,5 / 103,6 |
| Weight [g] | 145 |
| Colour design plastic parts | green |
