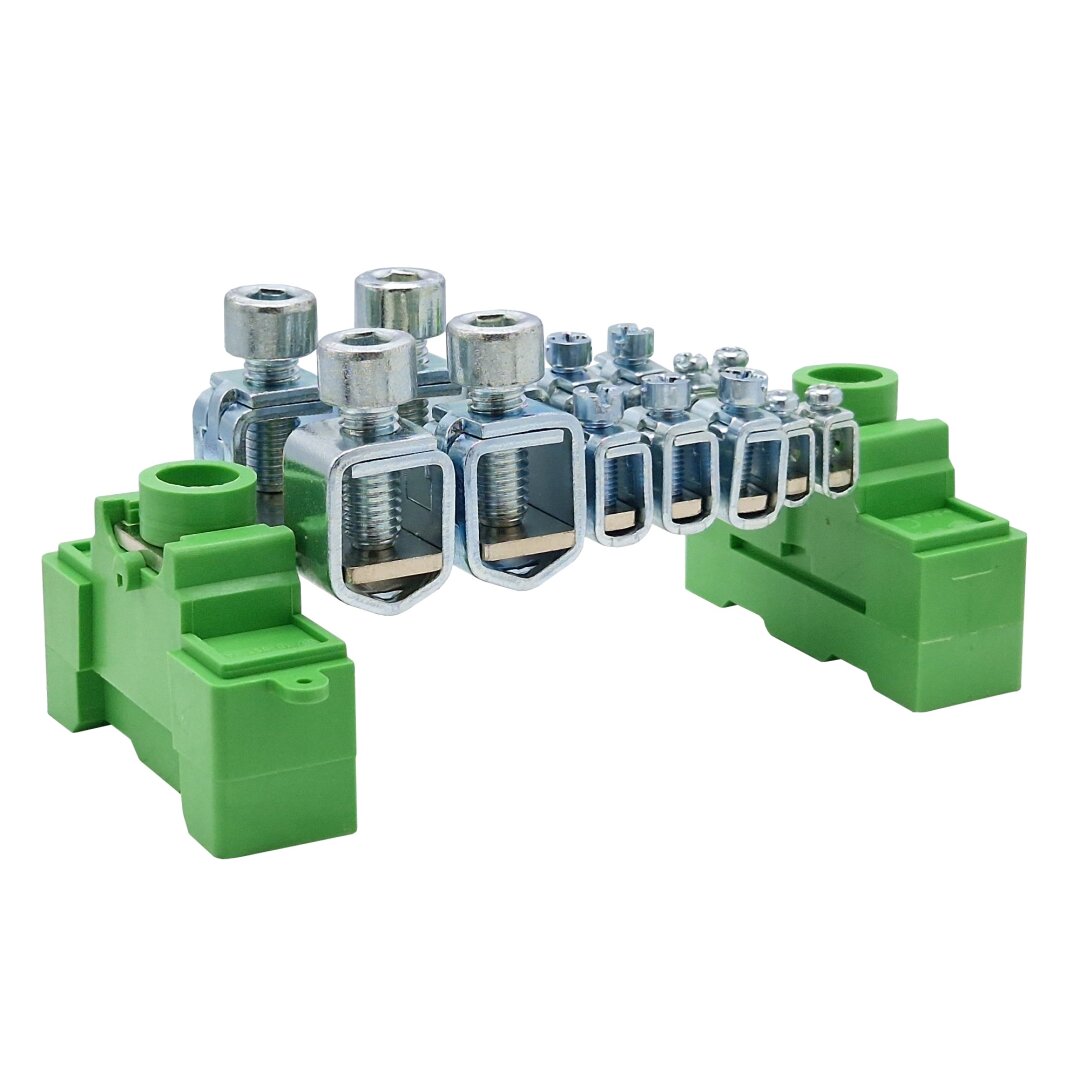

Branching terminal board SPE 2
Manufacturer Code: I243800
11,24 € without VAT 13,60 € with VAT
Branching terminal board SPE 2
| Type of clamp - their number in the terminal block | PS 6 mm² - 4 |
| Type of clamp - their number in the terminal block | PS 16 mm² - 6 |
| Type of clamp - their number in the terminal block | PS 95 mm² - 4 |
| Rated current [A] | 232 |
| Rated voltage [V] | 750 ~; 830= |
| Assembly method | TH 35 |
| Operating temperature [°C] | -25 - +55 |
| Number of clamping points per level | 14 |
| Number of levels | 1 |
| Testing | ČSN EN 60947-7-1 |
| Dimensions [mm] (width / height / length) | 60 / 60,3 (70,8 with cover) / 125 |
| Weight [g] | 270 |
| Colour design plastic parts | green |
| Note: | The cover is not supplied with the terminal box, it must be ordered separately. |
