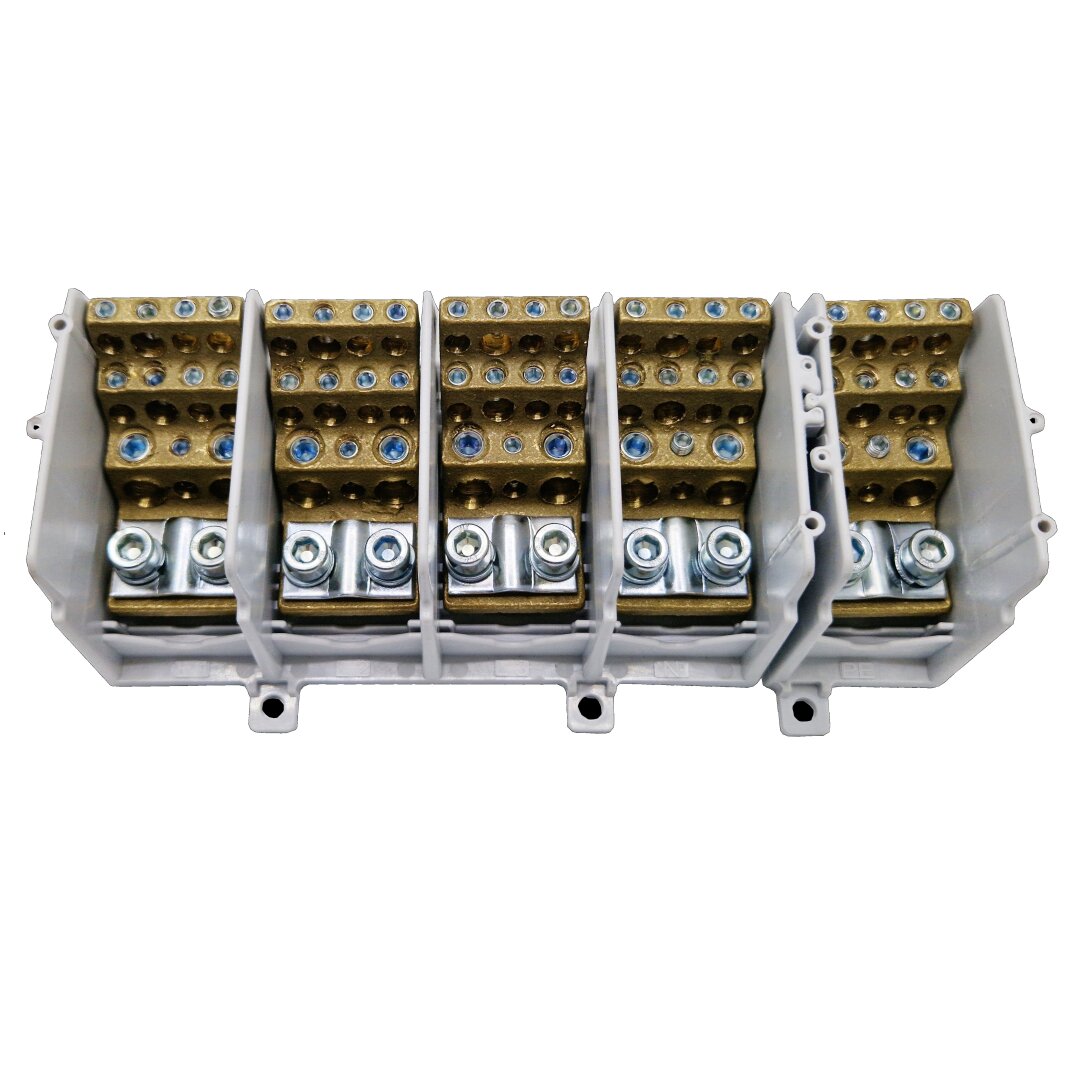

Distribution block DTS (5x)70/(5x)7x6+2x25+2x35
Manufacturer Code: UD5070
84,12 € without VAT 101,79 € with VAT
Distribution block DTS (5x)70/(5x)7x6+2x25+2x35
| Rated cross-section [mm²] | 70 |
| Rated current [A] | 160 |
| Rated voltage Ui [V] | 500 |
| Rated impulse withstand voltage Uimp [kV] | 6 |
| Tightening torque [Nm] | 1 (6 mm²) |
| Tightening torque [Nm] | 1,2 (16 mm²) |
| Tightening torque [Nm] | 12 (25 mm²) |
| Tightening torque [Nm] | 18 (35 - 70 mm²) |
| Tool | Inbus |
| Assembly method | TH 35 */ on the plate |
| IP code | 20 |
| Operating temperature [°C] | -25 - +100 |
| Number of clamping points per level | 12 for 1 pole |
| Number of levels | 1 |
| End cover plate required | NO |
| Testing | IEC 60947-7-1 |
| Dimensions [mm] (width / height / length) | 195 / 66 /85 |
| Weight [g] | 918 |
| Packing [pcs] | 1 pc = 5 poles |
| Note | * The block can be mounted on a DIN rail using a holder - Order number UD0001.21 |
| Conductor cross-section – Input [mm²] | 1 x 25 - 70 (1 pole) |
| Conductor cross-section – Output [mm²] | 2 x 10 - 25 (1 pole) |
| Conductor cross-section – Output [mm²] | 2 x 6 - 16 (1 pole) |
| Conductor cross-section – Output [mm²] | 7 x 1,5 - 6 (1 pole) |
