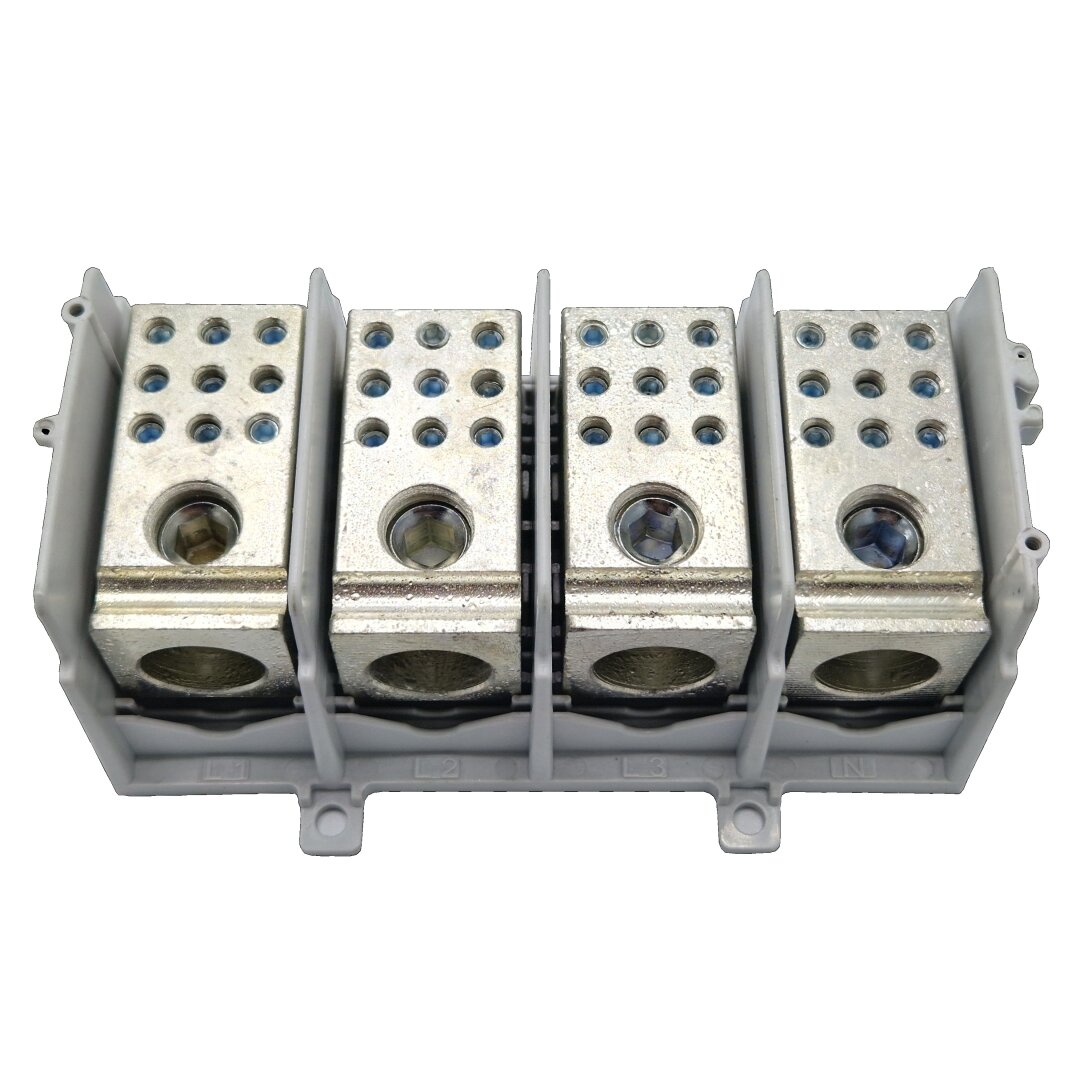

Distribution block DTS (4x)120/(4x)9x16
Manufacturer Code: UD4120.9
63,47 € without VAT 76,79 € with VAT
Distribution block DTS (4x)120/(4x)9x16
| Rated cross-section [mm²] | 120 |
| Rated current [A] | 250 |
| Rated voltage Ui [V] | 690 |
| Rated impulse withstand voltage Uimp [kV] | 6 |
| Tightening torque [Nm] | 2,5 (2,5 mm²) |
| Tightening torque [Nm] | 5 (4 - 6 mm²) |
| Tightening torque [Nm] | 7 (10 - 16 mm²) |
| Tightening torque [Nm] | 12 (25 - 35 mm²) |
| Tightening torque [Nm] | 18 (50 - 70 mm²) |
| Tightening torque [Nm] | 22 (95 - 120 mm²) |
| Tool | Inbus |
| Assembly method | TH 35 */ on the plate |
| IP code | 20 |
| Operating temperature [°C] | -25 - +100 |
| Number of clamping points per level | 10 for 1 pole |
| Number of levels | 1 |
| End cover plate required | NO |
| Testing | IEC 60947-7-1 |
| Dimensions [mm] (width / height / length) | 152 / 66 / 85 |
| Weight [g] | 615 |
| Packing [pcs] | 1 pc = 4 poles |
| Note | * The block can be mounted on a DIN rail using a holder - Order number UD0001.21 |
| Conductor cross-section – Input [mm²] | 1 x 35 - 120 (1 pole) |
| Conductor cross-section – Output [mm²] | 9 x 2,5 - 16 (1 pole) |
