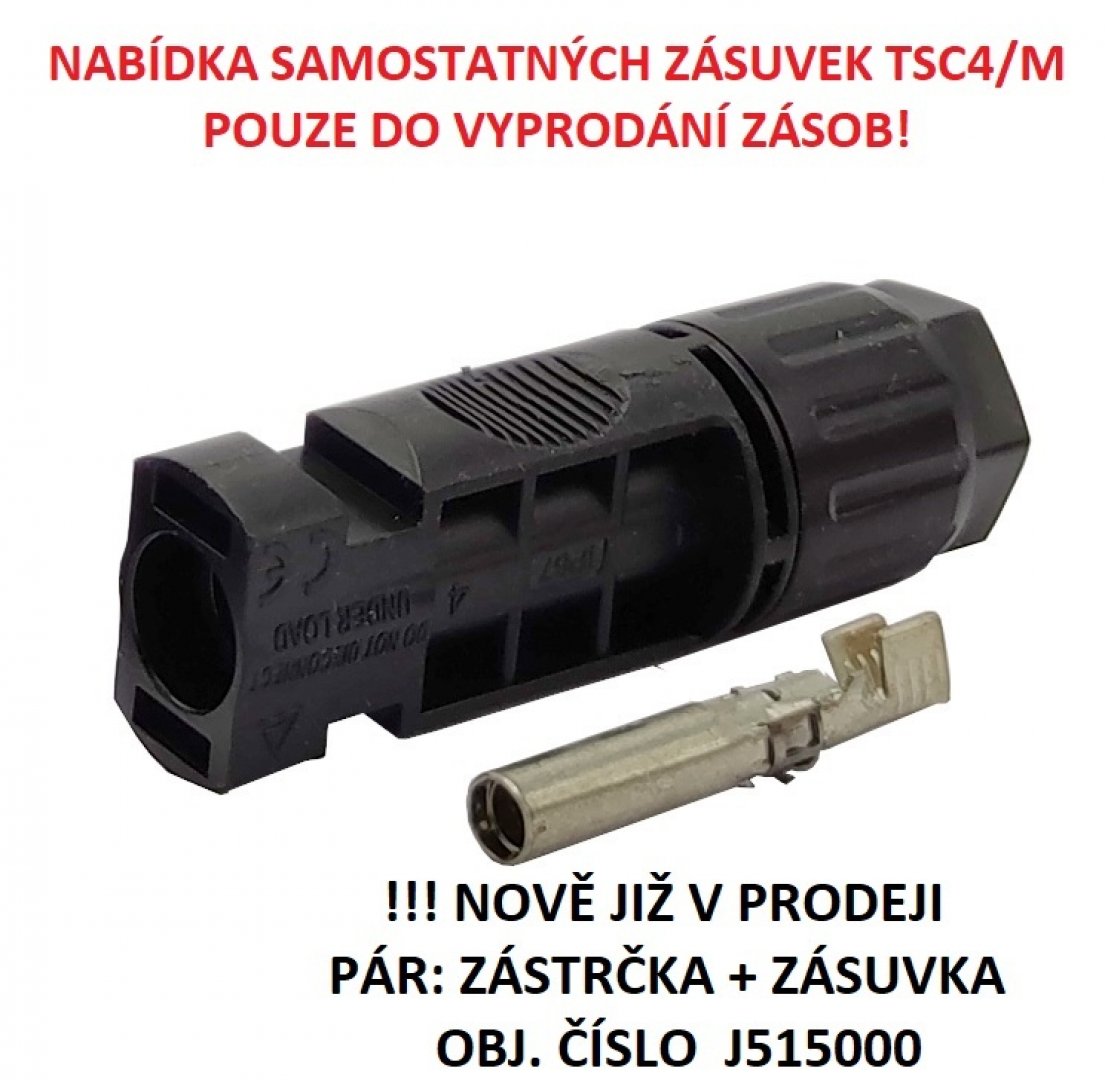

TSC4/M - PV Solar Straight Connector - female (MC 4 for PV)
Manufacturer Code: J515020
1,23 € without VAT 1,48 € with VAT
TSC4/M - PV Solar Straight Connector - female (MC 4 for PV)
| Rated Current [A] | 25 (for conductor 2,5 mm²) / 30 (for conductor 4 a 6 mm²) |
| Rated Voltage [V] | 1500 V DC |
| Conductor cross-section [mm²] | 2,5 ÷ 6 (solid and finely stranded conductor) |
| RMS Test Voltage [V] | 8 000 |
| Impulse withstand Voltage [V] | 16 000 |
| IP code | 67 |
| Ambient Temperature [°C] | -40 ÷ +85 |
| Max. Operating Temp. [°C] | +110 |
| Polution Degree | 3 |
| Contact Resistance [mΩ] | ≤ 0,25 |
| Insertion Force [N] | ≤ 50 |
| Withdrawal Force [N] | ≥ 50 |
| Locking System | Snap In |
| With NEC 2014 | NO |
| Tool to open | - |
| Wire connection tool | Crimping tool |
| Dimensions [mm] ( length / diameter) | 57,5 / 15 |
| Weight [g] | 9,2 |
| Packing [pcs] | 1 |
| Note | TSC connectors are designed for connecting solar panels. The wire is connected by pressing (crimping). The connectors meet the MC4 standard. |
