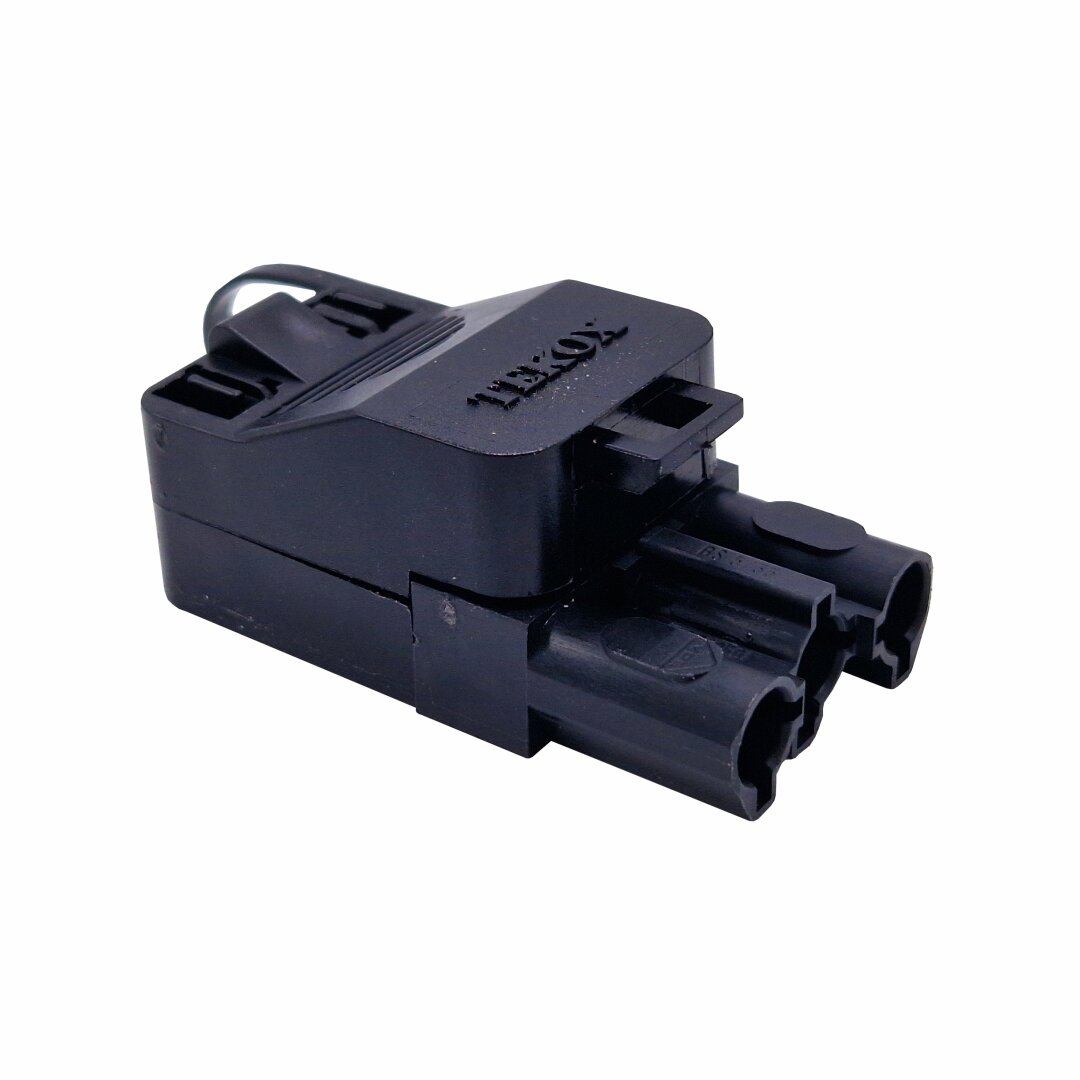

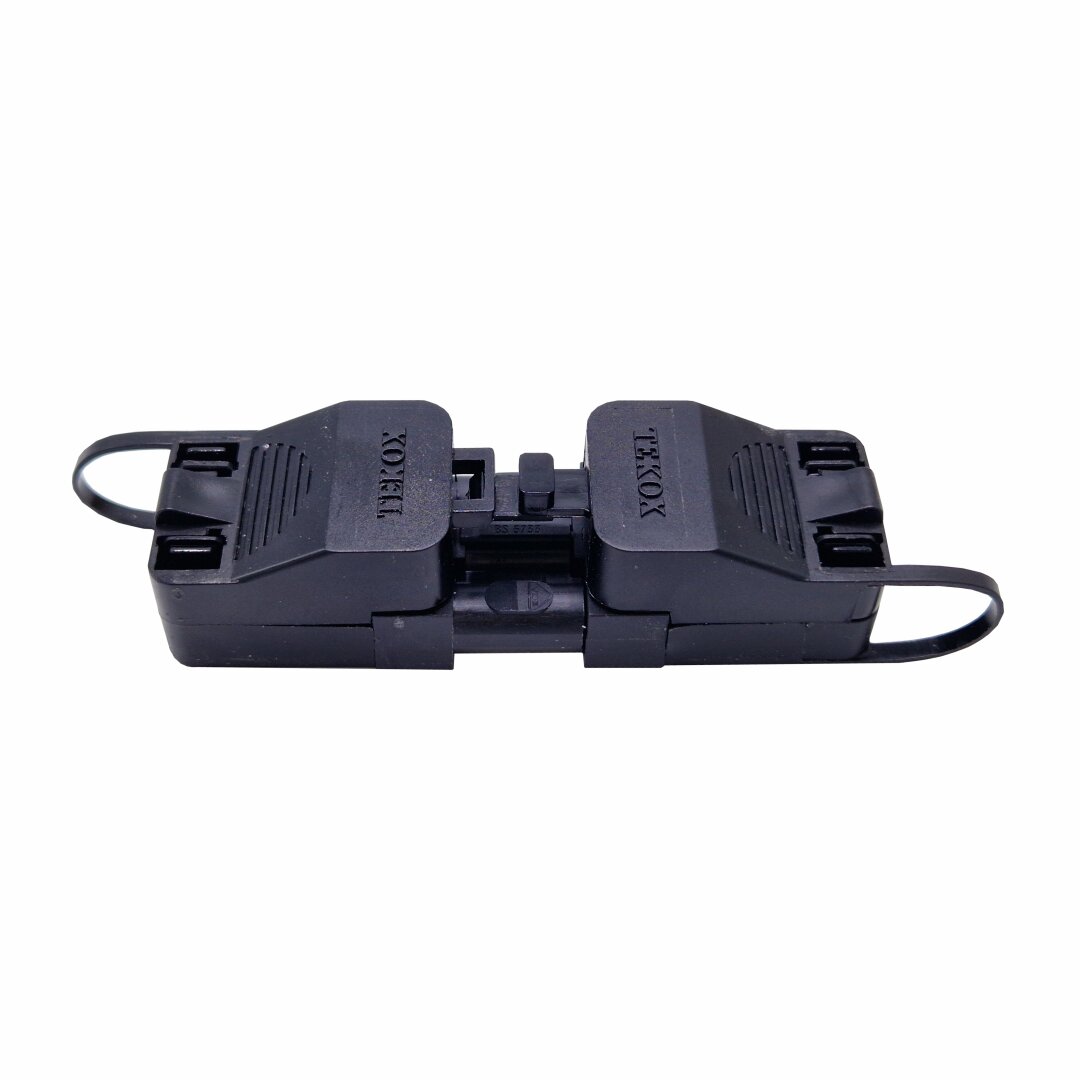

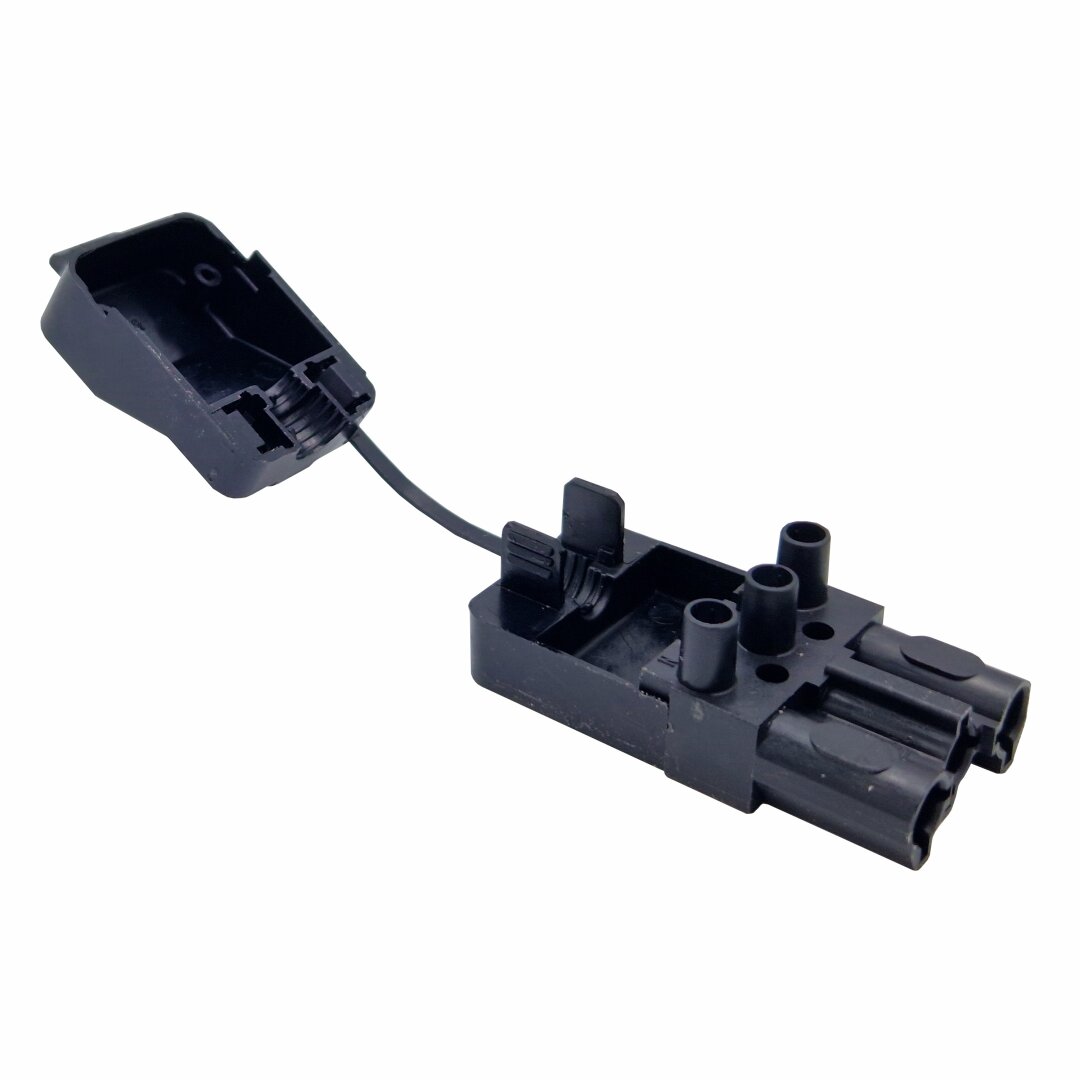

Socket set screwless cover with locking device BCS-3T/H2-N
Manufacturer Code: J386061
1,75 € without VAT 2,12 € with VAT
Socket set screwless cover with locking device BCS-3T/H2-N
| Connection | Screw |
| Voltage [V] | 250 |
| Intensity [A] | 16 |
| Connection capacity [mm²] | 0,5 ÷ 2,5 (input) |
| Tightening torque [Nm] | 0,5 |
| Stripping length [mm] | 7 |
| Operating temperature [°C] | < 110 |
| Clamping units | 1 x Screw (input / output) |
| Number of poles | 2 + Earth |
| Dimensions [mm] (width / height / length) | 28 / 23 / 55,5 |
| Color | Black |
