Terminal block RSA PE 4 A
Manufacturer Code: A531231
1,94 € without VAT 2,35 € with VAT
Terminal block RSA PE 4 A
| Rated cross-section conductor [mm²] | 4 |
| Connection capacity [mm²] | 0,5 ÷ 6 |
| Short-time withstand voltage [A] | 480 |
| Rated impulse withstand voltage [V] | 4000 |
| Tightening torque [Nm] | 0,5 |
| Tools | Screwdriver PH 0 |
| Assembly method (on DIN rail) | TH 35 |
| Pollution degree | 2 |
| Operating temperature [°C] | -40 - +105 |
| Number of clamping points per level | 2 |
| Number of levels | 1 |
| End cover plate required | NO |

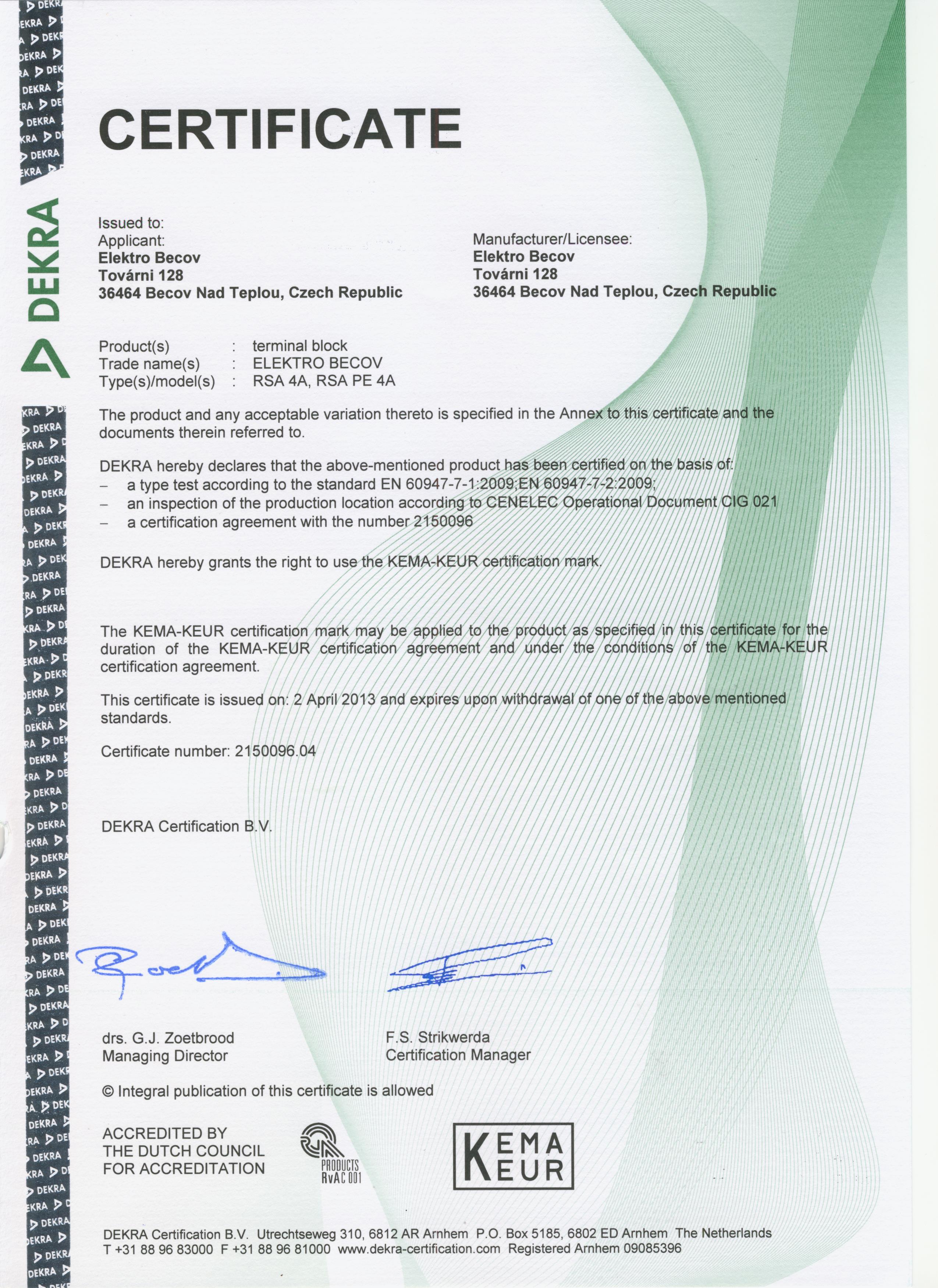

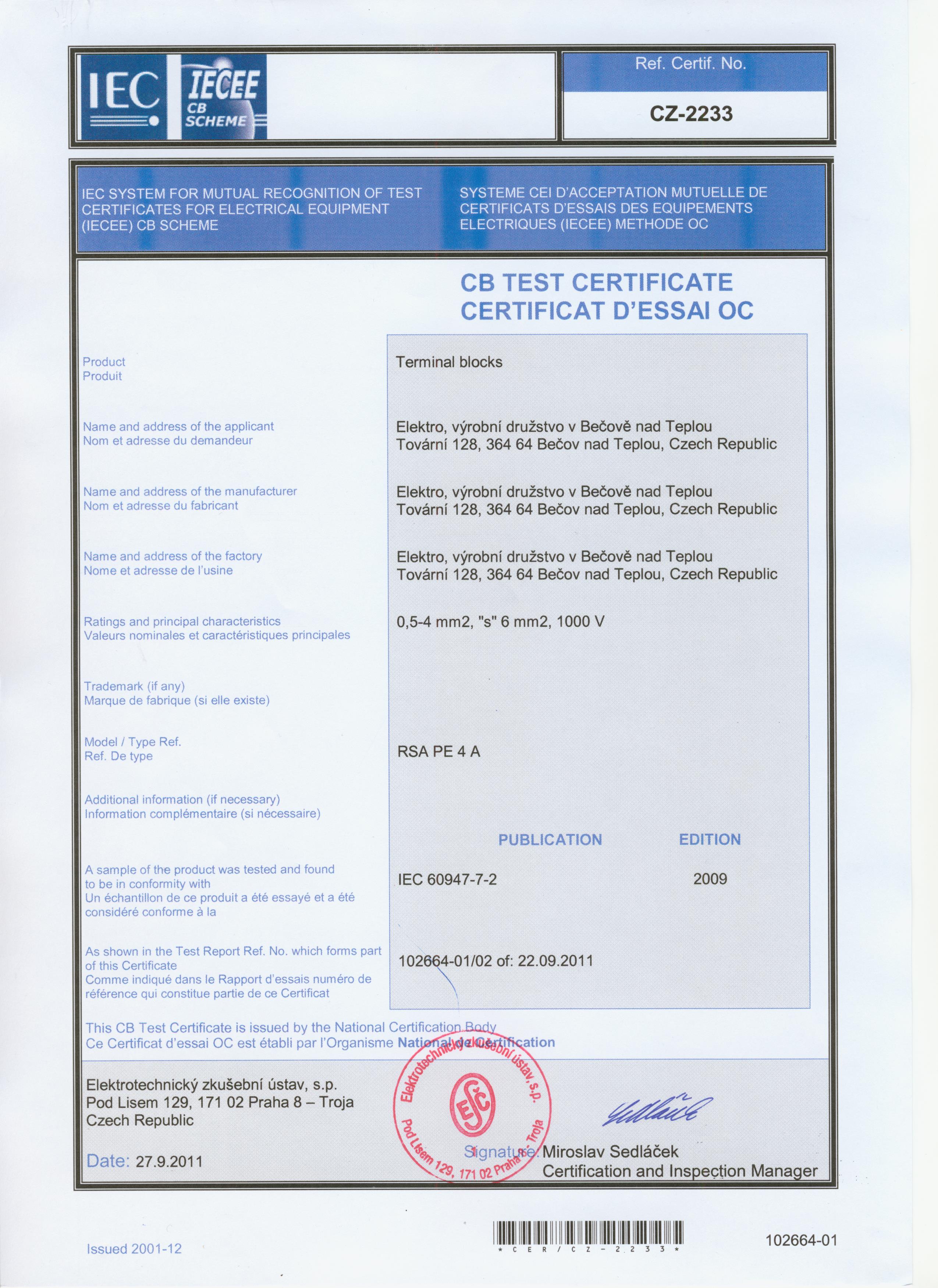

| Testing | ČSN EN 60947-7-2 |
| Dimensions [mm] (width / height / length) | 7,4 / 39,4 / 48 |
| Weight [g] | 25 |
| Packing [pcs] | 20 |
| Clamping screw | M 3x5,1 |
| Solid conductor [mm²] | 0,5 - 6 |
| Stranded conductor [mm²] | 0,5 - 4 |
| Finely stranded [mm²] | 0,5 - 4 |
| Maximum conductor connection cross-section, finely stranded with wire-end ferrules with plastic collar [mm²] | 2,5 |
| Stripping length [mm] | 10 |
| Maximum outer diameter of the ferrule [mm] | 3,6 |
| Recommended length of the ferrule [mm] | 10 |
| Insulating body | Polyamide PA 6, flammability V0 halogen free |
| Electric conductive part | Brass (galvanic surfaced) |
| Fixing part | Thermally treated steel (galvanic surfaced) |
