Terminal block RSA 6 A red
Manufacturer Code: A141161
0,76 € without VAT 0,92 € with VAT
Terminal block RSA 6 A red
| Rated cross-section [mm²] | 6 |
| Rated current [A] | 41 |
| Short-time withstand current [A] | 720 |
| Insulation voltage Ui [V] | 1000 |
| Impulse voltage U (Imp) [V] | 8000 |
| Tightening torque [Nm] | 0,8 |
| Tools | Screwdriver PH 1 / 0,8 x 4 |
| Assembly method (on DIN rail) | TH 35 |
| Pollution degree | 2 |
| IP code | 20 |
| Operating temperature [°C] | -40 - +105 |
| Number of clamping points per level | 2 |
| Number of levels | 1 |
| End cover plate required | YES |

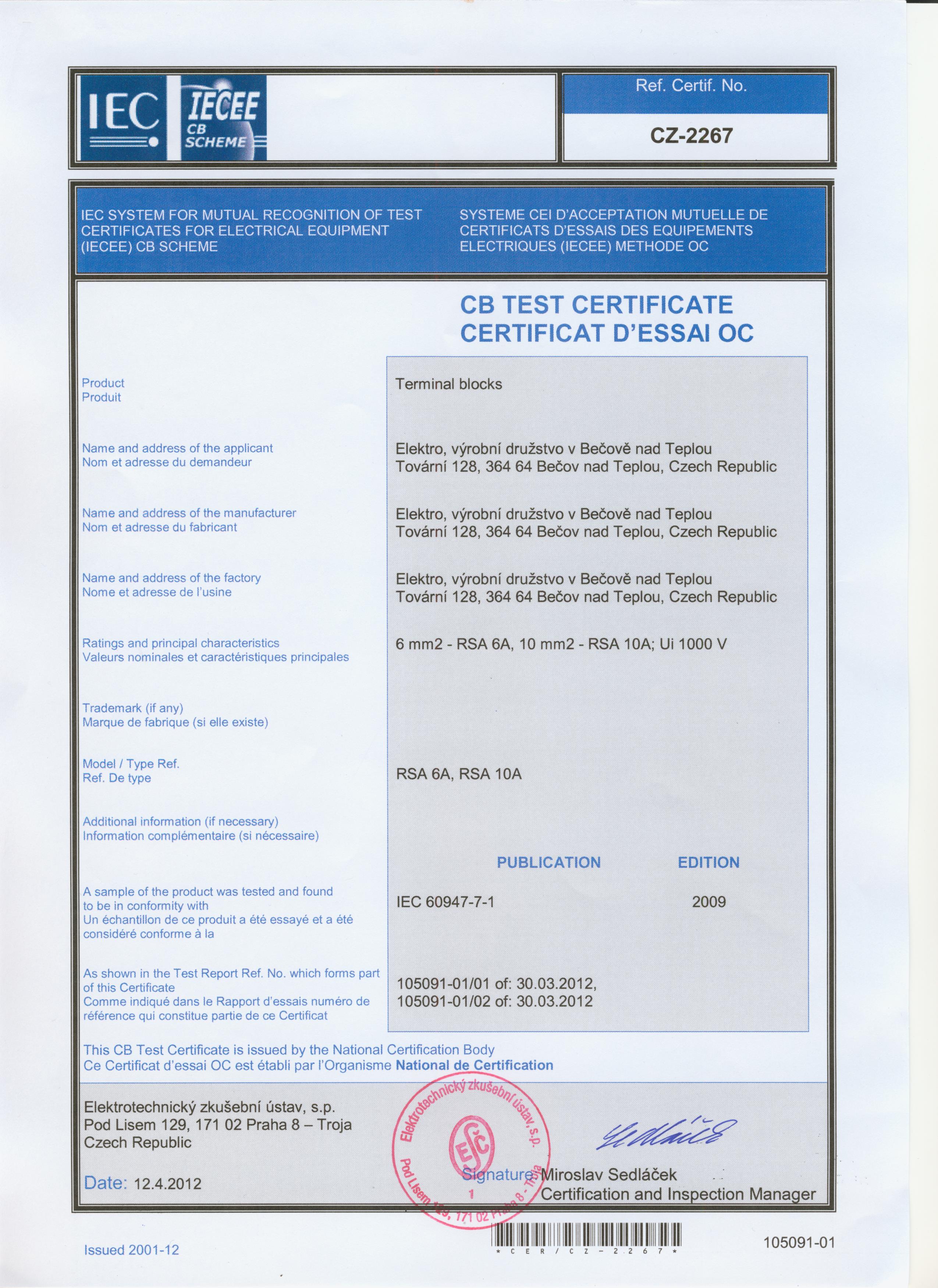

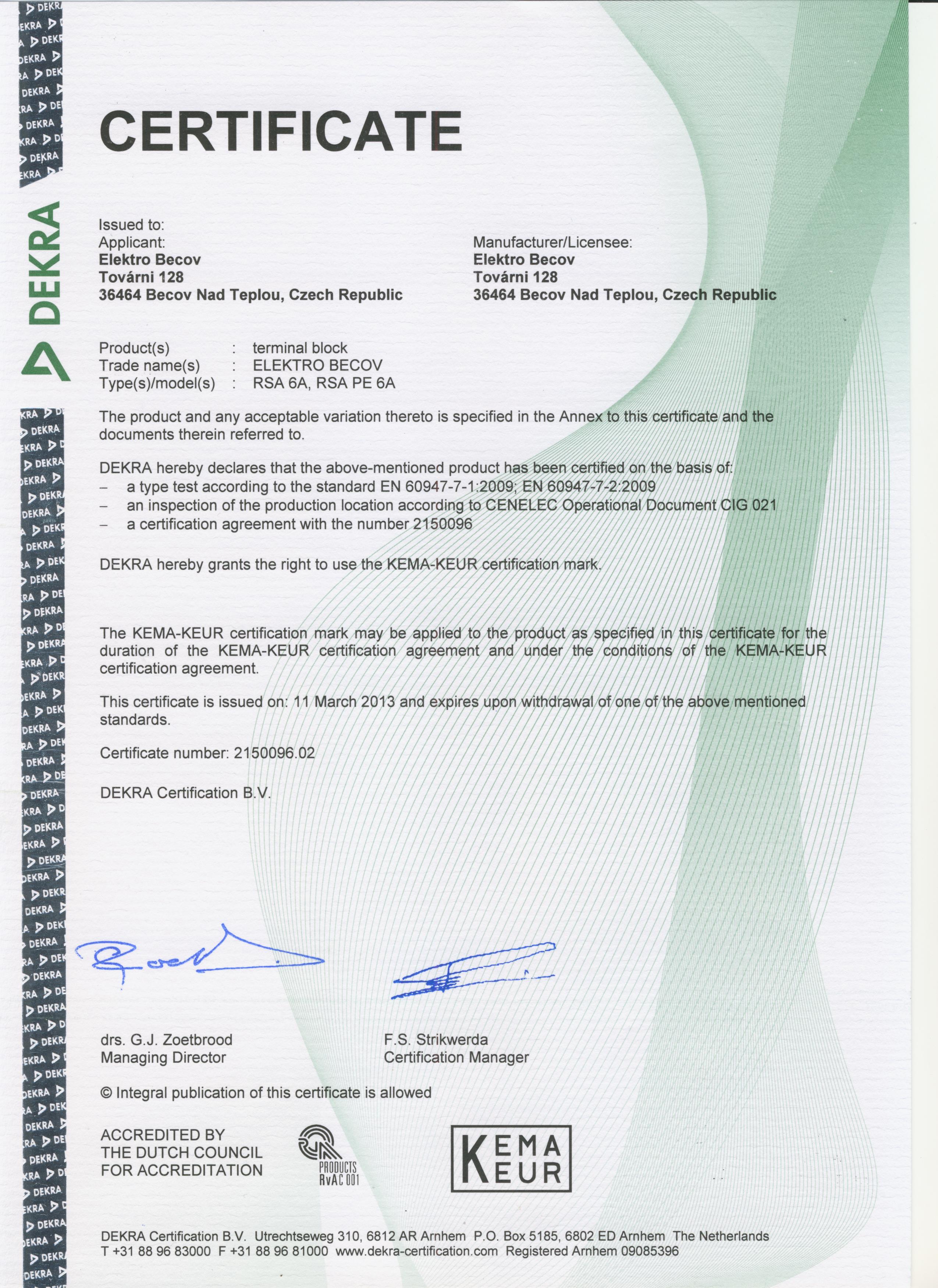

| Testing | ČSN EN 60947-7-1 |
| Dimensions [mm] (width / height / length) | 8 / 45,2 / 50 |
| Weight [g] | 14 |
| Packing [pcs] | 100 |
| Clamping screw | M 3,5 x 8,8 |
| Note | To meet and comply with legislative and safety requirements when installing RSA 6 A and RSA 10 A interconnections, it is necessary to use side partitions. |
| Solid conductor [mm²] | 0,5 - 10 |
| Stranded conductor [mm²] | 0,5 - 10 |
| Finely stranded conductor [mm²] | 0,5 - 6 |
| 2 x Solid conductor, stranded, finely stranded [mm²] | 2,5 |
| 3 x Solid conductor, stranded, finely stranded [mm²] | 0,5 - 1,5 |
| Maximum conductor connection cross-section, fi nely stranded with wire-end ferrules with plastic collar [mm²] | 6 |
| Stripping length [mm] | 12 |
| Insulating body | Polyamide PA 6, flammability V0 halogen free |
| Electric conductive part | Copper (galvanic surface) |
| Fixing part | Thermally treated steel (galvanic surfaced) |
